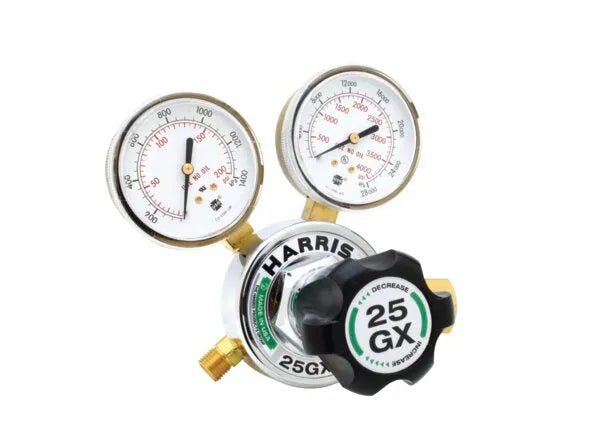

Harris 25GX-145-326 Single Stage Nitrous Oxide Regulator - 3000513
Model 25GX Single Stage Nitrous Oxide Regulator is designed to be the next generation workhorse of the Harris industrial line. It features larger, easy-to-read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants.
Features
- High end features for economical price
- Workhorse of Harris industrial Regulator line
- Ergonomic ABS plastic knob for easy grip and precise adjustment
- Brass body and chrome-plated zinc bonnet for longer service life
- Neoprene diaphragm for better pressure control
- 2.5" Steel dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- UL listed
Specifications
Equipment
Adjusting Knob | ABS plastic |
Body | Brass |
Bonnet | Chrome plated zinc |
Certification | CGA E-4 UL® listed |
Cv | 0.17 |
Delivery Pressure Gauge (PSIG) | 200 |
Delivery Pressure Range (PSIG) | 0 - 145 |
Diaphragm | Neoprene |
Duty | Medium to heavy |
Gas / Gas Service | Nitrous Oxide |
Gauges | 2.5" Steel dual scale |
Inlet Connection | |
Maximum Inlet Pressure (PSIG) | 3000 |
Nozzle | Brass |
Outlet Connection | 9/16" - 18 RH (M) |
Pressure Regulation PSIG/100 PSIG | 0.20 psig |
Recommended Items/Accessories | Steel Gauge Guard - Red (Fuel) - PN 4300238 Steel Gauge Guard - Green (Oxygen) - PN 4300239 |
Seat | PTFE Teflon® |
Supply Pressure Gauge (PSIG) | 4000 |
Warranty
Warranty | 7 Years |
Specifications
Adjusting Knob | ABS plastic |
Body | Brass |
Bonnet | Chrome plated zinc |
Certification | CGA E-4 UL listed |
Cv | 0.17 |
Delivery Pressure Gauge (PSIG) | 200 |
Delivery Pressure Range (PSIG) | 0 - 145 |
Diaphragm | Neoprene |
Duty | Medium to heavy |
Gas / Gas Service | Nitrous Oxide |
Gauges | 2.5" Steel dual scale |
Inlet Connection | 0 - 145 |
Maximum Inlet Pressure (PSIG) | 3000 |
Nozzle | Brass |
Outlet Connection | 9/16" - 18 RH (M) |
Pressure Regulation PSIG/100 PSIG | 0.20 psig |
Recommended Items/Accessories | Steel Gauge Guard - Red (Fuel) - PN 4300238 Steel Gauge Guard - Green (Oxygen) - PN 4300239 |
Seat | PTFE Teflon |
Supply Pressure Gauge (PSIG) | 4000 |
