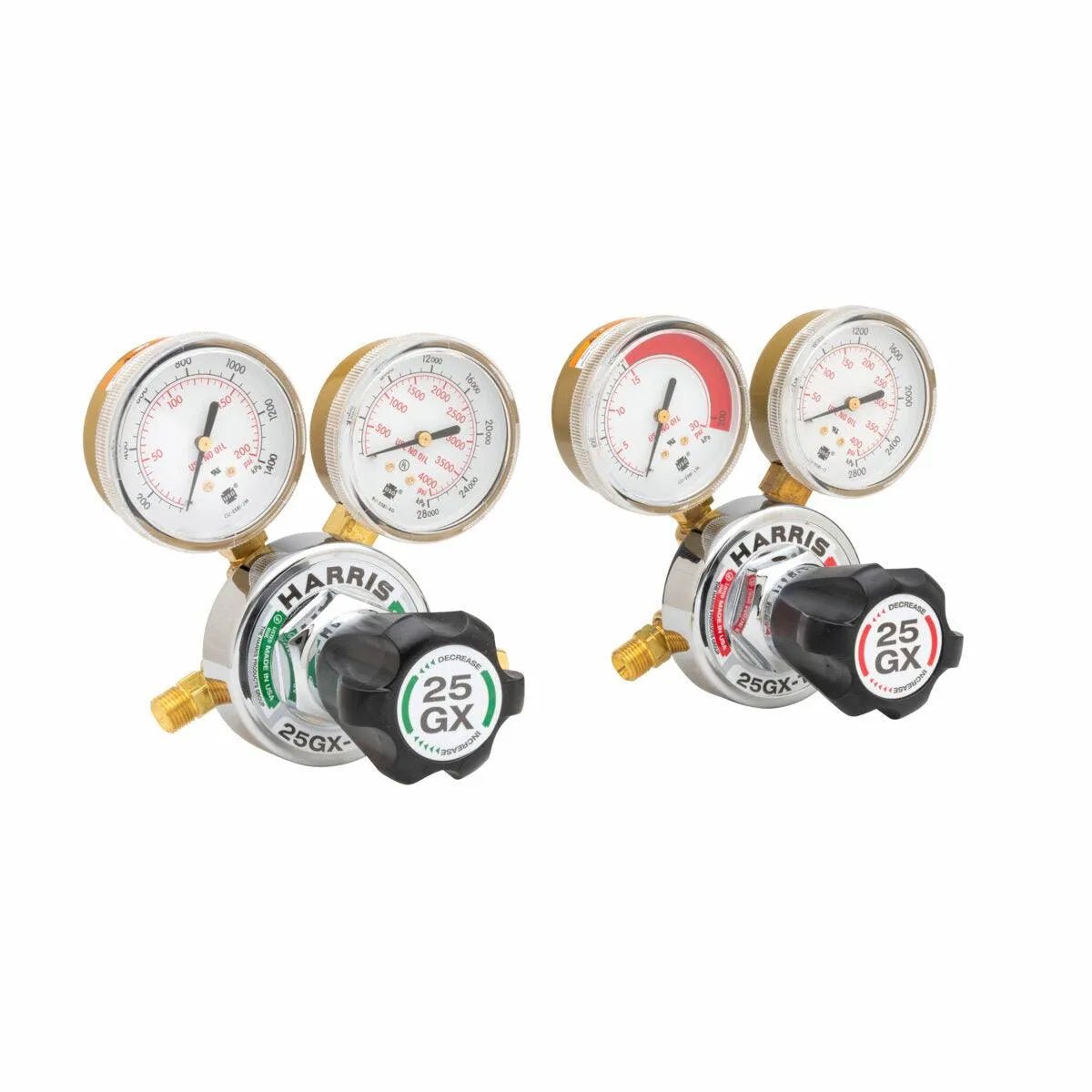

Model 25GX Single Stage Regulator is designed to be the next generation workhorse of the Harris industrial line. It features large, easy-to-read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants. Conveniently packaged in clamshell for point-of-purchase display.
Features
• High end features for economical price makes it a good value
• Workhorse of Harris industrial Regulator line
• Ergonomic ABS plastic knob for easy grip and precise adjustment
• Brass body and electroless nickel-plated brass bonnet for longer service life
• Neoprene diaphragm for improved pressure control
• 2.5 in. Steel dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
• UL listed
| Adjusting Knob | ABS black plastic |
| Body | Brass |
| Bonnet | Electroless nickel-plated brass zinc |
| Certification | CGA E-4 UL listed |
| Cv | 0.17 |
| Delivery Pressure Gauge (PSIG) | 30RZ 200 |
| Delivery Pressure Range (PSIG) | 0 - 15 0 - 145 |
| Diaphragm | Neoprene |
| Duty | Medium to heavy |
| Gas / Gas Service | Acetylene Oxygen |
| Gauges | 2.5 in. Steel dual scale |
| Inlet Connection | CGA 300 CGA 540 |
| Maximum Inlet Pressure (PSIG) | 500 3000 |
| Nozzle | Brass |
| Outlet Connection | 9/16 in. - 18 LH 9/16 in. - 18 RH |
| Pressure Regulation PSIG/100 PSIG | 0.2 |
| Recommended Items/Accessories | Steel Gauge Guard - Red (Fuel) - PN 4300238 Steel Gauge Guard - Green (Oxygen) - PN 4300239 |
| Seat | PTFE Teflon |
| Supply Pressure Gauge (PSIG) | 400 4000 |
•
