Harris 25GX-250-580 HVAC Purging Single Stage Pressure Regulator - 3000616

SKU: 3000616
$133.07 $186.49
Financing / Leasing Available

Welding Equipment & Industrial Supply Financing

WeldingMart has partnered with Clicklease to offer fast, flexible financing for welding equipment and industrial supplies. Get the equipment you need with affordable monthly payments tailored to your budget.

Whether you're purchasing a new MIG welder, TIG welder, engine-driven welder, or welding accessories, our financing solutions help you equip your shop without large upfront costs. We offer lease-to-own options on trusted brands like Lincoln Electric, Miller Electric, and more.

Apply in minutes and get a decision in seconds:

  • No hard credit check
  • No lengthy paperwork
  • Fast approvals

Why Choose Lease-to-Own Welding Equipment?

Lease-to-own financing gives you the flexibility to grow your business while preserving cash flow.

Key benefits include:

  • Low upfront cost – Start using equipment without a large initial investment
  • Flexible terms – Choose payment plans that fit your budget
  • Access to latest technology – Stay competitive with modern welding equipment
  • Ownership options – Buy the equipment, upgrade, or return it at the end of the lease

You also have the option to purchase your equipment early, including within the first 12 months.

Tax Advantages

In many cases, lease payments for business-use equipment may be tax-deductible. This can reduce your overall cost and free up capital for additional tools, supplies, or labor.

(Consult your tax advisor for details.)

Apply in Minutes

Financing is available 24/7, so you can apply whenever it’s convenient.

  • Application takes about 4 minutes
  • Instant decision in most cases
  • Immediate access to eDocs
  • Order your equipment right away

If approved for more than your initial request, you can easily adjust your financing to include additional items.

Need Help?

Have questions about financing or lease-to-own options?

Contact the WeldingMart team — we’re here to help you find the right solution for your business. 877-532-9353.


Harris - Model 25GX-500-580 HVAC single stage nitrogen purging regulator
Gas Type: Argon, Helium, Nitrogen
Inlet: CGA 580
Outlet: 1/4 in. 45◦ Flare SAE CGA 165
Certification: CGA E-4
Overview

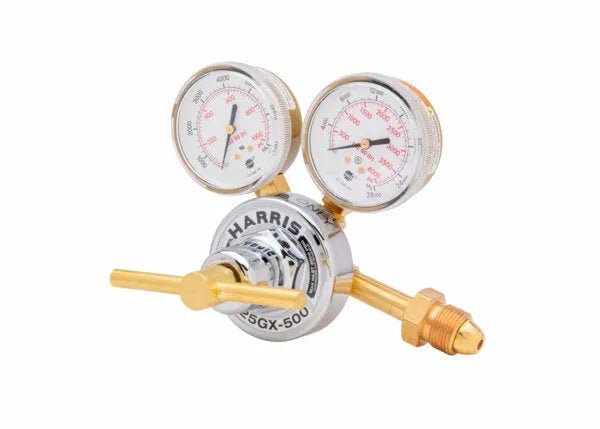

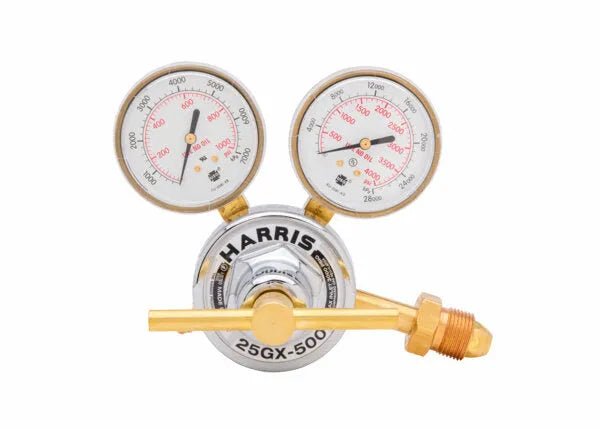

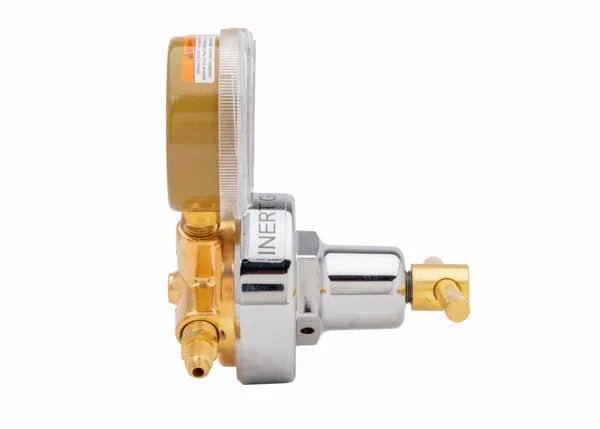

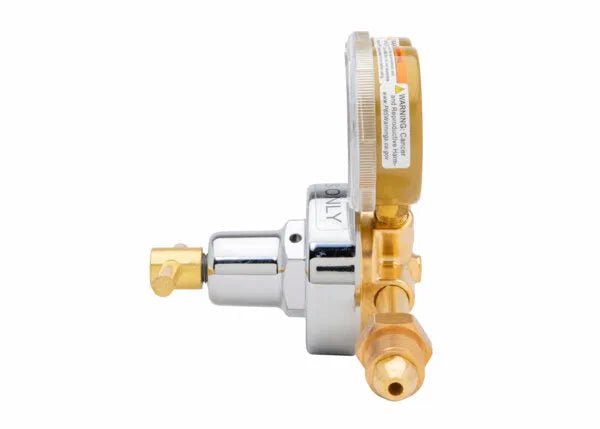

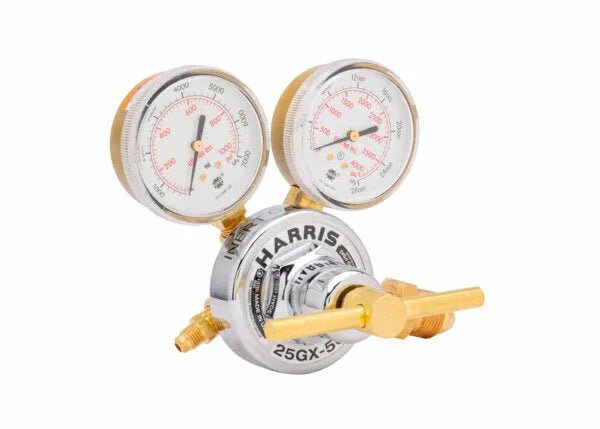

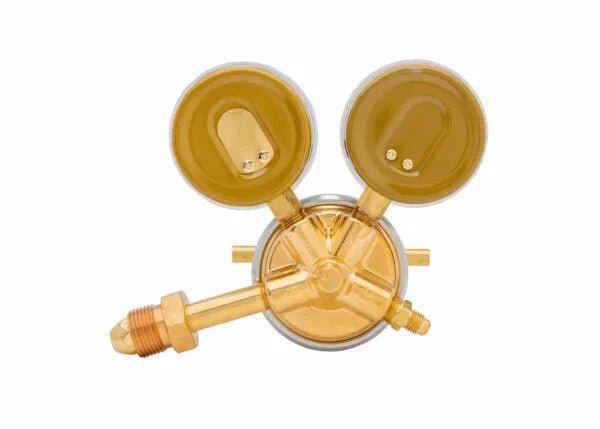

Harris 25GX-250-580 HVAC Purging Single Stage Pressure Regulator - 3000616

Harris Model 25GX Single Stage nitrogen purging Regulator is designed for performance and economy, but with features typically available in more expensive Harris Models. It is specifically designed for HVAC and other nitrogen pressure testing and blanketing applications. It features a T-screw for easier adjusting at high pressures. Conveniently packaged in clamshell for point-of-purchase display.

Features
  • High end features for economical price
  • Designed for HVAC and other nitrogen pressure testing and blanketing applications
  • Brass T-screw adjusting handle for easier adjustment at high pressures
  • Brass body and electroless nickel-plated zinc bonnet for longer service life
  • Neoprene diaphragm for improved pressure control
  • 2.5 in. Steel dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • Conveniently packaged in clamshell for point-of-purchase display

Specifications
Adjusting Screw Brass T-screw
Body Brass
Bonnet Electroless nickel-plated zinc
Certification CGA E-4
Cv 0.17
Delivery Pressure Gauge (PSIG) 400
Delivery Pressure Range (PSIG) 0 - 250
Diaphragm Neoprene
Duty Medium to heavy
Gas / Gas Service Argon
Helium
Nitrogen
Gauges 63mm Gold painted steel dual scale (psi/kPa)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Nozzle Brass
Outlet Connection 1/4 in. 45◦ Flare SAE CGA 165
Pressure Regulation PSIG/100 PSIG 0.2
Recommended Items/Accessories Steel Gauge Guard - Red (Fuel) - PN 4300238
Steel Gauge Guard - Green (Oxygen) - PN 4300239
Seat PTFE Teflon
Supply Pressure Gauge (PSIG) 4000
Typical Application HVAC purging, Pressure testing, Blanketing
Specifications
FeatureValue
Gas / GasService Argon; Helium; Nitrogen
Adjusting Screw Brass T-screw
Body Brass
Bonnet Electroless nickel-plated zinc
Cv 0.17
Delivery Pressure Gauge (PSIG) 400
Delivery Pressure Range (PSIG) 0 - 250
Diaphragm Neoprene
Duty Medium to heavy
Gauges 63mm Gold painted steel dual scale (psi/kPa)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Nozzle Brass
Outlet Connection 1/4 in. 45◦ Flare SAE CGA 165
Pressure Regulation PSIG/100 PSIG 0.2
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4000
Typical Application HVAC purging, Pressure testing, Blanketing
Includes
  • Harris - Model 25GX-250-580 HVAC Purging Single-Stage Pressure Regulator
