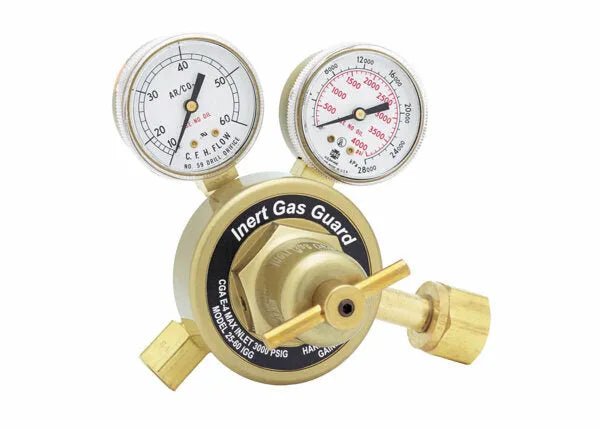

Harris 25GX-40-IGG-580 Inert Gas Guard Argon/Co2 Regulator - 3000433
Model 25GX inert gas guard Regulator is a special Cylinder-mounted flowgauge Regulator for Argon and Argon-mix shielding gases, now with a brass plated bonnet. These are designed to save shielding gases by controlling surge. Models are available for MIG and TIG.
Features
- Special Cylinder-mounted flowgauge Regulators for Argon and Argon-mix shielding gases
- Designed to save shielding gases by controlling surge
- Brass "T" screw adjusting handle for easier adjustment at high pressures
- Brass body and brass-plated bonnet for longer service life
- Neoprene diaphragm for better pressure control
- 2" Steel dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- UL listed
Specifications
Equipment
| Adjusting Screw | Brass "T" screw handle |
| Body | Brass |
| Bonnet | Brass-plated |
| Certification | CGA E-4 UL® listed |
| Cv | 0.17 |
| Delivery Flow Gauge (SCFH) | 40 |
| Delivery Flow Range (SCFH) | 0 - 40 |
| Diaphragm | Neoprene |
| Duty | Heavy |
| Gas / Gas Service | Arcon Carbon Dioxide |
| Gauges | 2" Steel dual scale |
| Inlet Connection | CGA 580 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Nozzle | Brass |
| Outlet Connection | 5/8" - 18 RH (F) |
| Pressure Regulation PSIG/100 PSIG | 0.20 psig |
| Recommended Items/Accessories | Steel Gauge Guard - Red (Fuel) - PN 4300238 Steel Gauge Guard - Green (Oxygen) - PN 4300239 |
| Seat | PTFE Teflon® |
| Supply Pressure Gauge (PSIG) | 4000 |
Warranty
| Warranty | 7 Years |
