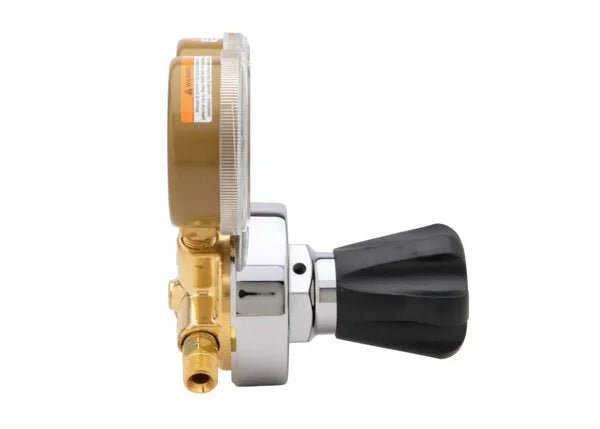

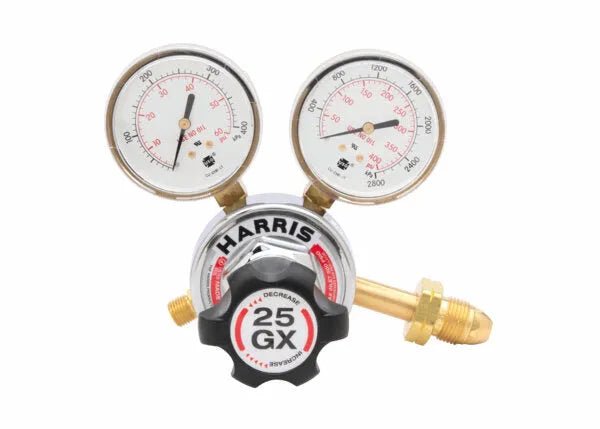

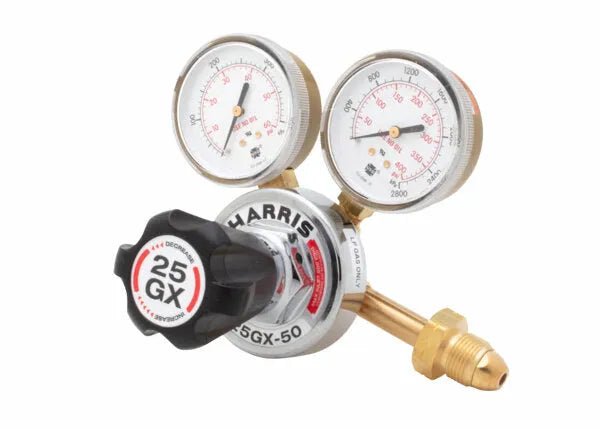

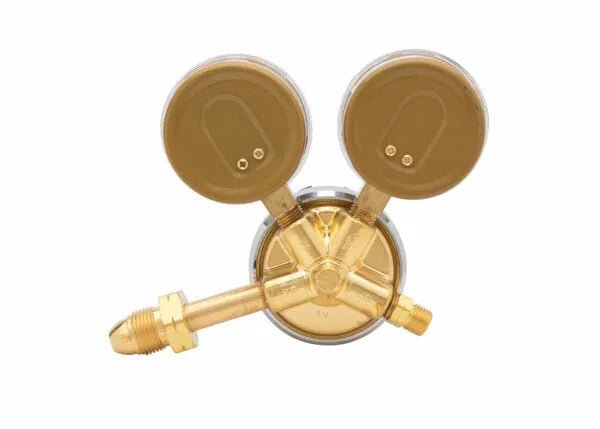

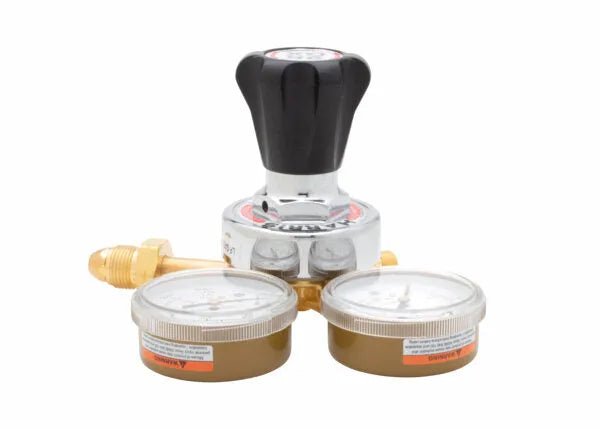

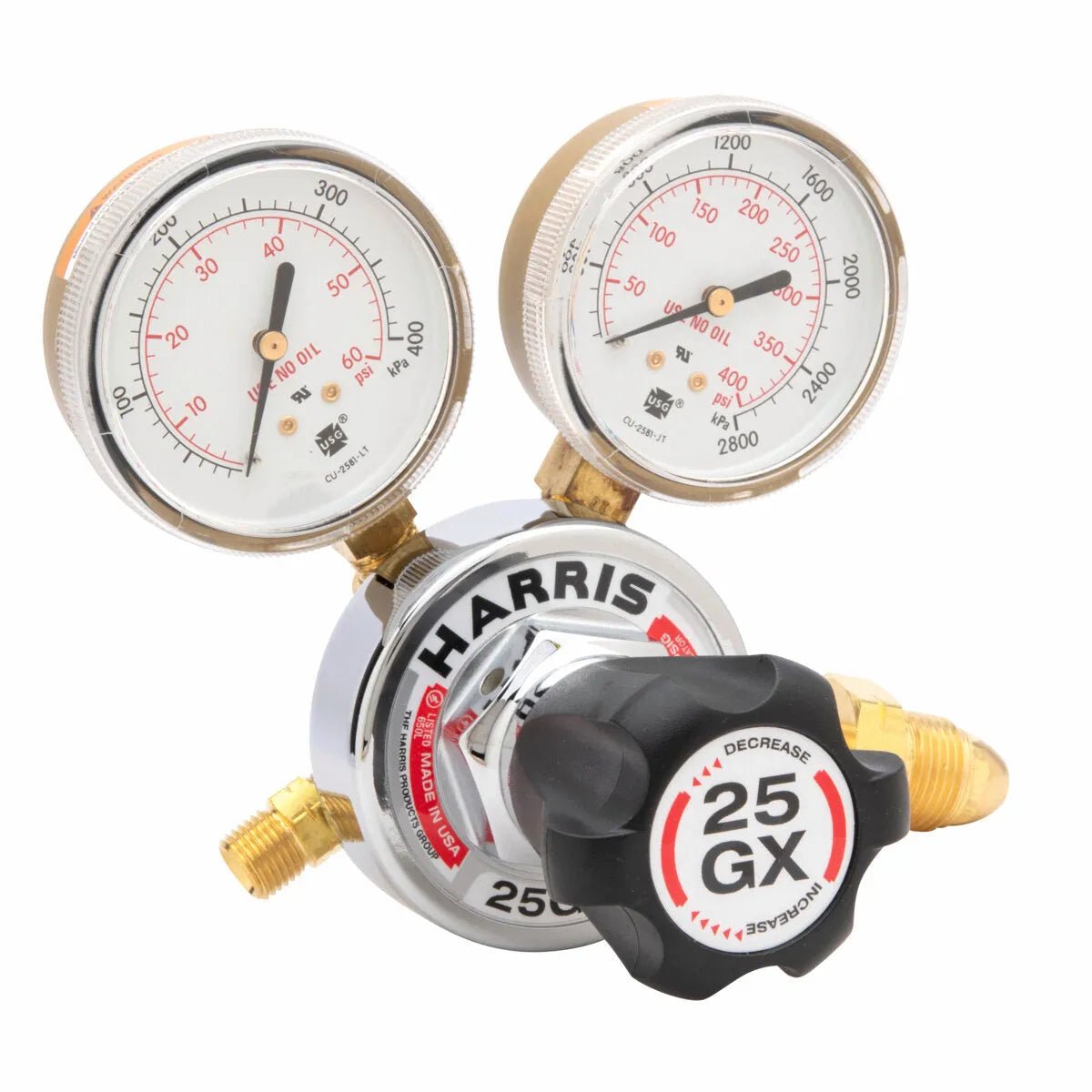

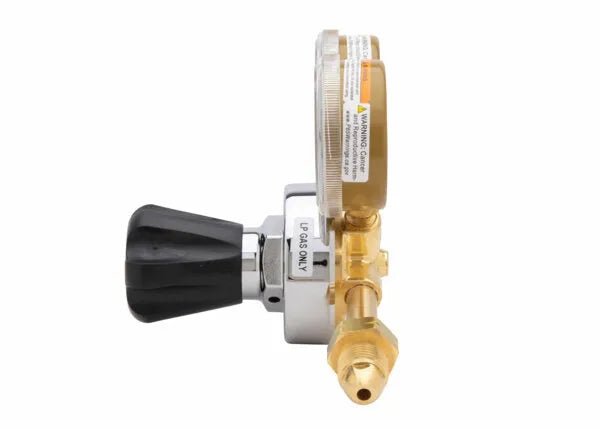

Harris 25GX-50-510P Single Stage Propane Regulator - 3000450
Harris Model 25GX Single Stage Propane Regulator is designed to be the next generation workhorse of the Harris industrial line. It features larger, easy-to-read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants. Can be used with any of the welding grade liquid petroleum gases. NOT FOR USE WITH ACETYLENE.
Features
- High end features for economical price
- Workhorse of Harris industrial Regulator line
- Ergonomic ABS plastic knob for easy grip and precise adjustment
- Brass body and electroless nickel=plated zinc bonnet for longer service life
- Neoprene diaphragm for improved pressure control
- 2.5 in. Steel dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- UL listed
- Designed specifically for propane service, but can be used with any of the other welding grade liquid petroleum gases. NOT FOR USE WITH ACETYLENE
Specifications
Adjusting Knob | ABS plastic |
Body | Brass |
Bonnet | Electroless nickel-plated zinc |
Certification | CGA E-4 UL listed |
Cv | 0.17 |
Delivery Pressure Gauge (PSIG) | 60 |
Delivery Pressure Range (PSIG) | 0 - 50 |
Diaphragm | Neoprene |
Duty | Medium to heavy |
Gas / Gas Service | Propane Propylene MPS |
Gauges | 2.5 in. Steel dual scale |
Inlet Connection | CGA 510P |
Maximum Inlet Pressure (PSIG) | 500 |
Nozzle | Brass |
Outlet Connection | 9/16 in. - 18 LH |
Pressure Regulation PSIG/100 PSIG | 0.2 |
Recommended Items/Accessories | Steel Gauge Guard - Red (Fuel) - PN 4300238 Steel Gauge Guard - Green (Oxygen) - PN 4300239 |
Seat | PTFE Teflon |
Supply Pressure Gauge (PSIG) | 400 |
