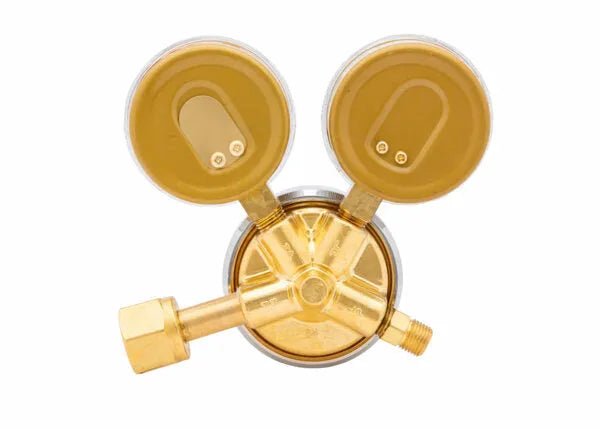

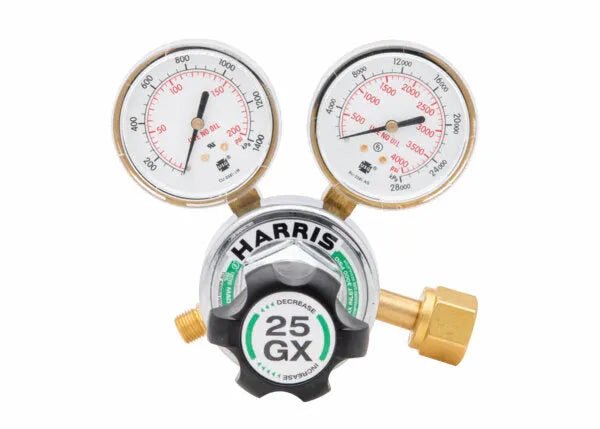

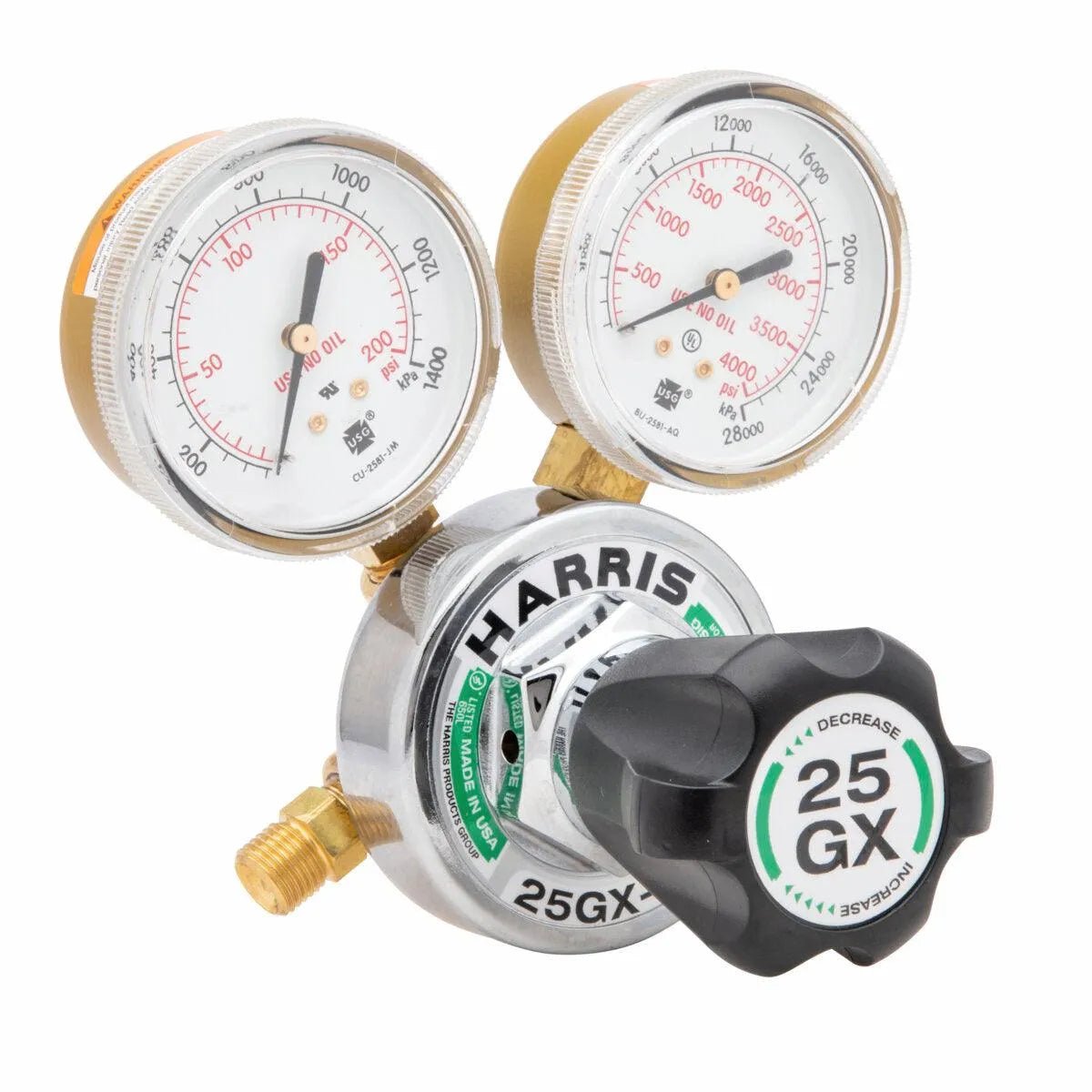

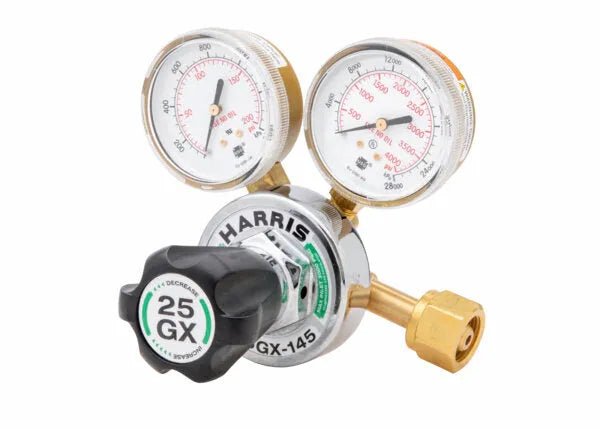

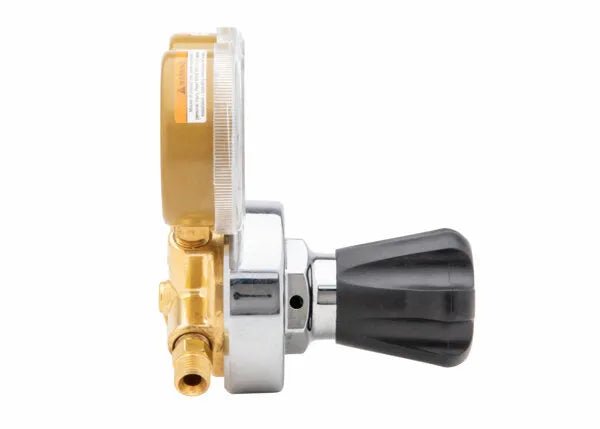

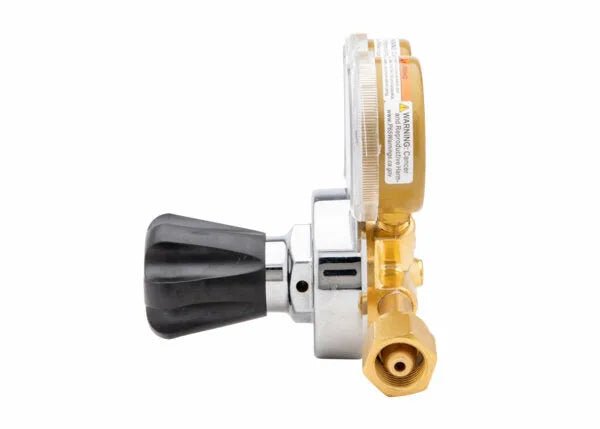

Harris 25GX-50-540 Single Stage Oxygen Regulator - 3000554
Harris Model 25GX Single Stage Regulator is designed to be the next generation workhorse of the Harris industrial line. It features large, easy-to-read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants.
Features
- High end features for economical price
- Workhorse of Harris industrial Regulator line
- Ergonomic ABS plastic knob for easy grip and precise adjustment
- Brass body and electroless nickel-plated brass bonnet for longer service life
- Neoprene diaphragm for improved pressure control
- 2.5 in. Steel dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- UL listed
Specifications
Adjusting Knob | ABS plastic |
Body | Brass |
Bonnet | Electroless nickel-plated zinc |
Certification | CGA E-4 UL listed |
Cv | 0.17 |
Delivery Pressure Gauge (PSIG) | 60 |
Delivery Pressure Range (PSIG) | 0 - 50 |
Diaphragm | Neoprene |
Duty | Medium to heavy |
Gas / Gas Service | Oxygen |
Gauges | 2.5 in. Steel dual scale |
Inlet Connection | CGA 540 |
Maximum Inlet Pressure (PSIG) | 3000 |
Nozzle | Brass |
Outlet Connection | 9/16 in. - 18 LH |
Pressure Regulation PSIG/100 PSIG | 0.2 |
Recommended Items/Accessories | Steel Gauge Guard - Red (Fuel) - PN 4300238 Steel Gauge Guard - Green (Oxygen) - PN 4300239 |
Seat | PTFE Teflon |
Supply Pressure Gauge (PSIG) | 4000 |
