Harris  |  SKU: 3000606

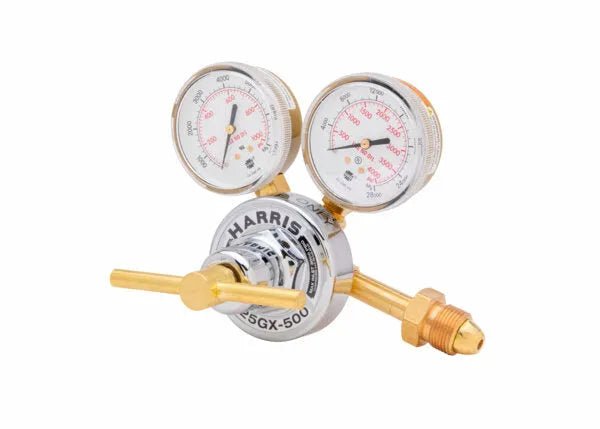

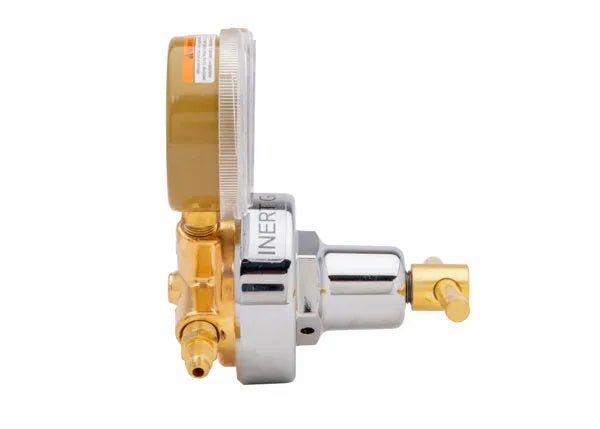

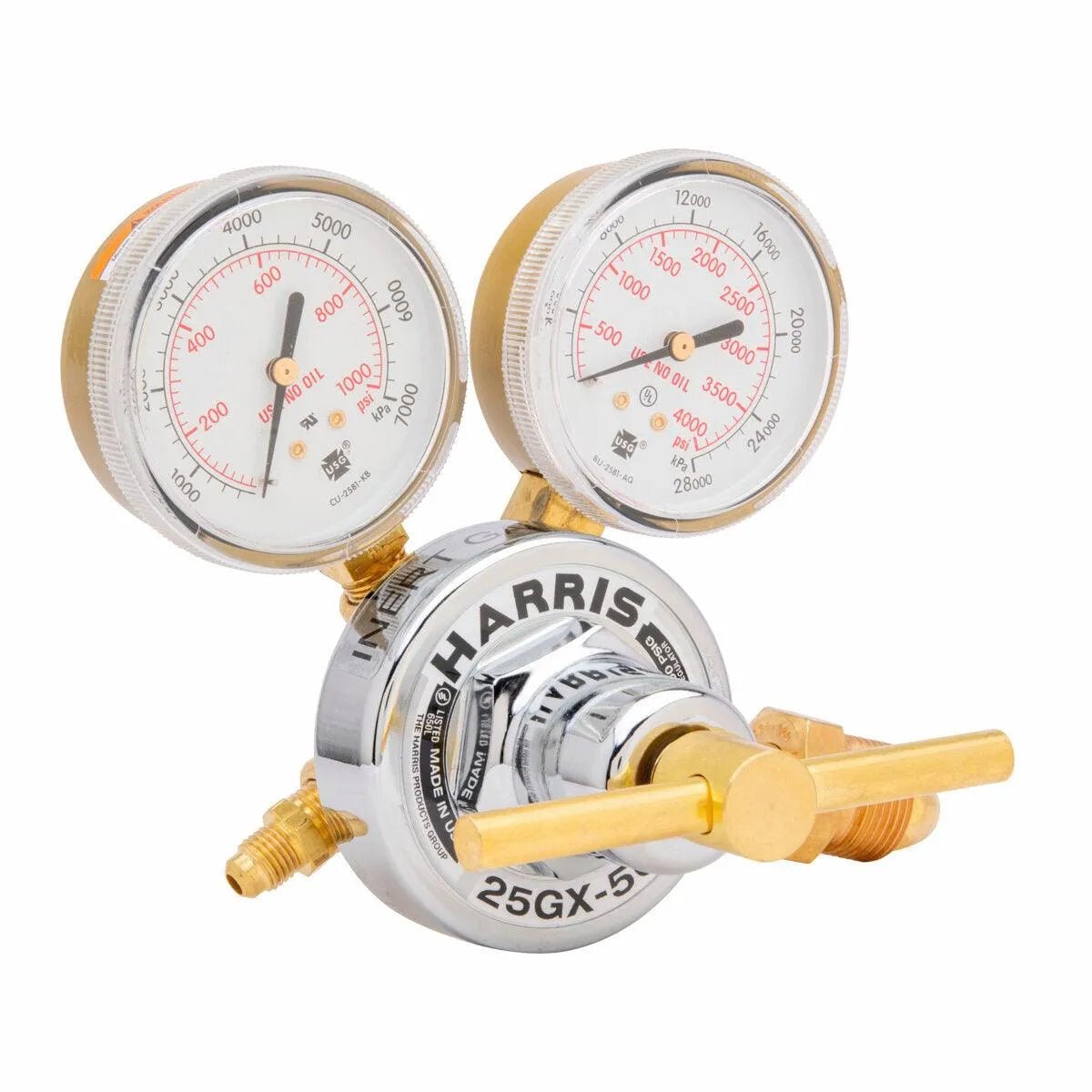

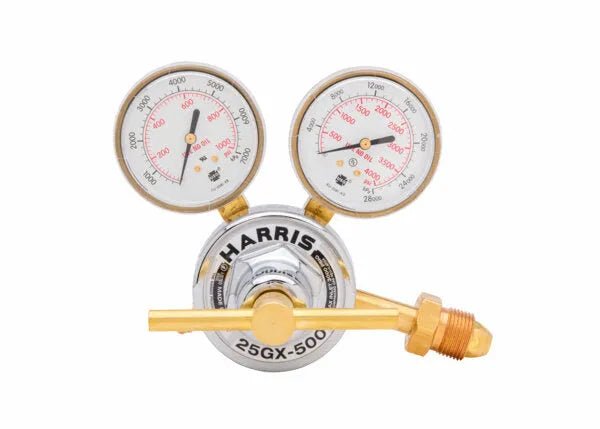

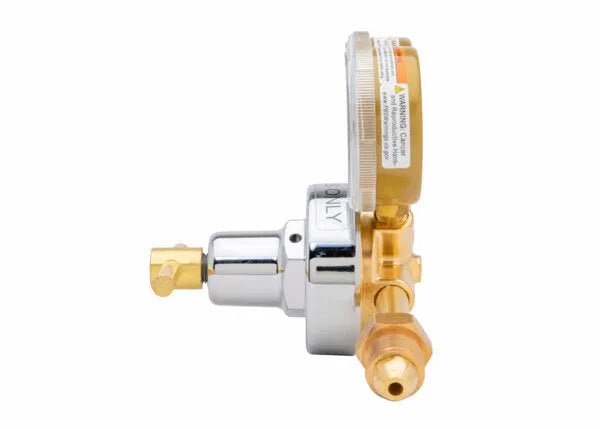

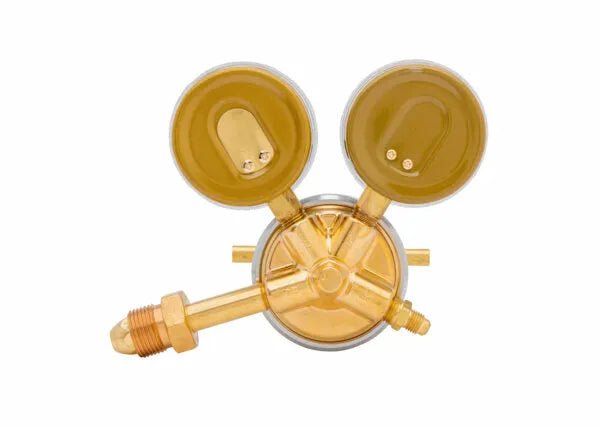

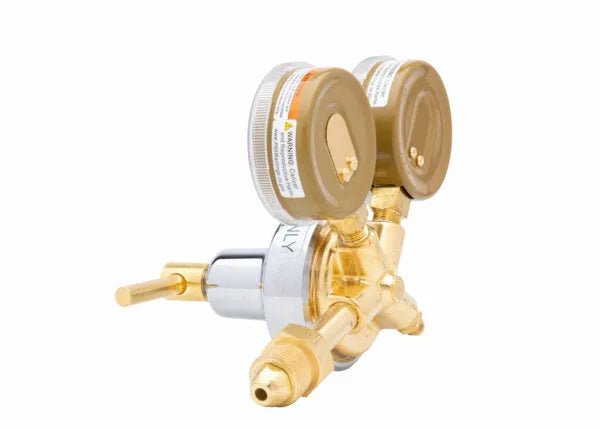

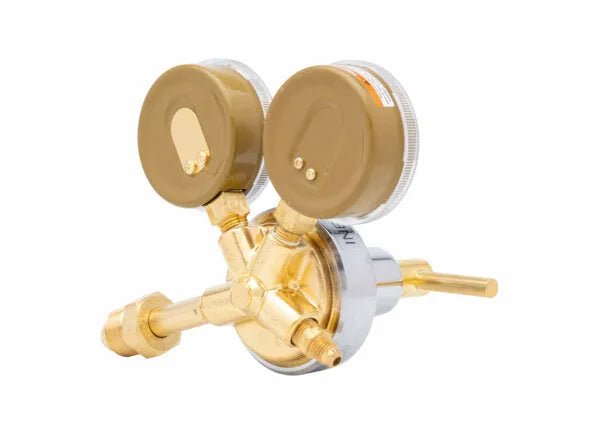

Harris 25GX-500-580 HVAC Purging Single Stage Pressure Regulator - 3000606

$131.87 $236.00
Harris - Model 25GX-500-580 HVAC single stage nitrogen purging regulator
Warranty: 7 Years
Certification: CGA E-4

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Harris 25GX-500-580 HVAC Purging Single Stage Pressure Regulator - 3000606



Harris Model 25GX Single Stage nitrogen purging Regulator is designed for performance and economy, but with features typically available in more expensive Harris Models. It is specifically designed for HVAC and other nitrogen pressure testing and blanketing applications. It features a T-screw for easier adjusting at high pressures. Conveniently packaged in clamshell for point-of-purchase display.

Features
  • High end features for economical price
  • Designed for HVAC and other nitrogen pressure testing and blanketing applications
  • Brass T-screw adjusting handle for easier adjustment at high pressures
  • Brass body and electroless nickel-plated zinc bonnet for longer service life
  • Neoprene diaphragm for improved pressure control
  • 2.5 in. Steel dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • Conveniently packaged in clamshell for point-of-purchase display



Specifications

Adjusting Screw Brass T-screw
Body Brass
Bonnet Electroless nickel-plated zinc
Certification CGA E-4
Cv 0.17
Delivery Pressure Gauge (PSIG) 1000
Delivery Pressure Range (PSIG) 0 - 500
Diaphragm Neoprene
Duty Medium to heavy
Gas / Gas Service Argon
Helium
Nitrogen
Gauges 63mm Gold painted steel dual scale (psi/kPa)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Nozzle Brass
Outlet Connection 1/4 in. 45◦ Flare SAE CGA 165
Pressure Regulation PSIG/100 PSIG 0.2
Recommended Items/Accessories Steel Gauge Guard - Red (Fuel) - PN 4300238
Steel Gauge Guard - Green (Oxygen) - PN 4300239
Seat PTFE Teflon
Supply Pressure Gauge (PSIG) 4000
Typical Application HVAC purging, Pressure testing, Blanketing

Harris 25GX-500-580 HVAC Purging Single Stage Pressure Regulator - 3000606



Harris Model 25GX Single Stage nitrogen purging Regulator is designed for performance and economy, but with features typically available in more expensive Harris Models. It is specifically designed for HVAC and other nitrogen pressure testing and blanketing applications. It features a T-screw for easier adjusting at high pressures. Conveniently packaged in clamshell for point-of-purchase display.

Features
  • High end features for economical price
  • Designed for HVAC and other nitrogen pressure testing and blanketing applications
  • Brass T-screw adjusting handle for easier adjustment at high pressures
  • Brass body and electroless nickel-plated zinc bonnet for longer service life
  • Neoprene diaphragm for improved pressure control
  • 2.5 in. Steel dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • Conveniently packaged in clamshell for point-of-purchase display



Specifications

Adjusting Screw Brass T-screw
Body Brass
Bonnet Electroless nickel-plated zinc
Certification CGA E-4
Cv 0.17
Delivery Pressure Gauge (PSIG) 1000
Delivery Pressure Range (PSIG) 0 - 500
Diaphragm Neoprene
Duty Medium to heavy
Gas / Gas Service Argon
Helium
Nitrogen
Gauges 63mm Gold painted steel dual scale (psi/kPa)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Nozzle Brass
Outlet Connection 1/4 in. 45◦ Flare SAE CGA 165
Pressure Regulation PSIG/100 PSIG 0.2
Recommended Items/Accessories Steel Gauge Guard - Red (Fuel) - PN 4300238
Steel Gauge Guard - Green (Oxygen) - PN 4300239
Seat PTFE Teflon
Supply Pressure Gauge (PSIG) 4000
Typical Application HVAC purging, Pressure testing, Blanketing

Includes
What's Included
  • Harris - Model 25GX-500-580 HVAC nitrogen purging medium-to-heavy duty single-stage regulator (Clamshell)

Specifications
Gas / GasService Argon; Helium; Nitrogen
Adjusting Screw Brass T-screw
Body Brass
Bonnet Electroless nickel-plated zinc
Cv 0.17
Delivery Pressure Gauge (PSIG) 1000
Delivery Pressure Range (PSIG) 0 - 500
Diaphragm Neoprene
Duty Medium to heavy
Gauges 63mm Gold painted steel dual scale (psi/kPa)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Nozzle Brass
Outlet Connection 1/4 in. 45◦ Flare SAE CGA 165
Pressure Regulation PSIG/100 PSIG 0.2
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4000
Typical Application HVAC purging, Pressure testing, Blanketing

Harris 25GX-500-580 HVAC Purging Single Stage Pressure Regulator - 3000606



Harris Model 25GX Single Stage nitrogen purging Regulator is designed for performance and economy, but with features typically available in more expensive Harris Models. It is specifically designed for HVAC and other nitrogen pressure testing and blanketing applications. It features a T-screw for easier adjusting at high pressures. Conveniently packaged in clamshell for point-of-purchase display.

Features
  • High end features for economical price
  • Designed for HVAC and other nitrogen pressure testing and blanketing applications
  • Brass T-screw adjusting handle for easier adjustment at high pressures
  • Brass body and electroless nickel-plated zinc bonnet for longer service life
  • Neoprene diaphragm for improved pressure control
  • 2.5 in. Steel dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • Conveniently packaged in clamshell for point-of-purchase display



Specifications

Adjusting Screw Brass T-screw
Body Brass
Bonnet Electroless nickel-plated zinc
Certification CGA E-4
Cv 0.17
Delivery Pressure Gauge (PSIG) 1000
Delivery Pressure Range (PSIG) 0 - 500
Diaphragm Neoprene
Duty Medium to heavy
Gas / Gas Service Argon
Helium
Nitrogen
Gauges 63mm Gold painted steel dual scale (psi/kPa)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Nozzle Brass
Outlet Connection 1/4 in. 45◦ Flare SAE CGA 165
Pressure Regulation PSIG/100 PSIG 0.2
Recommended Items/Accessories Steel Gauge Guard - Red (Fuel) - PN 4300238
Steel Gauge Guard - Green (Oxygen) - PN 4300239
Seat PTFE Teflon
Supply Pressure Gauge (PSIG) 4000
Typical Application HVAC purging, Pressure testing, Blanketing

Harris 25GX-500-580 HVAC Purging Single Stage Pressure Regulator - 3000606



Harris Model 25GX Single Stage nitrogen purging Regulator is designed for performance and economy, but with features typically available in more expensive Harris Models. It is specifically designed for HVAC and other nitrogen pressure testing and blanketing applications. It features a T-screw for easier adjusting at high pressures. Conveniently packaged in clamshell for point-of-purchase display.

Features
  • High end features for economical price
  • Designed for HVAC and other nitrogen pressure testing and blanketing applications
  • Brass T-screw adjusting handle for easier adjustment at high pressures
  • Brass body and electroless nickel-plated zinc bonnet for longer service life
  • Neoprene diaphragm for improved pressure control
  • 2.5 in. Steel dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • Conveniently packaged in clamshell for point-of-purchase display



Specifications

Adjusting Screw Brass T-screw
Body Brass
Bonnet Electroless nickel-plated zinc
Certification CGA E-4
Cv 0.17
Delivery Pressure Gauge (PSIG) 1000
Delivery Pressure Range (PSIG) 0 - 500
Diaphragm Neoprene
Duty Medium to heavy
Gas / Gas Service Argon
Helium
Nitrogen
Gauges 63mm Gold painted steel dual scale (psi/kPa)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Nozzle Brass
Outlet Connection 1/4 in. 45◦ Flare SAE CGA 165
Pressure Regulation PSIG/100 PSIG 0.2
Recommended Items/Accessories Steel Gauge Guard - Red (Fuel) - PN 4300238
Steel Gauge Guard - Green (Oxygen) - PN 4300239
Seat PTFE Teflon
Supply Pressure Gauge (PSIG) 4000
Typical Application HVAC purging, Pressure testing, Blanketing
