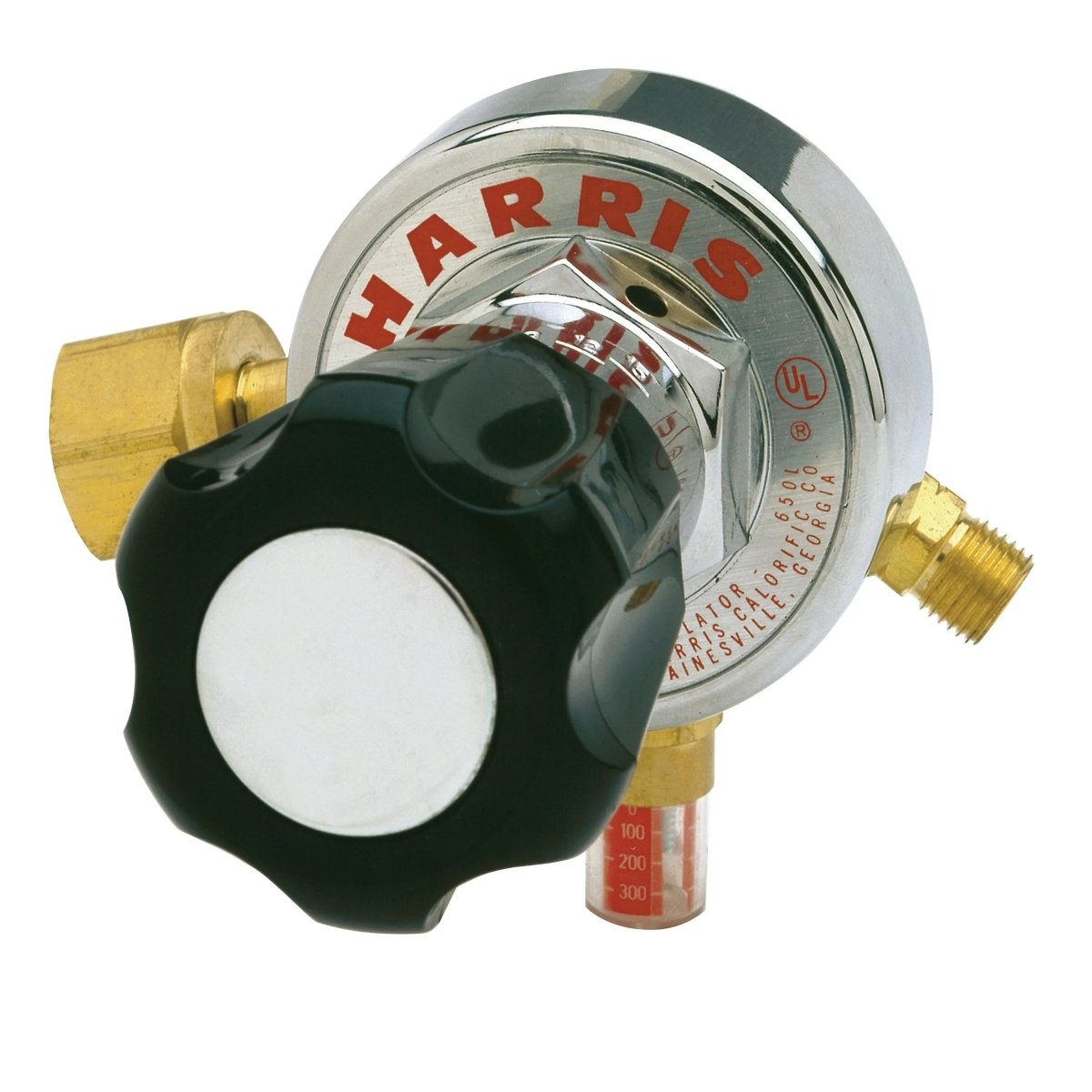

Harris 29-15C-510 Gaugeless Single Stage Acetylene Regulator - 3600260
Model 29 Heavy duty Gaugeless Acetylene Regulator is specifically designed for use in installations where rough handling of gas apparatus is commonplace. The color coded Cylinder contents indicator and the delivery pressure calibration on the bonnet are easy to read.
Features
• Heavy duty gaugeless Regulator designed for use in abusive conditions
• Easy-to-view color-coded Cylinder contents indicator
• Delivery calibration on the bonnet is easy-to-read
• Brass body and electroless nickel-plated zinc bonnet for longer service life
• Ergonomic ABS plastic knob for easy grip and precise adjustment
• No gauge
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
• Neoprene diaphragm for improved pressure control
• UL listed
Specifications
Equipment
Adjusting Knob | ABS plastic |
Body | Electroless nickel-plated |
Bonnet | Electroless nickel-plated zinc die cast |
Certification | CGA E-4, UL® listed |
Cv | 0.17 |
Delivery Pressure Range (PSIG) | 0 - 15 |
Diaphragm | Neoprene |
Duty | Heavy |
Gas / Gas Service | Acetylene |
Gauges | Gaugeless |
Inlet Connection | CGA 510 |
Maximum Inlet Pressure (PSIG) | 500 |
Outlet Connection | 9/16 in. - 18 LH |
Outlet Fittings | 9/16 in. - 18 LH |
Pressure Regulation PSIG/100 PSIG | 0.2 |
Seat | PTFE Teflon® |
Typical Application | Industrial applications |
Warranty
Warranty | 7 Years |
