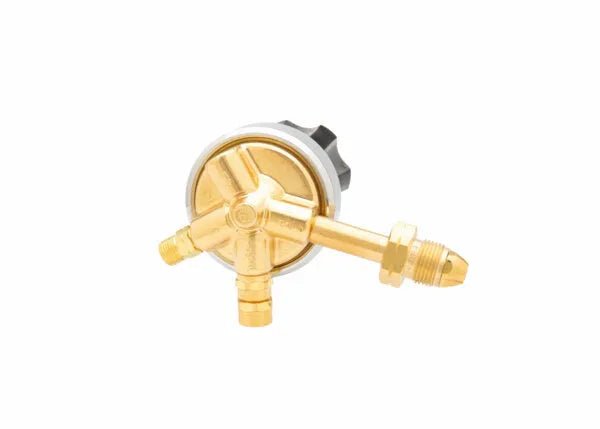

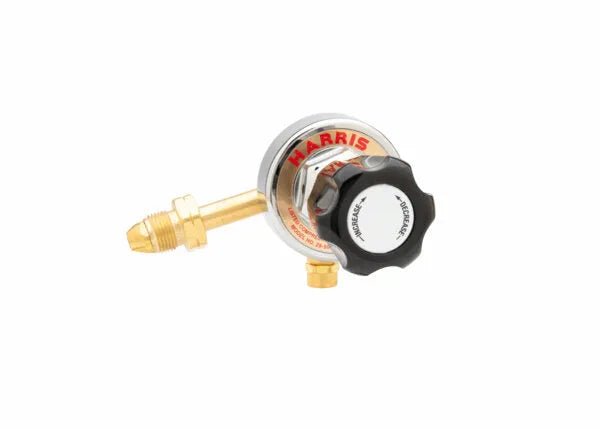

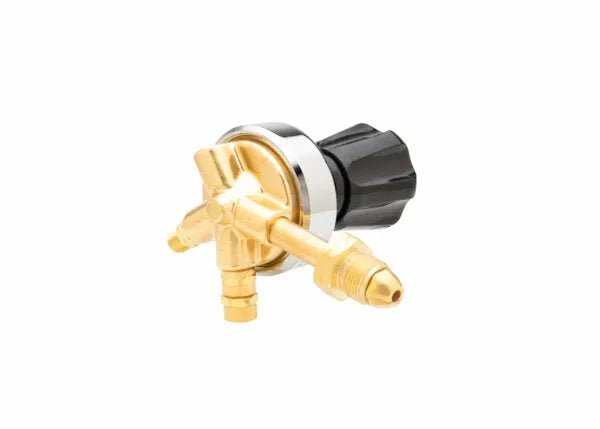

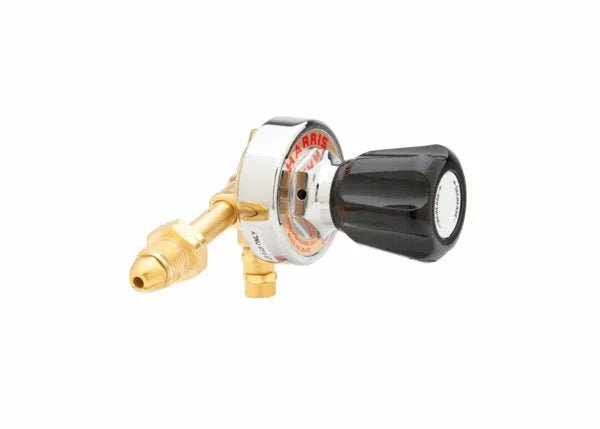

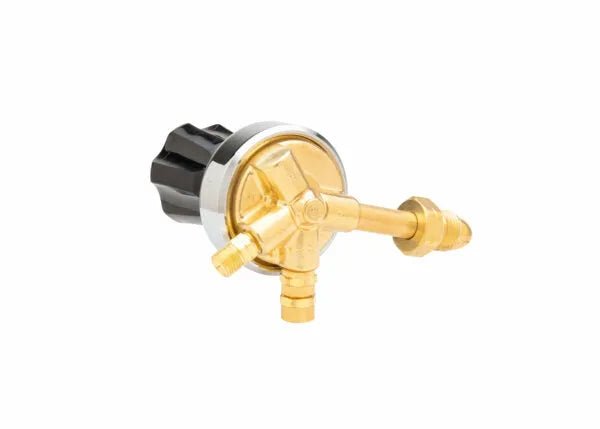

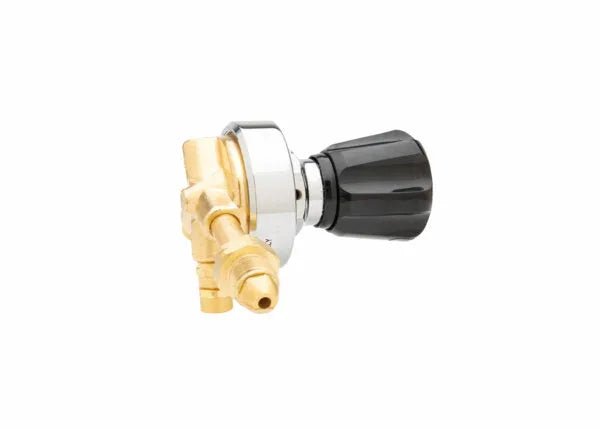

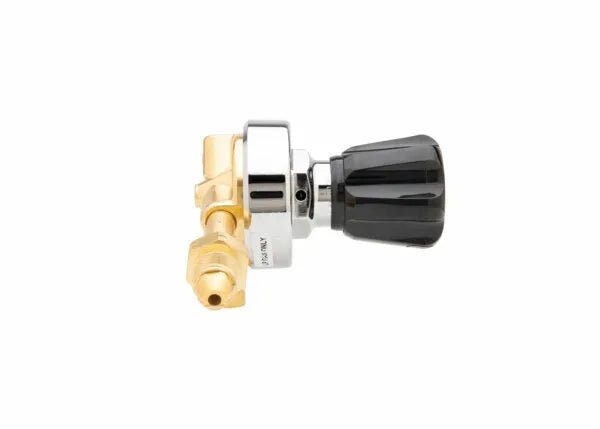

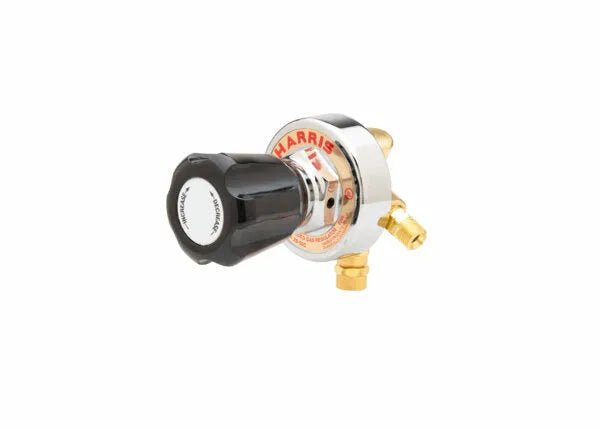

Harris 29-50C-510P Gaugeless Single Stage LPG Propane Regulator - 3600320
Model 29 Heavy duty Gaugeless LPG Propane Regulator is specifically designed for use in installations where rough handling of gas apparatus is commonplace. The color coded Cylinder contents indicator and the delivery pressure calibration on the bonnet are easy to read.
Features
- Heavy duty gaugeless Regulator designed for use in abusive conditions
- Easy-to-view color-coded Cylinder contents indicator
- Delivery calibration on the bonnet is easy-to-read
- Brass body and electroless nickel-plated brass bonnet for longer service life
- Ergonomic ABS plastic knob for easy grip and precise adjustment
- No gauge
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Neoprene diaphragm for better pressure control
- UL listed
Specifications
Equipment
Adjusting Knob | ABS black plastic |
Body | Electroless nickel-plated brass |
Bonnet | Electroless nickel-plated brass zinc die cast |
Certification | CGA E-4 UL® listed |
Cv | 0.17 |
Delivery Pressure Range (PSIG) | 0 - 50 |
Diaphragm | Neoprene |
Duty | Heavy |
Gas / Gas Service | LPG Propane Any liquid petroleum gases NOT for use with Acetylene |
Gauges | Gaugeless |
Inlet Connection | CGA 510P |
Maximum Inlet Pressure (PSIG) | 500 |
Outlet Connection | 9/16 in. - 18 LH |
Outlet Gauge | - |
Pressure Regulation PSIG/100 PSIG | 0.20 |
Seat | PTFE Teflon® |
