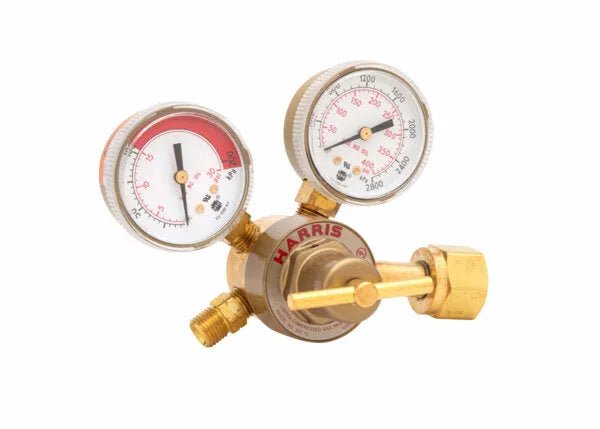

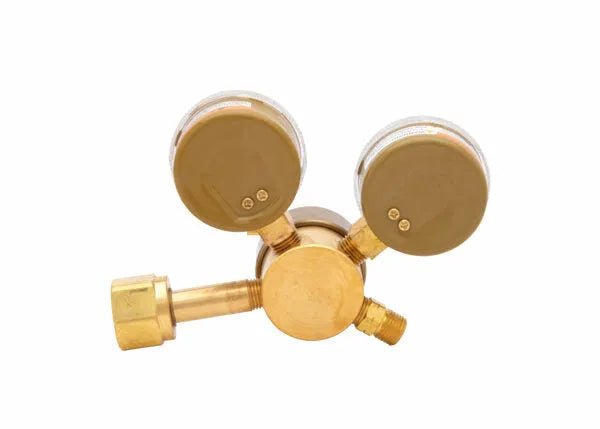

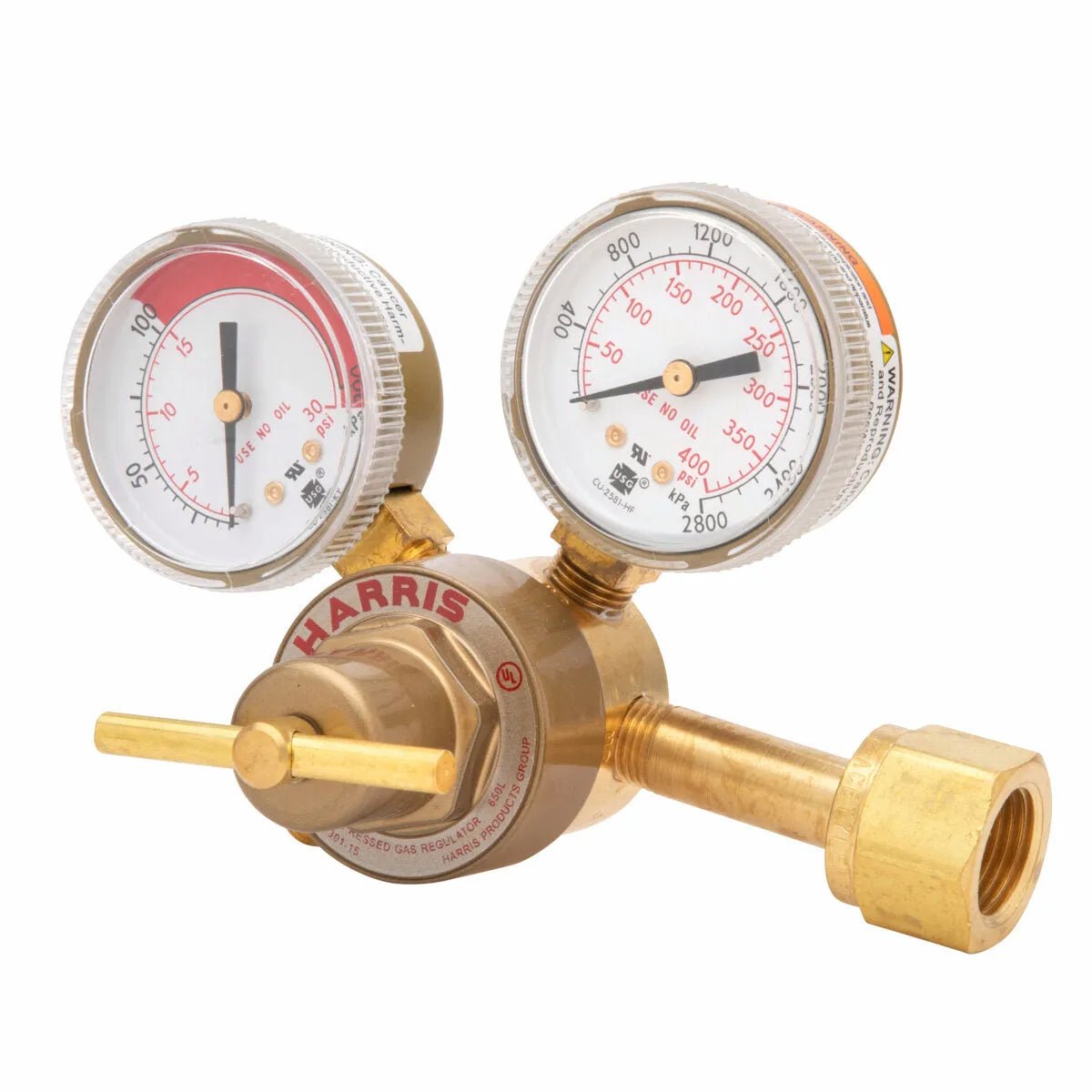

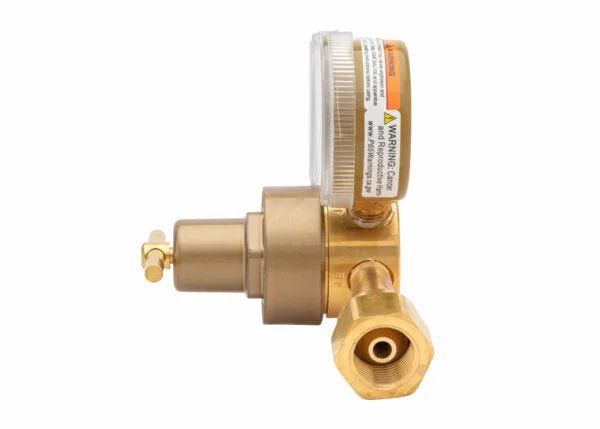

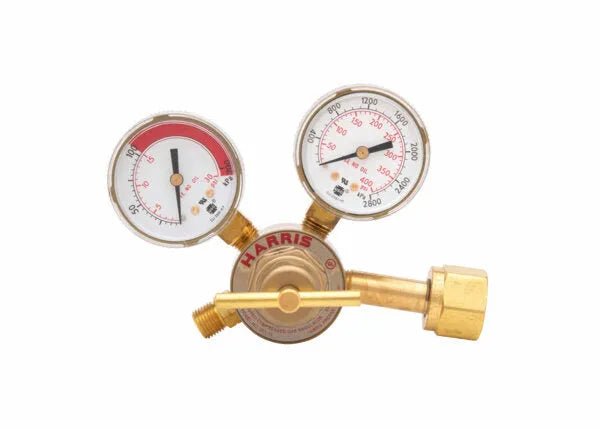

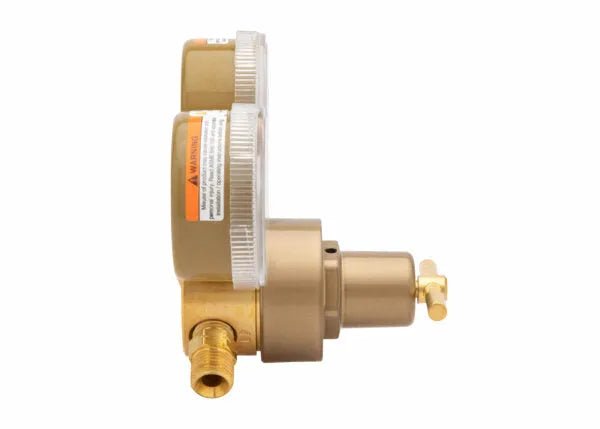

Harris 301-15-520 Single Stage Acetylene Regulator - 3000166
Harris Model 301 Single Stage Acetylene Regulator is designed to be compact, lightweight and rugged. It provides accurate pressure regulation to 100 PSIG. Harris Model 301 light to medium duty Regulator features a brass body, 2 in. steel dual scale gauges, one-piece encapsulated seat design with internal filter and PTFE Teflon seat and 9/16 in. - 18 outlet connection. This Harris Model is UL listed.
Features
- Compact Single Stage Regulator
- Lightweight, yet rugged
- Provides accurate pressure regulation to 100 PSIG
- Brass body and brass-painted zinc bonnet for longer service life
- Easy-to-operate brass T-screw adjusting handle
- 2 in. Painted gold steel dual scale easy-to-read gauge (psi/kPa)
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Neoprene diaphragm for better pressure control
- UL listed
Specifications
Equipment
Adjusting Screw | Brass T-screw |
Body | Brass |
Bonnet | Brass-painted zinc |
Certification | CGA E-4 UL® listed |
Cv | 0.08 |
Delivery Pressure Gauge (PSIG) | 30RZ |
Delivery Pressure Range (PSIG) | 0 - 15 |
Diaphragm | Neoprene |
Duty | Light to medium |
Gas / Gas Service | Acetylene |
Gauges | 2 in. Steel dual scale (psi/kPa) |
Inlet Connection | CGA 520 B |
Maximum Inlet Pressure (PSIG) | 400 |
Outlet Connection | 9/16 in. - 18 LH |
Pressure Regulation PSIG/100 PSIG | 0.40 |
Seat | PTFE Teflon® |
Supply Pressure Gauge (PSIG) | 400 |
Warranty
Warranty | 7 Years |
