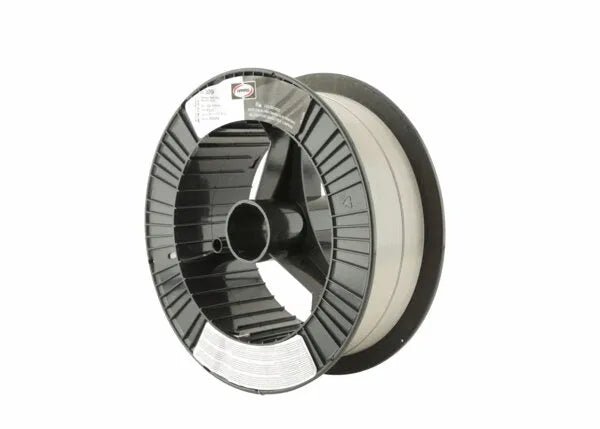

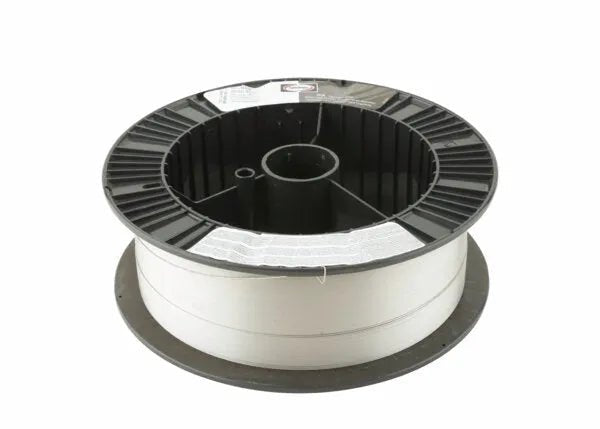

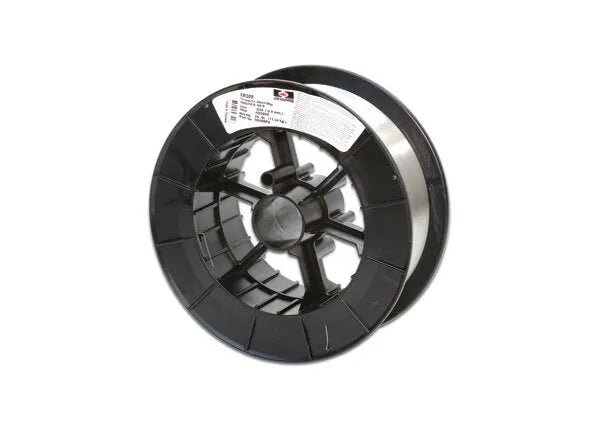

309 stainless steel MIG (GMAW) 0.035 welding wire is used to weld base metals of similar composition in wrought or cast form. Also, used to weld type 304 and similar base metals where severe conditions may exist. At times, it is used to weld dissimilar steels. Conforms to AWS A5.9.
Features
- Stainless steel 309 MIG welding wire welds type 304 and similar base metals in wrought or cast form where severe corrosion conditions may exist
- Sometimes welds dissimilar steels
- 86,000 psi tensile strength (as welded)
- 57,000 psi yield strength (as welded)
- 47% elongation (as welded)
- 68% reduction of area (as welded)
- 85 HRB Rockwell B hardness (as welded)
- 160 HB Brinell hardness (as welded)
- 105 ft./lb. @ room temperature Charpy V (as welded)
- Conforms to ANSI/AWS A5.9 & ASME SFA 5.9 ER 309
