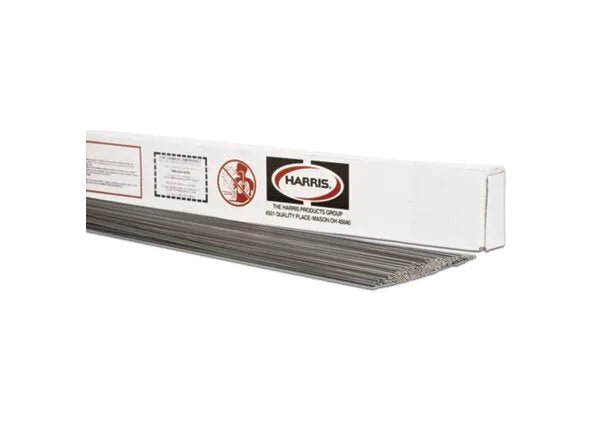

Harris 309L Stainless TIG GTAW Welding Rod (.045 in × 36 in, 10 lb Box — 309LTH0) is a high-chromium, high-nickel stainless steel filler metal classified under AWS A5.9 as ER309L. The "309" designation indicates a higher alloy content than standard 308/308L rod — specifically, 23–25% chromium and 12–14% nickel versus 308's 20% Cr / 10% Ni. This elevated alloy level serves two primary purposes: (1) it makes ER309L the standard choice for welding dissimilar metal joints between austenitic stainless steel and carbon or low-alloy steel, where the higher chromium dilutes less to a problematic composition when carbon steel contamination enters the weld pool; and (2) it provides excellent corrosion resistance for welding 309 and 309S base metals used in high-temperature furnace and heat-treating equipment.
The "L" suffix limits carbon to 0.03% maximum, reducing sensitization risk in the weld deposit and the heat-affected zone. The .045 in (1.14 mm) diameter is a medium-diameter TIG rod suited for material thicknesses of 3/16 in through 1/2 in, providing sufficient deposition rate for fill passes on pipe, structural stainless fabrication, and heavy-gauge sheet work without requiring the very high amperages of 1/8 in rod.
- AWS Classification: ER309L per AWS A5.9/A5.9M
- Carbon: 0.03% max (L = extra low carbon)
- Chromium: 23.0–25.0%
- Nickel: 12.0–14.0%
- Manganese: 1.0–2.5%
- Silicon: 0.30–0.65%
- Phosphorus: 0.03% max
- Sulfur: 0.03% max
- Diameter: .045 in (1.14 mm)
- Rod Length: 36 in (914 mm)
- Package: 10 lb box
- Tensile Strength (as-welded): ≥85,000 psi (586 MPa)
- Yield Strength: ≥55,000 psi (379 MPa)
- Elongation: ≥30%
- Ferrite Number: 8–20 FN typical (higher ferrite range prevents hot cracking in dissimilar welds)
ER309L's higher chromium and nickel levels — and its ability to tolerate carbon steel dilution without dropping below minimum corrosion resistance thresholds — make it the professional choice for several demanding situations:
- Dissimilar Metal Welding (Stainless to Carbon Steel): The most common use case for ER309L. When joining 304 or 316 stainless steel to carbon steel (ASTM A36, A516, A106), the dilution from the carbon steel side drops the chromium in the weld pool. ER309L's extra chromium "headroom" compensates for this dilution, ensuring the final deposit maintains adequate corrosion-resistance chemistry even after mixing with up to 30–40% carbon steel.
- Buffer Layer for Hard-Facing and Overlay Welding: Applied as a buttering/buffer layer over carbon steel before depositing high-alloy overlay materials (316L overlay, Inconel, cobalt-base). The 309L butter layer provides a chemically compatible transition that reduces cracking risk in the interface zone.
- Welding 309 and 309S Stainless Steel: Heat-treating baskets, furnace fixtures, retort covers, and annealing equipment fabricated from 309S stainless (23Cr-13.5Ni, suitable for service up to 2,000 °F) are welded with ER309L for direct chemistry matching.
- Repair Welding of Mixed Assemblies: Maintenance welding on equipment where the exact base metal is uncertain or mixed (SS to SS with unknown grade) — ER309L's high alloy content provides a wider margin of error than ER308L and is less likely to produce an under-alloyed weld zone on an unknown stainless base metal.
- Cladding and Weld Overlay on Pressure Vessels: Applying corrosion-resistant stainless cladding over carbon steel pressure vessel internals in chemical and petrochemical service, where the first layer over carbon steel must be 309L to dilute safely before subsequent 316L overlay passes.
- Process: GTAW (TIG), DCEN
- Tungsten: 2% ceriated (grey) or 2% lanthanated (gold/black), 3/32 in or 1/8 in diameter. Grind to a sharp taper for DCEN stainless and low-alloy steel work.
-
Amperage by application:
- 3/16 in stainless plate (fillet/butt): 100–150 A
- 1/4 in plate: 130–180 A
- 3/8 in plate: 160–220 A
- 3/16 in carbon-to-stainless dissimilar joint: 90–140 A (lower heat to minimize dilution from carbon side)
- Standard: 100% Argon at 15–25 CFH for pure stainless-to-stainless or stainless-to-carbon work.
- Helium blends: 25–50% He / balance Ar for higher travel speed on thick section material.
- Back-purge: Required for all single-sided full-penetration root passes in stainless pipe. Use 100% Argon at 2–5 CFH. For dissimilar carbon steel to stainless pipe welds, back-purge is still recommended to prevent oxidation on the stainless side of the root.
- Interpass temperature: ≤300 °F (149 °C) maximum. 309L is more prone to ferrite-related embrittlement at elevated interpass temperatures than 308L due to its higher ferrite content. Monitor with a contact pyrometer.
When buttering or joining stainless to carbon steel with ER309L, direct the arc primarily onto the stainless side of the joint — approximately 60–70% of the heat on the stainless, 30–40% on the carbon steel. This bias reduces carbon pickup from the carbon steel into the weld pool (the Schaeffler Diagram and DeLong Diagram shift toward martensite territory at high carbon dilution). Use stringer passes rather than wide weave passes to further limit dilution per pass. After completing the root pass with ER309L, subsequent passes (if any) can use ER309L throughout for full dissimilar joints, or transition to ER316L if the stainless side is 316/316L and the application requires it.
- Store in original packaging in a dry, temperature-stable environment. ER309L is bare stainless wire; surface oxidation appears as a yellowing or bronzing of the rod surface in humid storage conditions and indicates that the chromium oxide layer on the rod surface has thickened beyond specification.
- Handle with clean gloves only. Hydrocarbon contamination from skin contact on stainless TIG rod produces sooty porosity in the weld deposit and darkened bead appearance.
- Keep rod dedicated to stainless/dissimilar work. Storing ER309L rods mixed with carbon steel TIG rod (ER70S-6, ER80S-D2) in the same quiver creates risk of cross-contamination during high-pressure production when a welder grabs the wrong rod. Use color-coded rod holders or separate storage to prevent misapplication errors.
- Inspect rods before use: bright silver surface = good; yellow/bronze surface = moderate oxidation (still usable for non-critical work after surface wipe); dark gray or black = discard.
Harris ER309L .045 in is compatible with all DC TIG welding systems. Lincoln Electric platforms recommended for stainless and dissimilar TIG work:
- Lincoln Precision TIG 225 and 275 (DCEN)
- Lincoln Dynasty 280 DX and 400 (excellent arc stability for stainless)
- Lincoln Square Wave TIG 300 (DCEN mode)
- Lincoln PTA-17V, PTA-26, and PTA-26V TIG torch packages
Primary base metals:
- 304 and 304L stainless to carbon/low-alloy steel dissimilar joints
- 316 and 316L stainless to carbon steel dissimilar joints (309L butter layer)
- 309 and 309S stainless steel (direct match applications)
- Austenitic stainless to ASTM A36, A516, A572, and A588 structural carbon steel
Secondary base metals:
- Stainless steel to Ni-Fe alloys where a transitional chemistry deposit is required
- Unknown stainless alloys in maintenance/repair welding
Q1: Why use ER309L instead of ER308L for stainless-to-carbon steel welds?
A: When carbon steel is melted into the stainless weld pool, it dilutes the chromium and nickel content. ER308L starts with ~20% Cr; after 30–40% carbon steel dilution, the deposit can drop below the 12% Cr threshold required for corrosion resistance. ER309L starts with 23–25% Cr, providing a dilution buffer that keeps the final deposit above minimum corrosion-resistance chemistry even with significant carbon steel pickup. AWS D1.6 and Lincoln/Harris dissimilar filler selection guides recommend ER309L as the standard choice for carbon-to-stainless joints.
Q2: Can ER309L be used to weld 304 to 304 (same-material joints)?
A: Yes — ER309L is an acceptable overmatch for 304/304L same-material joints. The higher alloy content (extra Cr and Ni) versus ER308L provides slightly better corrosion resistance but also higher ferrite content, which can affect impact toughness at sub-zero temperatures. For pure same-material 304/304L work, ER308L is the standard recommendation. Use ER309L on 304/304L only if dissimilar joints are also involved in the same project and you want to stock a single wire lot.
Q3: What is "buttering" in dissimilar metal welding?
A: Buttering is depositing one or more layers of filler metal on the face of one base metal (typically the carbon steel side) before making the final joint weld. This pre-deposits ER309L weld metal on the carbon steel, so when the joint weld is made, the "carbon steel" side of the joint is actually ER309L — reducing dilution effects on the final joint weld. Buttering is required by many pressure vessel codes when welding P1 carbon steel to austenitic stainless in critical service.
Q4: Does ER309L work on 17-4 PH (precipitation-hardened) stainless steel?
A: No — 17-4 PH is a martensitic precipitation-hardened stainless requiring specialized filler (ER630 / Harris 174PH-type product) to produce matching mechanical properties after the aging heat treatment. Using ER309L on 17-4 PH creates a compositionally mismatched austenitic deposit that will not respond to the aging cycle and may have inadequate strength for the application.
Q5: What is the maximum service temperature for ER309L weld deposits?
A: ER309L weld metal is suitable for service up to approximately 1,500–1,600 °F (816–871 °C) before sigma-phase embrittlement and carburization become concerns. For continuous service above 1,600 °F, use ER310 (25Cr-20Ni) which offers higher oxidation resistance. For cyclic thermal environments to 2,000 °F, 309 base metal with ER309L filler is appropriate.
Q6: How much preheat does carbon steel need before welding with ER309L?
A: Preheat requirements are driven by the carbon steel side of the joint, not the filler metal. Per AWS D1.1 Table 3.2 and Lincoln Electric preheat guidelines: ASTM A36 carbon steel under 3/4 in thickness typically requires no preheat; 3/4 in–1-1/2 in requires 150 °F (66 °C); thicker sections require 200–300 °F (93–149 °C). The stainless side does not require preheat. Maintain this preheat throughout the weld to prevent hydrogen-induced cracking on the carbon steel side of the heat-affected zone.
Q7: What is the shelf life of Harris ER309L TIG rod?
A: Harris ER309L has an indefinite shelf life in unopened original packaging stored in dry conditions (below 60% RH, 50–100 °F). Once opened, use within 6–12 months and store in a sealed container. Rods that show surface oxidation (yellowing or bronzing) should be cleaned with acetone and stainless-dedicated wire brush before use; rods with heavy discoloration should be discarded for critical applications.
