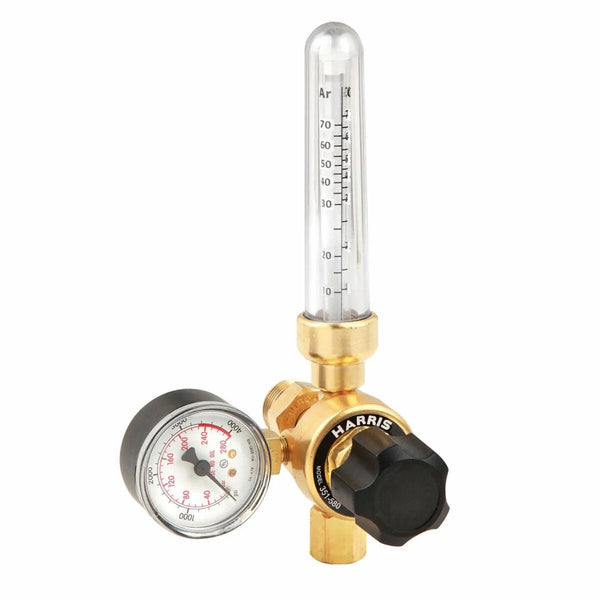

Harris 3100330 - 351-60CD-320 Cylinder Flowmeter Argon/Carbon Dioxide Regulator Regulator
Harris Model 351 Cylinder flowmeter argon/carbon dioxide regulator is zero-compensated for more efficient shielding gas use. The unique design of this flowmeter makes it more resistant to carbon dioxide (CO2) freeze-up than comparable competitive Harris Models. This flowmeter features a durable, easy-to-read, flow tube and cover. The Regulator features a brass body, 50mm ABS plastic dual scale gauge, one-piece encapsulated seat design with internal filter and PTFE Teflon seat to protect it from particulate contamination and a large plastic knob for easy grip and precise adjustments.
Features
- Economical, compact flowmeter Regulator for Cylinder applications
- Zero compensated for more efficient shielding gas use
- Plastic knob for easy grip and precise adjustments
- Brass body and bonnet for longer service life
- Neoprene diaphragm for improved pressure control
- 50mm ABS plastic dual scale easy-to-read gauge (psi bar)
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Accurate dual scale (psi/bar) flow tube provides accurate flow control to 70 SCFH
- More resistant to carbon dioxide Freeze-up than comparable competitive Harris Models
- Vertical mounting only
Specifications
Equipment
| Adjusting Knob | Plastic |
| Body | Brass |
| Bonnet | Brass |
| Certification | CGA E-4 |
| Compensated PSIG | 0 - zero |
| Diaphragm | Neoprene |
| Duty | Heavy |
| Flow Capacity (SCFH) | 10 - 70 |
| Gas / Gas Service | Argon Carbon Dioxide |
| Gauges | 50mm plastic dual scale (psi/bar) |
| Inlet Connection | CGA 320 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Outlet Connection | 5/8 in. - 18 (F) |
| Recommended Items/Accessories | Single BxB T-grade black inert gas hose 3/16 in. x 10 ft. - PN 4300138 |
| Seat | PTFE Teflon® |
| Supply Pressure Gauge (PSIG) | 4000 |
| Typical Application | Gas-shielded welding Other industrial applications |
Warranty
| Warranty | 7 Years |
