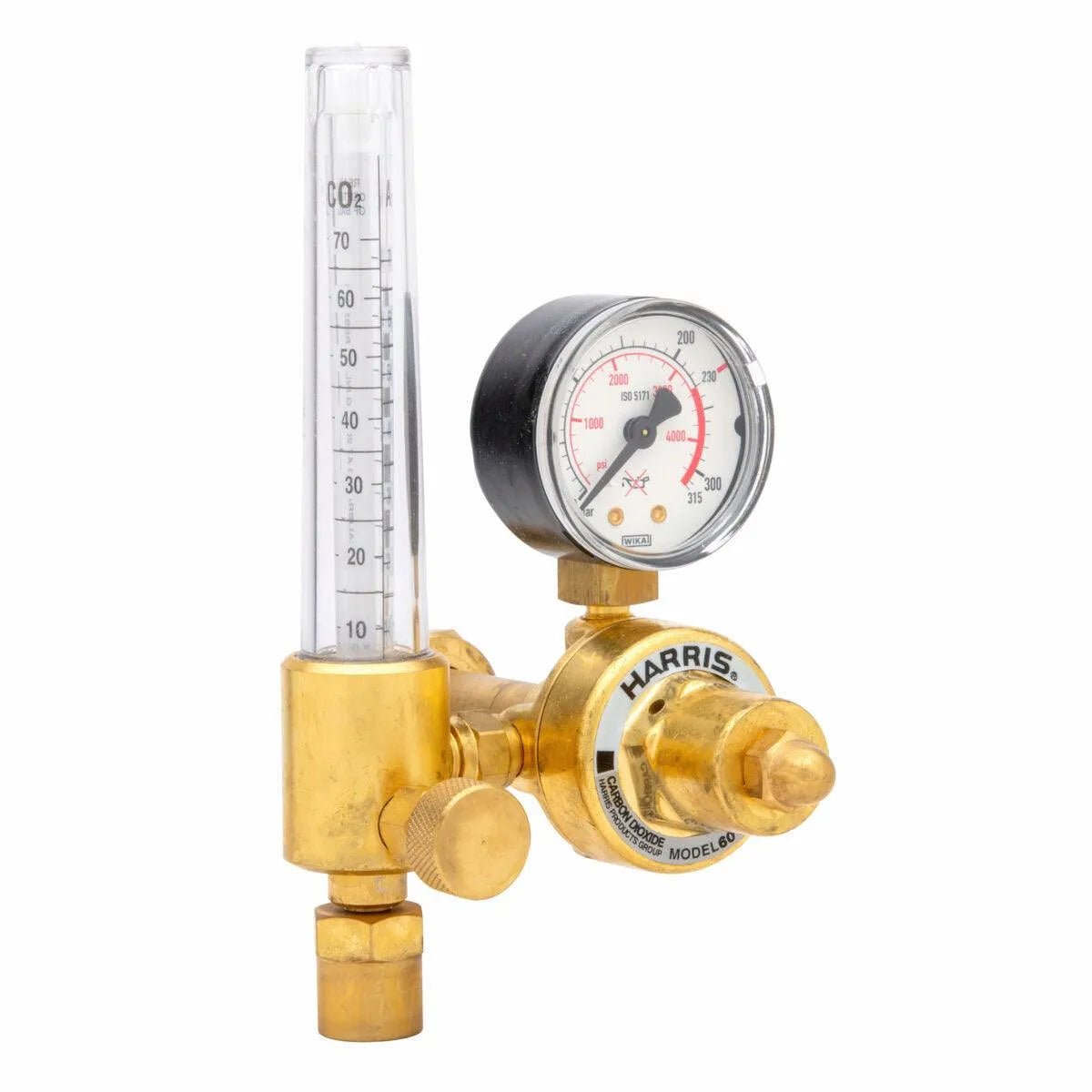

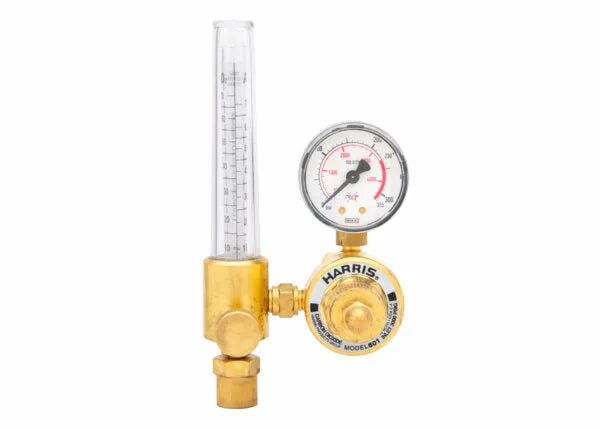

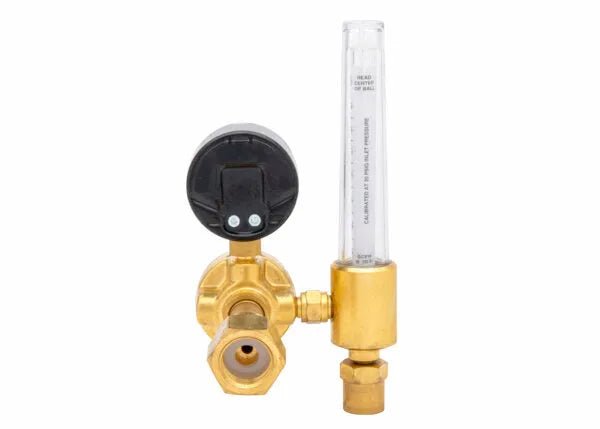

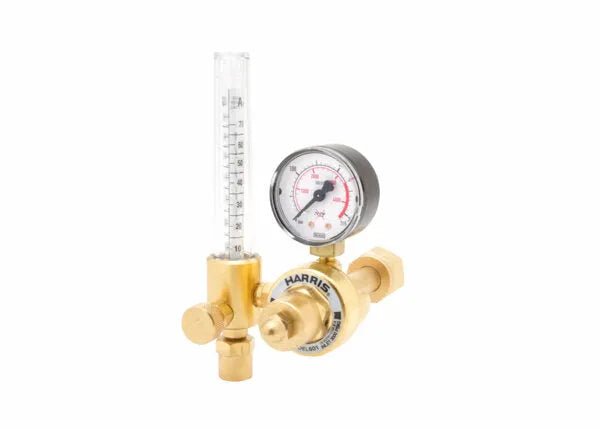

Harris 3100578 - 601-CD-320 Compensated Flowmeter Regulator
Harris Model 601 flowmeter is designed to be compact and economical, but with features typically available in more expensive Regulators. It is used where weight, cost and size are factors. The flowmeter includes a sensitive needle valve for finger-tip control and durable, easy-to-read, flow tube and cover. The Regulator features a forged brass body, 50mm steel dual scale gauge and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. The outlet connection is 5/8 in. - 18 in. RH (F).
Features
- Economical, compensated flowmeter Regulator for carbon dioxide
- Regulator is compensated at 20 PSIG
- Forged brass body and bonnet for longer service life
- Neoprene diaphragm for better pressure control
- 50mm Steel dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Durable cover and easy-to-read flow tube
- Provides accurate flow-control to 70 SCFH
