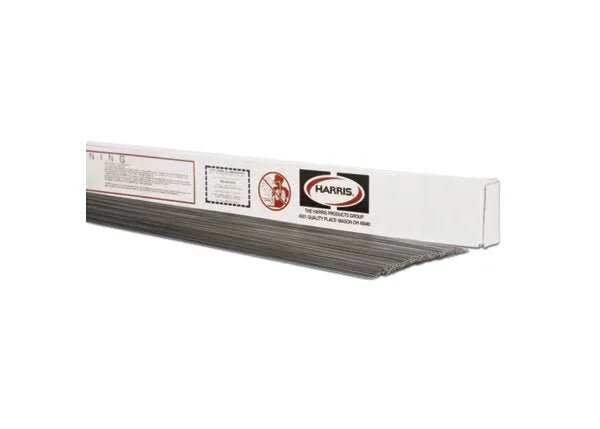

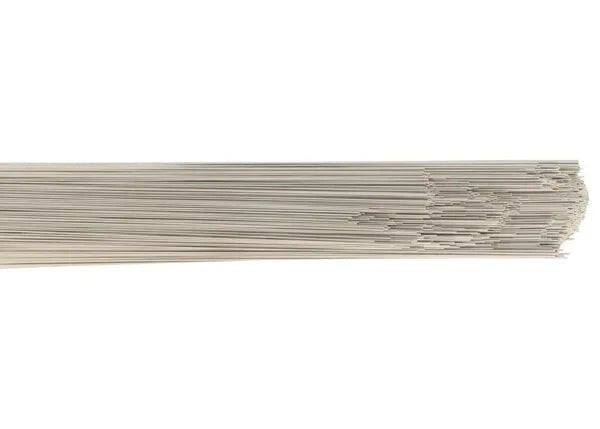

The Harris 316L Stainless TIG GTAW Welding Rod (part number 316LTE0) is a fine-diameter, low-carbon, molybdenum-bearing austenitic stainless steel filler rod classified ER316L per AWS A5.9/A5.9M. Available in a .030 in (0.76 mm) diameter, 36-inch cut length, 10 lb box, this rod is the correct filler for precision TIG welding of thin-gauge 316, 316L, and related molybdenum-bearing stainless steel components where maximum corrosion resistance in the weld zone is required. The combination of the fine .030 in diameter and ER316L's molybdenum-enhanced chemistry makes this rod uniquely suited for thin-wall 316L tubing (0.028–0.065 in), instrument fittings, hygienic tri-clamp assemblies, and ultra-high-purity semiconductor or pharmaceutical piping systems where both dimensional precision and pitting resistance at chloride-exposed welds are mandatory. Harris Products Group, a Lincoln Electric company, manufactures this rod with traceable lot chemistry documentation.
At .030 in, the rod delivers extremely fine bead control — the heat input per unit weld length is minimal, which is critical on thin-gauge 316L that distorts rapidly under excessive heat. In pulse TIG applications (common in high-purity piping orbital welding and manual precision work), the .030 in diameter complements low background-current pulse settings that minimize heat-affected zone width.
| Attribute | Value |
|---|---|
| AWS Classification | ER316L (AWS A5.9/A5.9M) |
| Harris Part Number | 316LTE0 |
| Diameter | .030 in (0.76 mm) |
| Cut Length | 36 in (914 mm) |
| Package Weight | 10 lb box |
| Carbon Content (max) | 0.03% (low-carbon L grade) |
| Chromium Content | 18.0–20.0% |
| Nickel Content | 11.0–14.0% |
| Molybdenum | 2.0–3.0% |
| Tensile Strength (as welded) | ≥75,000 psi (517 MPa) |
| Yield Strength (as welded) | ≥54,000 psi (372 MPa) |
| Elongation (as welded) | ≥35% |
| Polarity | DCEN |
| Shielding Gas | 100% Argon or Ar/He |
| Process | GTAW (TIG) |
| Base Metals | 316, 316L, 316H, 317L stainless steels |
- Pharmaceutical High-Purity Piping: Sanitary tubing systems (BPE-compliant) in 316L stainless at wall thicknesses of 0.049–0.065 in are routinely TIG-welded with .030 in ER316L rod. The fine diameter and low-carbon chemistry are both required by pharmaceutical GMP facility specifications for potable water, WFI (Water for Injection), and process piping welds.
- Semiconductor Fab & Ultra-High-Purity Gas Systems: UHP gas delivery piping and panels for semiconductor fabrication use electropolished 316L tubing at very thin wall gauges. The .030 in rod is compatible with autogenous-root orbital TIG processes and manual fill passes on small-bore UHP components.
- Thin-Wall Marine 316L Tube: Seawater cooling systems, outboard motor housings, and small-craft hardware using thin-gauge 316L tubing (16–22 gauge). The molybdenum in ER316L maintains corrosion resistance in the weld metal equal to or exceeding the base metal.
- Precision Instrumentation: Thermowell assemblies, pressure transducer fittings, and analytical instrument sample lines in 316L require fine-diameter filler for small-bore tube butt and socket-weld joints with minimal weld crown height.
- Decorative Marine Stainless: Handrail tubing, grab rails, and deck fittings in 316L on sailboats and powerboats; the .030 in diameter enables flush, smooth weld beads that polish out easily for a finished appearance.
- Dairy & Beverage 3-A Sanitary Applications: 3-A Sanitary Standard piping in 316L — the low carbon and fine diameter .030 in rod supports the tight-radius small-bore tube work required in dairy plant connections.
Welding thin-gauge 316L with .030 in rod demands careful setup and technique to achieve porosity-free, sensitization-free welds with minimal distortion:
Amperage: 20–75 amps DCEN for typical thin-gauge 316L applications (22 gauge–1/16 in). Use a foot pedal — the narrow range between ideal fusion and burn-through on thin stainless requires constant modulation. For orbital welding programs using .030 in ER316L, program peak pulse current at 55–75% above background and 20–30% on-time at 1–3 Hz for travel-speed-modulated heat input.
Tungsten: 1/16 in 2% ceriated tungsten is ideal for .030 in filler work on thin stainless. Sharpen to a fine point (30° included angle). A 1/16 in tungsten in a size #4 or #5 gas lens cup creates the correct shielding envelope for thin-gauge joint geometry.
Gas: 100% argon, 12–18 CFH, through a size 5–6 gas lens cup. For tubing applications with back-purge requirements, flow 3–6 CFH argon into the tube interior to prevent root-side oxidation during root fusion. In orbital TIG systems, the weld head purges both sides automatically.
Joint Fit-Up: For .030 in diameter rod on thin-gauge material, joint fit-up tolerance is ±0.010 in gap maximum. Excessive gaps on thin material cause burn-through because there is insufficient base metal mass to absorb the required heat input. Tack every 1.5–2 in on runs of thin tube to control distortion.
| Wall Thickness | Amperage Range | Tungsten | Ar Flow (CFH) |
|---|---|---|---|
| 22 gauge (0.028 in) | 15–30 A | 1/16 in ceriated | 12 |
| 18 gauge (0.050 in) | 30–50 A | 1/16 in ceriated | 14 |
| 16 gauge (0.063 in) | 45–65 A | 1/16 ceriated | 15 |
| 1/16 in (0.062 in) | 60–75 A | 3/32 ceriated | 16–18 |
- Dedicated Fine-Wire Storage: Store .030 in rods in the original sealed box, laid flat. The fine diameter is susceptible to kinking — do not store in containers that allow rods to shift and bend. Kinks cause arc wander and poor fusion at the bend point.
- Gloves Mandatory: At this fine diameter, skin oils from finger contact are more problematic per unit surface area than on larger-diameter rods. Always handle .030 in stainless TIG rod with clean nitrile gloves. For pharmaceutical-grade applications, use lint-free cleanroom gloves.
- Certificate of Conformance: For pharmaceutical, semiconductor, or ASME pressure piping applications, retain the C/C with the heat chemistry data. Some FDA-regulated facilities require the C/C to be attached to the weld traveler for the specific spool of tubing welded.
- Opened Box: After opening, seal box with tape to prevent moisture ingress. At the .030 in diameter, even minor surface oxidation affects arc starts. Use within a reasonable period in normal shop conditions.
- No Mixing of Diameters: Label opened boxes clearly with diameter and classification. At .030 in, the rod is difficult to distinguish visually from .035 in ER308L rods in the same box. A chemistry mismatch between 316L and 308L in a chloride environment could cause in-service pitting failure.
The .030 in diameter requires a TIG machine capable of low-amperage stable arc starts (below 30 A):
- Lincoln Electric Square Wave TIG 200 (K5126-1): Excellent for the .030 in rod on thin-gauge 316L work; its high-frequency start system provides clean arc initiation at very low amperage settings.
- Any Orbital TIG Welding System: Automated orbital TIG heads (Arc Machines, Orbimatic, Polysoude) designed for small-bore sanitary tubing use .030 in ER316L as standard fill wire in the hot-wire or cold-wire feed module.
- Any DC GTAW machine with foot-pedal control and HF start: The rod's fine diameter is compatible with any standard GTAW power source that can be controlled at 20–75 A with precision.
| Base Metal | ER316L .030 Compatibility | Notes |
|---|---|---|
| 316 / 316L (thin gauge) | ✅ Primary — ideal match | Standard selection for thin 316L sheet, tube, and instrumentation |
| 316H | ✅ Acceptable (non-high-temp) | For above 800°F service, consult engineer for ER316H or 317L |
| 317L | ✅ Acceptable | ER317L preferred for direct match; ER316L acceptable general service |
| 304L / 304 (thin gauge) | ✅ Over-alloyed, acceptable | Adds corrosion margin; more expensive than ER308L for same base metal |
| Carbon steel | ❌ | Use ER309L for dissimilar carbon-to-stainless joints |
The 0.030 in (0.76 mm) diameter ER316L rod fills a specific gap in the TIG rod size range. Understanding when to specify this diameter over the standard 3/32 in (2.38 mm) size is critical for thin-gauge 316L work.
| Parameter | 0.030 in ER316L | 3/32 in ER316L |
|---|---|---|
| Best thickness range | 22–18 gauge (0.030–0.050 in) | 16–10 gauge (0.060–0.135 in) |
| Amperage range | 15–60 A | 60–160 A |
| Primary applications | Thin sheet, small-bore tube, orbital TIG | Production pipe, plate fabrication |
| Heat input per dip | Very low — ideal for thin stainless | Standard production rate |
The 0.030 in diameter ER316L rod is the standard choice for orbital TIG welding of sanitary-grade 316L tubing (ASTM A270 / A269) in pharmaceutical, biotech, and food-grade piping systems. Typical tubing ODs range from 0.5 in to 2.0 in with wall thicknesses of 0.020–0.065 in. For wall thicknesses below 0.065 in, the 0.030 in filler rod provides better control of filler addition volume per unit length than the larger 3/32 in rod — critical for consistent, smooth, ID-flush weld beads required by 3-A Sanitary Standards and FDA validation protocols.
In pharmaceutical and food piping, ER316L TIG welds must meet EP (Electropolished) or mechanical polish surface finish requirements. The Mo content in ER316L deposit provides consistent corrosion resistance after electropolishing — the Mo-bearing passive film is more uniform and complete than 304L/ER308L deposits after electropolishing, important for maintaining CIP (Clean-In-Place) and SIP (Steam-In-Place) system integrity. Post-weld electropolishing to Ra ≤0.5 μm (20 μin) is standard for pharmaceutical ER316L weld deposits.
Harris ER316L 0.030 in rod is compatible with cold wire feed orbital welding systems (Arc Machines, Polysoude, Orbitalum) used in pharmaceutical and semiconductor facility construction. The consistent diameter tolerance and surface cleanliness of Harris rod is important for reliable wire feed performance in automated orbital systems.
Q1: Why does my application call for .030 in rather than 1/16 in diameter 316L rod?
Applications requiring .030 in diameter are typically those with thin base metal (below 0.065 in), very narrow joint geometry, orbital TIG welding head restrictions, or specifications requiring minimum heat input and weld bead crown height. Pharmaceutical and semiconductor facilities often specify .030 in to reduce the total heat input per linear inch of weld and minimize the HAZ width on precision fittings and tubing.
Q2: Can I use .030 in ER316L in an orbital welding machine?
Yes. .030 in is a standard fill-wire diameter for many orbital TIG systems. The wire is fed continuously from a spool or pack in the hot-wire or cold-wire feed module. Verify that your orbital head and feed mechanism are set up for the .030 in diameter (correct wire guide and drive roll V-groove size for the diameter).
Q3: What is the minimum material thickness I can weld with .030 in ER316L rod?
The .030 in rod is suitable for material thicknesses as thin as 22 gauge (0.028 in) when using a foot pedal at 15–25 A with proper technique. For material thinner than 22 gauge, an autogenous (no filler added) root pass or orbital autogenous weld may be preferred, with .030 in filler added only to fill the cap if needed.
Q4: Is ER316L .030 in stainless TIG rod suitable for food-grade applications?
Yes. Harris ER316L meets AWS A5.9/A5.9M and is suitable for 3-A Sanitary Standard and FDA-regulated food contact equipment when welded with proper technique (full penetration, no lack of fusion, polished or passivated as required). Confirm the project specification and the local jurisdiction's requirements for filler metal documentation.
Q5: What causes porosity when welding with .030 in 316L rod?
Common causes at this diameter: (1) moisture or oil on the rod surface — use clean gloves and store correctly, (2) insufficient back-purge on tubing root passes — increase argon purge flow, (3) arc length too long — the fine diameter is more sensitive to arc length than thicker rods; maintain 1/16 in or less arc length, (4) draft in weld area disrupting shielding — shield work area from air movement, (5) argon flow too low for the cup size — increase to recommended CFH.
Q6: How long does a 10 lb box of .030 in ER316L TIG rod last?
A 10 lb box contains approximately 600–700 individual 36 in rods at this diameter. For production pharmaceutical piping where a skilled welder might consume 30–50 rods per day on small-bore tube work, a 10 lb box represents roughly 2–3 weeks of full production work. For occasional maintenance or repair work, a 10 lb box may last many months.
