Harris  |  SKU: 3003513

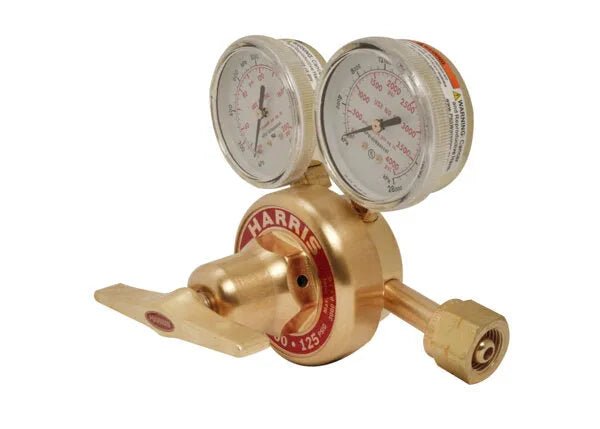

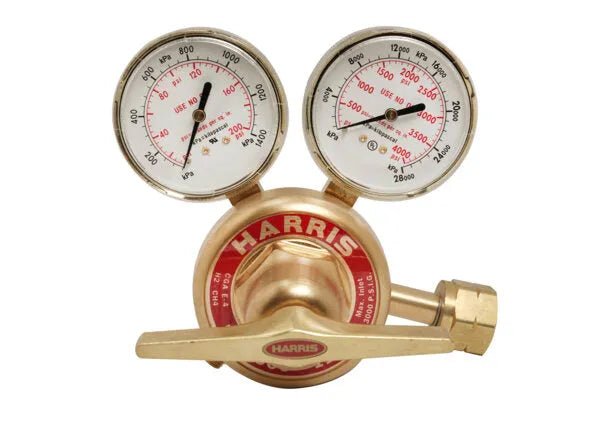

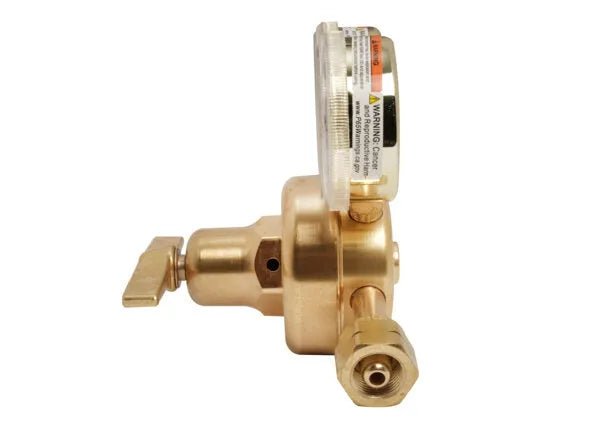

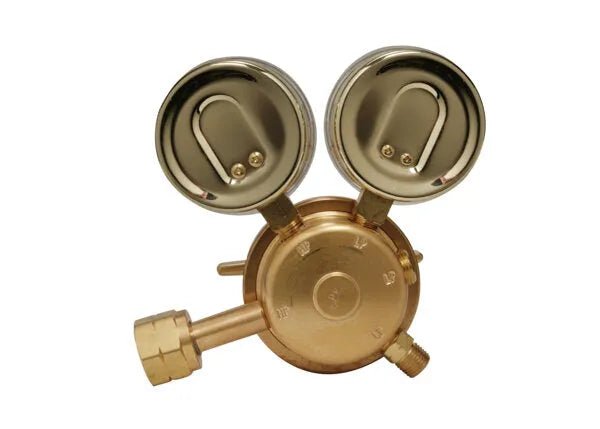

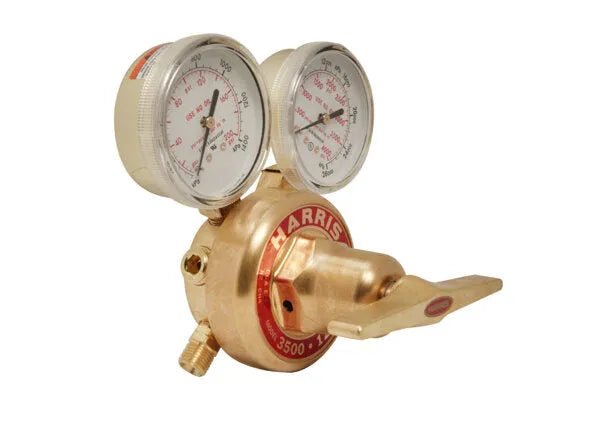

Harris 3500-200-350 Single Stage Hydrogen/Methane Regulator - 3003513

$419.00 $619.49
Model 3500-200-350 high-pressure, high-flow single-stage Hydrogen/Methane regulator

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Harris 3500-200-350 Single Stage Hydrogen/Methane Regulator - 3003513

Model 3500 high-pressure, high-flow Hydrogen/Methane Regulator is specifically designed to provide high gas flows from Cylinders and to supply manifold gas systems. It is also ideal for special high-flow Cylinder applications such as heavy cutting and heating. It has dual port outlets and a neoprene diaphragm. Includes a 3/8 in. NPT auxiliary port.

Features

  • Operates on high pressure Cylinders of up to 3000 PSIG
  • Ideal for special high flow Cylinder applications
  • Easy-to-operate brass T-screw bar adjusting handle
  • Brass body and bonnet for longer service life
  • Large 2.75 in. neoprene diaphragm for improved pressure control
  • 2.5 in. Brass dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the CTFE Kel-F seat from particulate contamination
  • Equipped with a tamper-proof, self-reseating, internal high pressure safety relief valve
  • Equipped with dual outlet ports
  • Features 3/8 in. NPT outlet connection auxiliary port

Specifications

Equipment

Adjusting Screw Brass T-screw bar
Body Brass
Bonnet Brass
Capacity High pressure
high flow
Certification CGA E-4
Cv 0.4
Delivery Pressure Gauge (PSIG) 400
Delivery Pressure Range (PSIG) 0 - 200
Diaphragm Neoprene
Equipped With Dual port outlets
3/8 in. NPT auxiliary port
Gas / Gas Service Hydrogen
Methane
Gauges 2.5 in. Brass dual scale (psi/bar)
Inlet Connection CGA 350
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 9/16 in. - 18 LH
Pressure Regulation PSIG/100 PSIG 0.9
Recommended Items/Accessories Plug - Model 967 1/4 in. NPT - PN 9000306
Plug - Model 967 3/8 in. NPT Hex Socket - PN 9000373
Seat CTFE (Kel-F®)
Supply Pressure Gauge (PSIG) 4000

Warranty

Warranty 1 Year

Harris 3500-200-350 Single Stage Hydrogen/Methane Regulator - 3003513

Model 3500 high-pressure, high-flow Hydrogen/Methane Regulator is specifically designed to provide high gas flows from Cylinders and to supply manifold gas systems. It is also ideal for special high-flow Cylinder applications such as heavy cutting and heating. It has dual port outlets and a neoprene diaphragm. Includes a 3/8 in. NPT auxiliary port.

Features

  • Operates on high pressure Cylinders of up to 3000 PSIG
  • Ideal for special high flow Cylinder applications
  • Easy-to-operate brass T-screw bar adjusting handle
  • Brass body and bonnet for longer service life
  • Large 2.75 in. neoprene diaphragm for improved pressure control
  • 2.5 in. Brass dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the CTFE Kel-F seat from particulate contamination
  • Equipped with a tamper-proof, self-reseating, internal high pressure safety relief valve
  • Equipped with dual outlet ports
  • Features 3/8 in. NPT outlet connection auxiliary port

Specifications

Equipment

Adjusting Screw Brass T-screw bar
Body Brass
Bonnet Brass
Capacity High pressure
high flow
Certification CGA E-4
Cv 0.4
Delivery Pressure Gauge (PSIG) 400
Delivery Pressure Range (PSIG) 0 - 200
Diaphragm Neoprene
Equipped With Dual port outlets
3/8 in. NPT auxiliary port
Gas / Gas Service Hydrogen
Methane
Gauges 2.5 in. Brass dual scale (psi/bar)
Inlet Connection CGA 350
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 9/16 in. - 18 LH
Pressure Regulation PSIG/100 PSIG 0.9
Recommended Items/Accessories Plug - Model 967 1/4 in. NPT - PN 9000306
Plug - Model 967 3/8 in. NPT Hex Socket - PN 9000373
Seat CTFE (Kel-F®)
Supply Pressure Gauge (PSIG) 4000

Warranty

Warranty 1 Year

Harris 3500-200-350 Single Stage Hydrogen/Methane Regulator - 3003513

Model 3500 high-pressure, high-flow Hydrogen/Methane Regulator is specifically designed to provide high gas flows from Cylinders and to supply manifold gas systems. It is also ideal for special high-flow Cylinder applications such as heavy cutting and heating. It has dual port outlets and a neoprene diaphragm. Includes a 3/8 in. NPT auxiliary port.

Features

  • Operates on high pressure Cylinders of up to 3000 PSIG
  • Ideal for special high flow Cylinder applications
  • Easy-to-operate brass T-screw bar adjusting handle
  • Brass body and bonnet for longer service life
  • Large 2.75 in. neoprene diaphragm for improved pressure control
  • 2.5 in. Brass dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the CTFE Kel-F seat from particulate contamination
  • Equipped with a tamper-proof, self-reseating, internal high pressure safety relief valve
  • Equipped with dual outlet ports
  • Features 3/8 in. NPT outlet connection auxiliary port

Specifications

Equipment

Adjusting Screw Brass T-screw bar
Body Brass
Bonnet Brass
Capacity High pressure
high flow
Certification CGA E-4
Cv 0.4
Delivery Pressure Gauge (PSIG) 400
Delivery Pressure Range (PSIG) 0 - 200
Diaphragm Neoprene
Equipped With Dual port outlets
3/8 in. NPT auxiliary port
Gas / Gas Service Hydrogen
Methane
Gauges 2.5 in. Brass dual scale (psi/bar)
Inlet Connection CGA 350
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 9/16 in. - 18 LH
Pressure Regulation PSIG/100 PSIG 0.9
Recommended Items/Accessories Plug - Model 967 1/4 in. NPT - PN 9000306
Plug - Model 967 3/8 in. NPT Hex Socket - PN 9000373
Seat CTFE (Kel-F®)
Supply Pressure Gauge (PSIG) 4000

Warranty

Warranty 1 Year

Harris 3500-200-350 Single Stage Hydrogen/Methane Regulator - 3003513

Model 3500 high-pressure, high-flow Hydrogen/Methane Regulator is specifically designed to provide high gas flows from Cylinders and to supply manifold gas systems. It is also ideal for special high-flow Cylinder applications such as heavy cutting and heating. It has dual port outlets and a neoprene diaphragm. Includes a 3/8 in. NPT auxiliary port.

Features

  • Operates on high pressure Cylinders of up to 3000 PSIG
  • Ideal for special high flow Cylinder applications
  • Easy-to-operate brass T-screw bar adjusting handle
  • Brass body and bonnet for longer service life
  • Large 2.75 in. neoprene diaphragm for improved pressure control
  • 2.5 in. Brass dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the CTFE Kel-F seat from particulate contamination
  • Equipped with a tamper-proof, self-reseating, internal high pressure safety relief valve
  • Equipped with dual outlet ports
  • Features 3/8 in. NPT outlet connection auxiliary port

Specifications

Equipment

Adjusting Screw Brass T-screw bar
Body Brass
Bonnet Brass
Capacity High pressure
high flow
Certification CGA E-4
Cv 0.4
Delivery Pressure Gauge (PSIG) 400
Delivery Pressure Range (PSIG) 0 - 200
Diaphragm Neoprene
Equipped With Dual port outlets
3/8 in. NPT auxiliary port
Gas / Gas Service Hydrogen
Methane
Gauges 2.5 in. Brass dual scale (psi/bar)
Inlet Connection CGA 350
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 9/16 in. - 18 LH
Pressure Regulation PSIG/100 PSIG 0.9
Recommended Items/Accessories Plug - Model 967 1/4 in. NPT - PN 9000306
Plug - Model 967 3/8 in. NPT Hex Socket - PN 9000373
Seat CTFE (Kel-F®)
Supply Pressure Gauge (PSIG) 4000

Warranty

Warranty 1 Year

The ultimate welding setup

Working hard has never looked this good

Shop now
Harris 3500-200-350 Single Stage Hydrogen/Methane Regulator - 3003513
Harris

Harris 3500-200-350 Single Stage Hydrogen/Methane Regulator - 3003513

$419.00 $619.49

Harris 3500-200-350 Single Stage Hydrogen/Methane Regulator - 3003513

Model 3500 high-pressure, high-flow Hydrogen/Methane Regulator is specifically designed to provide high gas flows from Cylinders and to supply manifold gas systems. It is also ideal for special high-flow Cylinder applications such as heavy cutting and heating. It has dual port outlets and a neoprene diaphragm. Includes a 3/8 in. NPT auxiliary port.

Features

Specifications

Equipment

Adjusting Screw Brass T-screw bar
Body Brass
Bonnet Brass
Capacity High pressure
high flow
Certification CGA E-4
Cv 0.4
Delivery Pressure Gauge (PSIG) 400
Delivery Pressure Range (PSIG) 0 - 200
Diaphragm Neoprene
Equipped With Dual port outlets
3/8 in. NPT auxiliary port
Gas / Gas Service Hydrogen
Methane
Gauges 2.5 in. Brass dual scale (psi/bar)
Inlet Connection CGA 350
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 9/16 in. - 18 LH
Pressure Regulation PSIG/100 PSIG 0.9
Recommended Items/Accessories Plug - Model 967 1/4 in. NPT - PN 9000306
Plug - Model 967 3/8 in. NPT Hex Socket - PN 9000373
Seat CTFE (Kel-F®)
Supply Pressure Gauge (PSIG) 4000

Warranty

Warranty 1 Year
View product
