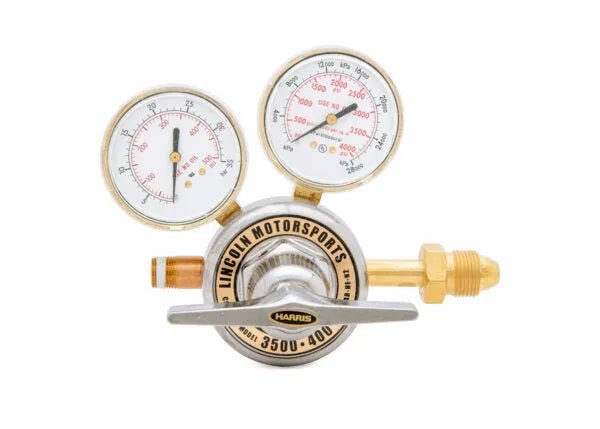

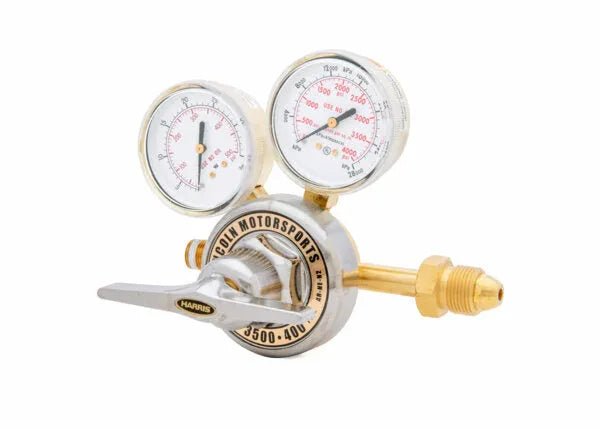

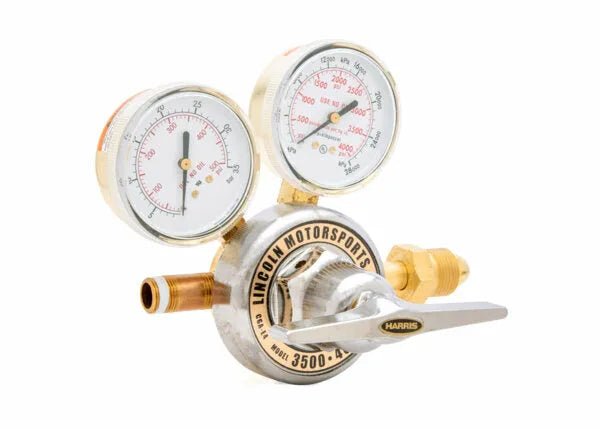

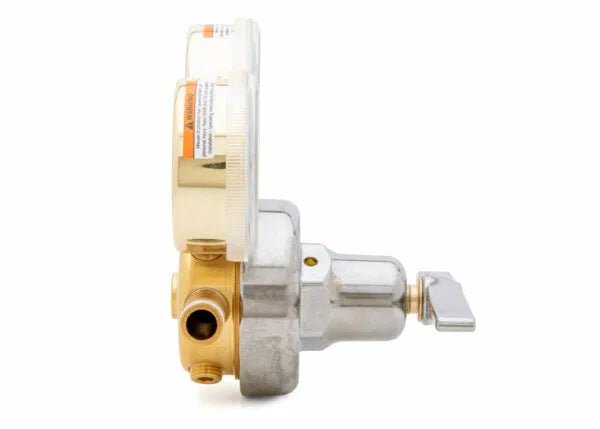

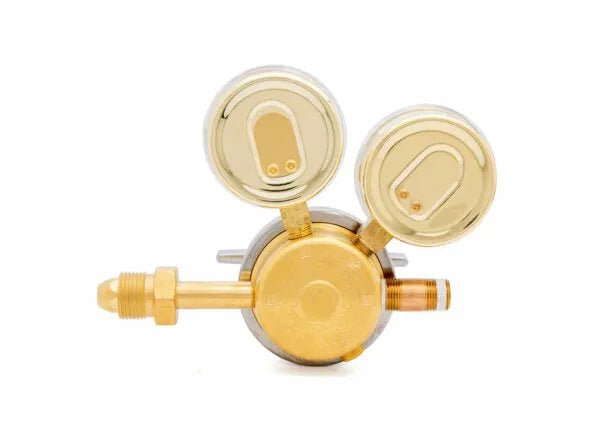

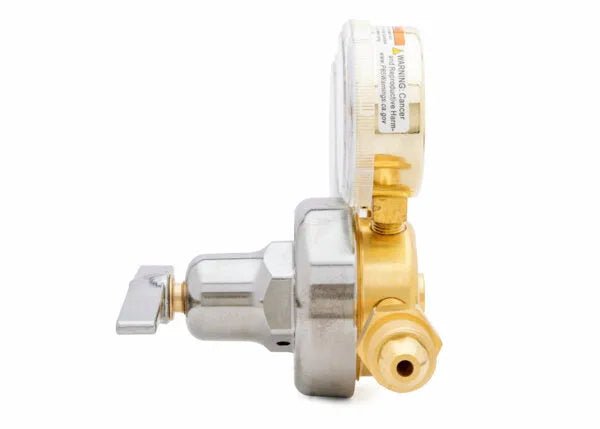

Harris 3500-400-580 Single Stage Argon/Helium/Nitrogen Regulator - 3003538
Model 3500 high-pressure, high-flow Argon/Helium/Nitrogen Regulator is ideal for wheel guns used in NASCAR, IRL and CART racing. It is specifically designed to provide high gas flows from Cylinders and to supply manifold gas systems. It features a 1/4 in. NPT(F) auxiliary delivery port.
Features
- Operates on high pressure Cylinders of up to 3000 PSIG
- Designed for integral pit jack systems common in IRL and CART vehicles and ideal for wheel guns used in NASCAR, IRL and CART racing.
- Easy-to-operate electroless nickel-plated brass T-screw bar adjusting handle
- Electroless nickel-plated brass bonnet and brass body for longer service life
- Large 2.75 in. neoprene diaphragm for improved pressure control
- 2.5 in. Brass dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the CTFE Kel-F seat from particulate contamination
- Equipped with a tamper-proof, self-reseating, internal high pressure safety relief valve
- Equipped with dual outlet ports
- Features 1/4 in. NPT (F) auxiliary delivery port
Specifications
Equipment
| Adjusting Screw | Electroless nickel-plated brass T-screw bar |
| Body | Brass |
| Bonnet | Electroless nickel-plated brass |
| Capacity | High pressure high flow |
| Certification | CGA E-4 |
| Cv | 0.55 |
| Delivery Pressure Gauge (PSIG) | 500 |
| Delivery Pressure Range (PSIG) | 0 - 400 |
| Diaphragm | Neoprene |
| Equipped With | 1/4 in. NPT(F) auxiliary delivery port |
| Gas / Gas Service | Argon Helium Nitrogen |
| Gauges | 2.5 in. Brass dual scale (psi/bar) |
| Inlet Connection | CGA 580 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Outlet Connection | 3/8 in. NPT (M) |
| Pressure Regulation PSIG/100 PSIG | 1.6 |
| Recommended Items/Accessories | Plug - Model 967 1/4 in. - PN 9000306 Plug - Model 967 3/8 in. NPT Hex Socket - PN 9000373 |
| Seat | CTFE (Kel-F®) |
| Supply Pressure Gauge (PSIG) | 4000 |
Warranty
| Warranty | 1 Year |
