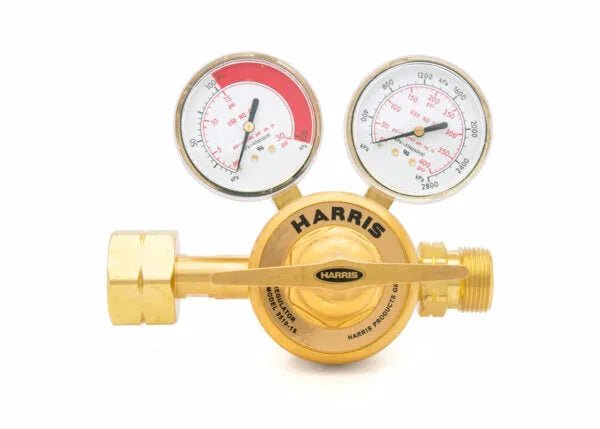

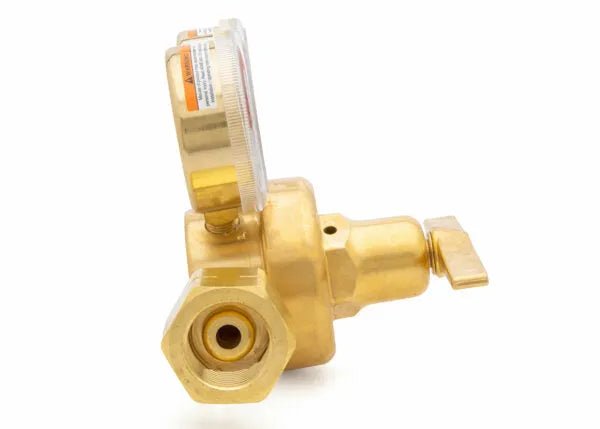

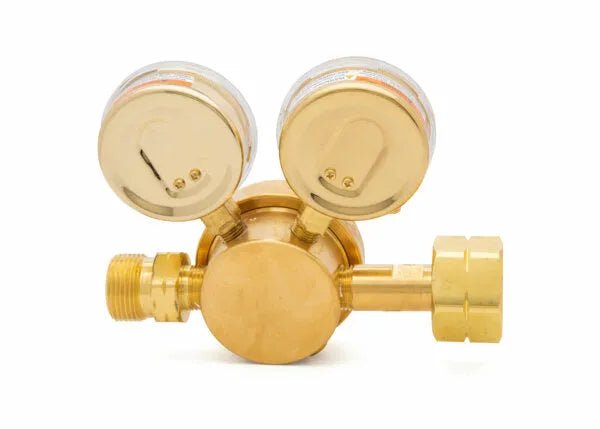

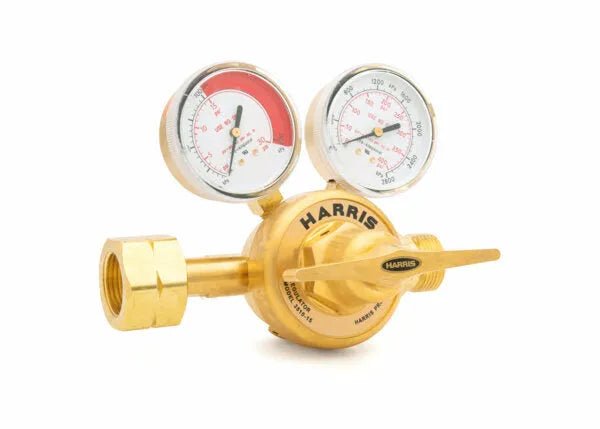

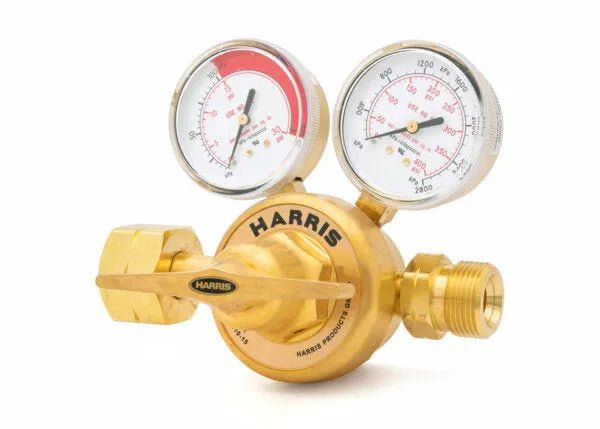

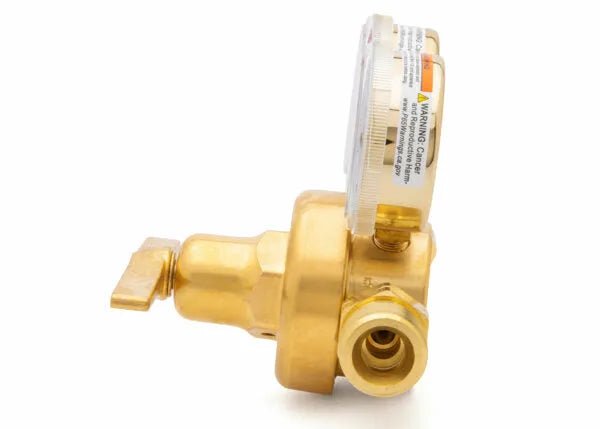

Harris 3510-15 (LH) Single Stage Fuel Gas Regulator - 3003547
Model 3510 is a heavy-duty high flow manifold Fuel Gas Regulator equipped with inlet and outlet connections required on Harris manifold systems. The body ports are ½" NPT for direct mounting in piping systems. The 3510 features both ¼" NPT high-pressure and ¼" NPT low-pressure ports. It features a brass body, bonnet, "T" screw bar handle, 2.5" brass dual scale gauges and a neoprene diaphragm. Model 3510 is equipped with a tamper-proof, self-reseating, high-pressure internal safety relief valve. This model is not for use with high pressure Cylinder gases, such as CGAs 996(RH) and 997(LH),
Features
- High flow manifold Regulator
- Equipped with inlet and outlet connections
- Easy-to-operate brass "T" screw bar adjusting handle
- Brass body and bonnet for longer service life
- Neoprene diaphragm for improved pressure control
- 2.5" Brass dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the neoprene seat from particulate contamination
- Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
- Features 1/4" NPT high-pressure and 1/4" NPT low-pressure ports
- The body ports are 1/2" NPT for direct mounting in piping systems
Specifications
Equipment
| Adjusting Screw | Brass "T" screw bar |
| Body | Brass |
| Bonnet | Brass |
| Certification | CGA E-4 |
| Cv | 0.4 |
| Delivery Pressure Gauge (PSIG) | 30 |
| Delivery Pressure Range (PSIG) | 0 - 15 |
| Diaphragm | Neoprene |
| Duty | Heavy |
| Equipped With | Inlet and outlet connections1/2" NPT body ports 1/4" NPT high and low pressure ports |
| Gas / Gas Service | Fuel Gas - Not for high pressure cylinder gases: CGA Gas 996 (RH) and CGA Gas 997 (LH) |
| Gauges | 2.5" Brass Dual Scale (psi/bar) |
| Inlet Connection | 1.00-11.5 NPS LH (M) |
| Maximum Inlet Pressure (PSIG) | 400 |
| Outlet Connection | 1.00-11.5 NPS LH (F) |
| Pressure Regulation PSIG/100 PSIG | 1.60 psig |
| Seat | Neoprene |
| Supply Pressure Gauge (PSIG) | 400 |
Warranty
| Warranty | 1 Year |
