Model 3510-200 (RH) high-flow heavy duty manifold single-stage Non-Fuel Gas regulator
Gas Type: Non Fuel Gas
Inlet: 1.00-11.5 NPS RH (M)
Outlet: 1.00-11.5 NPS RH (F)
Overview

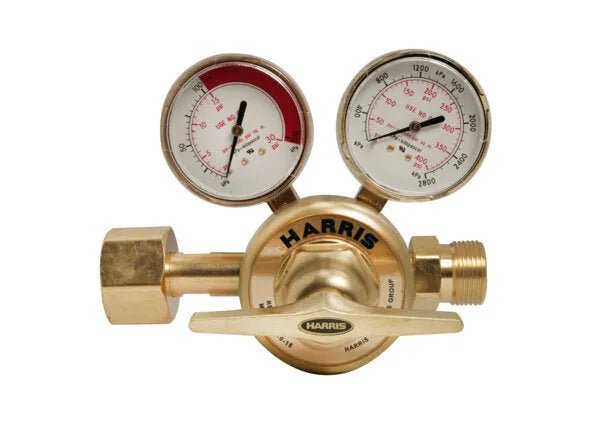

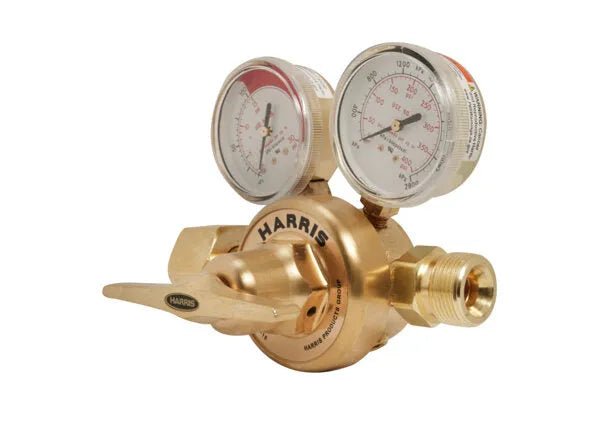

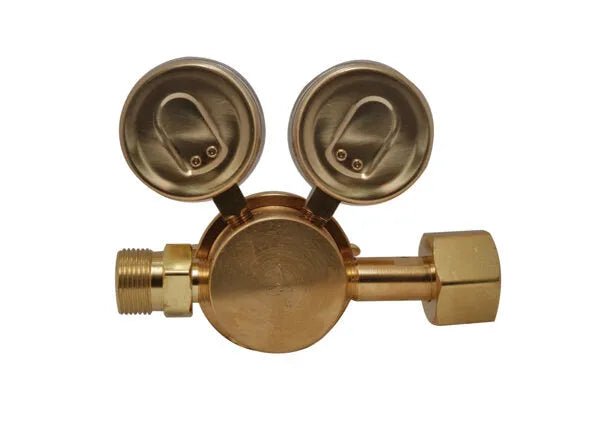

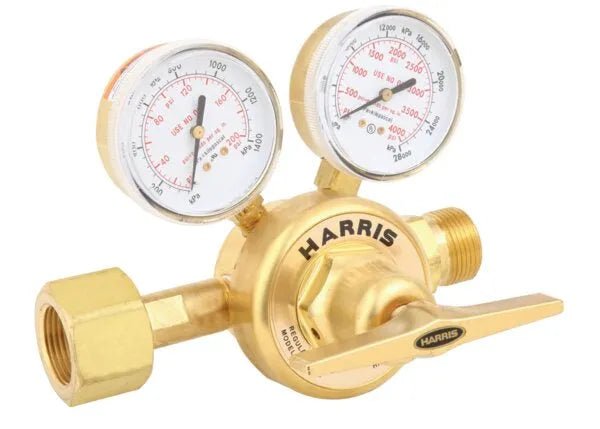

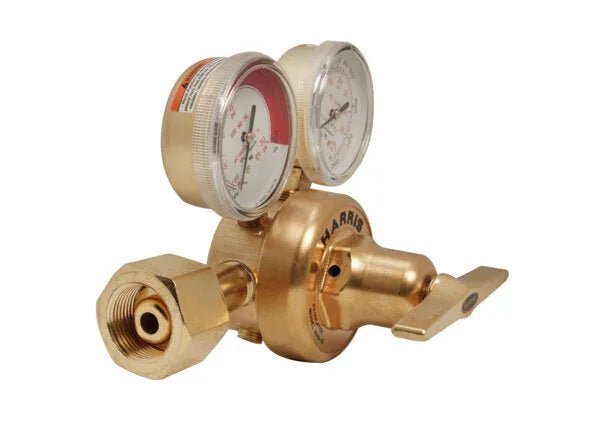

Harris 3510-200 RH Single Stage Non-Fuel Gas Regulator - 3003550

Model 3510 is a heavy-duty high flow manifold Non-Fuel Gas Regulator equipped with inlet and outlet connections required on Harris manifold systems. The body ports are ½" NPT for direct mounting in piping systems. The 3510 features both ¼" NPT high-pressure and ¼" NPT low-pressure ports. It features a brass body, bonnet, "T" screw bar handle, 2.5" brass dual scale gauges and a neoprene diaphragm. Model 3510 is equipped with a tamper-proof, self-reseating, high-pressure internal safety relief valve.

Features
  • High flow manifold Regulator
  • Equipped with inlet and outlet connections
  • Easy-to-operate brass "T" screw bar adjusting handle
  • Brass body and bonnet for longer service life
  • Neoprene diaphragm for improved pressure control
  • 2.5" Brass dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
  • Features 1/4" NPT high-pressure and 1/4" NPT low-pressure ports
  • The body ports are 1/2" NPT for direct mounting in piping systems
Specifications

Equipment

Adjusting Screw Brass "T" screw bar
Body Brass
Bonnet Brass
Certification CGA E-4
Cv 0.55
Delivery Pressure Gauge (PSIG) 400
Delivery Pressure Range (PSIG) 0 - 200
Diaphragm Neoprene
Duty Heavy
Equipped With Inlet and outlet connections
1/2" NPT body ports
1/4" NPT high and low pressure ports
Gas / Gas Service Non-Fuel Gas
Gauges 2.5" Brass Dual Scale (psi/bar)
Inlet Connection 1.00-11.5 NPS RH (M)
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 1.00-11.5 NPS RH (F)
Pressure Regulation PSIG/100 PSIG 1.60 psig
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4000

Warranty

Warranty 1 Year
