Harris 3530 - 4000801 High-Flow Single Gauge Inline Manifold Non-Corrosive Regulator

SKU: 4000801
$489.20 $667.87
Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.

More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.
High flow brass line non corrosive regulator, stainless steel diaphragm, 1/2" NPT ports, 50 PSI with relief valve
Outlet: 1/2" FNPT
Overview

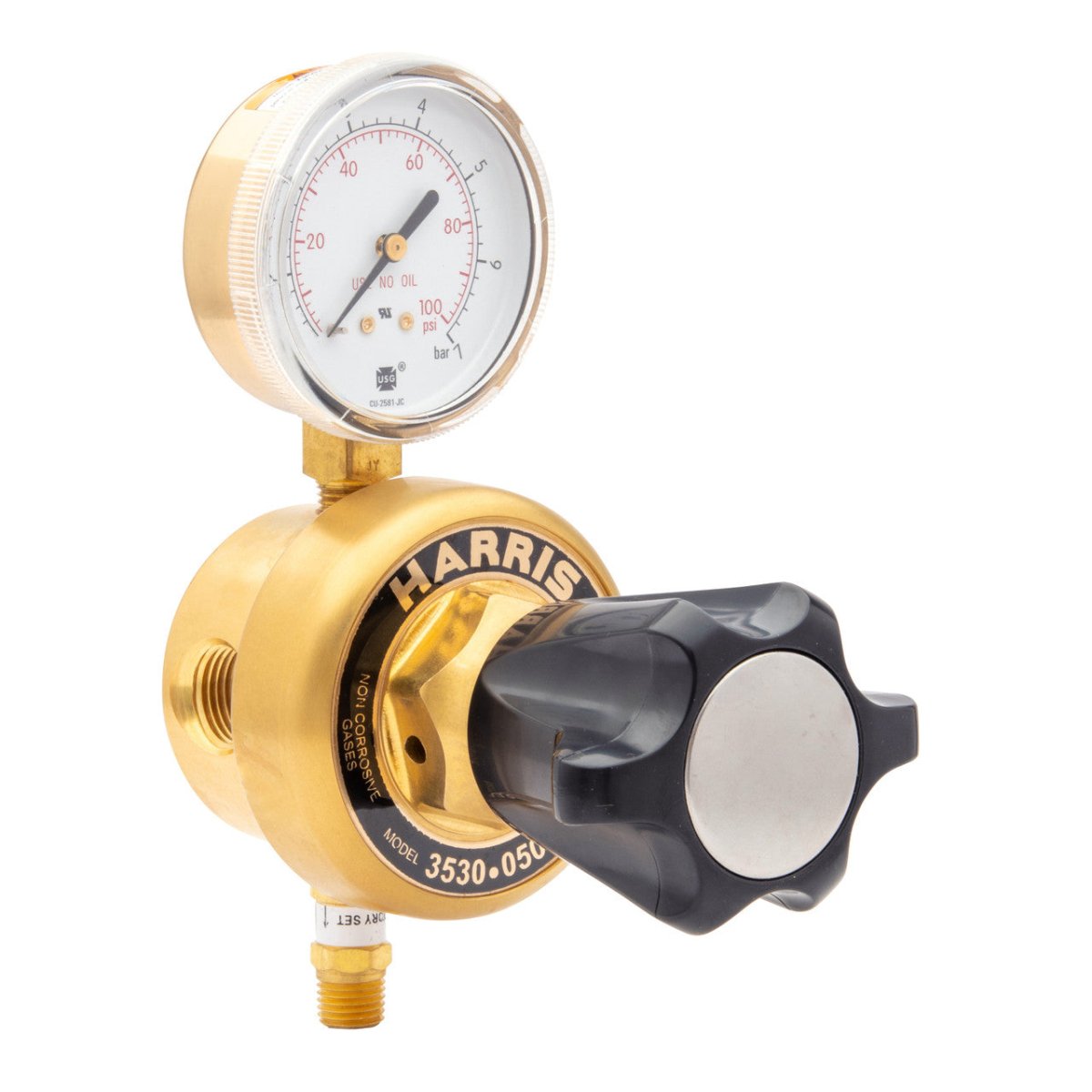

Harris 3530 High-Flow Single Gauge Inline Manifold Non-Corrosive Regulator - 4000801

Model HP3530 is a Brass Barstock line Regulator for pipe line and final line delivery pressure from a source pressures. The Model HP3530 is suitable for non-corrosive gas applications, High Purity gas applications, research sample systems gases, process analyzer gases, bulk gas distribution, packaging, blanketing laser gas systems and emission monitoring systems.

Features
  • 2-3/4” Stainless Steel diaphragm eliminates contamination from diffusion or outgassing
  • One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE Teflon seat from particulate contamination
  • Brass Barstock body, bonnet and fittings
  • 2-1/2” brass dual scale gauge (psi/bar)
  • Four port configuration, one high pressure and three low pressure
  • 1/2” NPT (F) inlet and outlet connections
  • Maximum inlet pressure 3000 PSIG
  • Conforms to CGA E-4 standard for gas pressure Regulators
Specifications

Equipment

Adjusting Knob ABS plastic
Body Brass barstock
Body Ports 4: 1 High Pressure & 3 Low Pressure
Bonnet Brass barstock
Capacity High Flow
Certification CGA E-4
Cv 0.55
Delivery Pressure Gauge (PSIG) 100
Delivery Pressure Range (PSIG) 0 - 50
Diaphragm 2.75" 302 Stainless steel
Equipped With External, self-reseating, captured vent
Filter Nickel-plated sintered bronze – 10 micron
Gas / Gas Service Non-Corrosive
Not for use with Acetylene
Gauges 2.5" Brass dual scale (psi/bar)
Inlet Connection 1/2" FNPT
Maximum Inlet Pressure (PSIG) 3000
Nozzle Brass
Outlet Connection 1/2" FNPT
Outlet Gauge 100 psi/7 bar
Pressure Regulation PSIG/100 PSIG 1.6
Recommended Items/Accessories Cylinder Adaptor Kit – CGA 540 – PN 9103615
Cylinder Adaptor Kit – CGA 580 – PN 9103616
Brass Bushing to Convert Ports– ½” NPT (M) x ¼” NPT (F) – PN 9005806
Seal PTFE Teflon®
Seat PTFE Teflon®
Seat Return Spring PH 17-7 Stainless steel

Warranty

Warranty 1 Year
