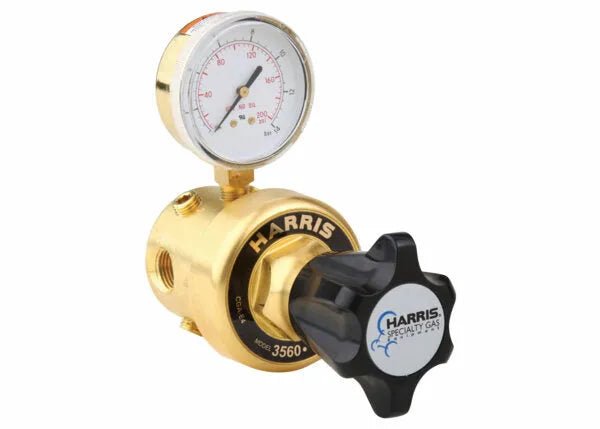

Harris 3560-050 Single Stage Pipeline Regulator - 4000960
Model 3560 is a Single Stage, neoprene diaphragm, brass bar stock Pipeline Regulator This model also has 2.5" brass gauge, a one-piece encapsulated seat design with internal filter and neoprene seat. Designed specifically for applications demanding extremely high gas flows even at low incoming pressures. The Model 3560 features eight functional body ports: two 1/2" NPT and six 1/4" NPT allowing for a wide variety of inlet/outlet and gauge location configurations. Its auxiliary HP gauge port allows the Model 3560 to be used for low-pressure Cylinder applications. This model is rear-panel mountable. Provides ultra-high flows for pipeline, manifold and bulk systems. For use with non-corrosive gases.
Features
- Provides ultra-high flows for pipeline, manifold and bulk systems
- Brass bar stock body and bonnet for longer service life
- Neoprene diaphragm for improved pressure control
- One-piece encapsulated seat design with internal filter to protect the neoprene seat from particulate contamination
- Ergonomic ABS plastic knob for easy adjustments
- 2.5" brass dual scale (psi/bar) easy-to-read gauge
- 8 ports: (2) 1/2" NPT, (6) 1/4" NPT
- 1/2" NPT (F) inlet/outlet connections
- CGA E-4 certified
- Rear panel mountable
Specifications
Equipment
| Adjusting Knob | ABS plastic |
| Body | Brass barstock |
| Bonnet | Brass barstock |
| Capacity | Ultra high-flow |
| Certification | CGA E-4 |
| Cv | 1.0 |
| Delivery Pressure Gauge (PSIG) | 100 |
| Delivery Pressure Range (PSIG) | 0 - 50 |
| Diaphragm | Neoprene |
| Gas / Gas Service | Non-Corrosive |
| Gauges | 2.5" Brass dual scale (psi/bar) |
| Inlet Connection | 1/2" NPT (F) |
| Maximum Inlet Pressure (PSIG) | 500 |
| Mounting Location | Rear panel mountable |
| Outlet Connection | 1/2" NPT (F) |
| Pressure Regulation PSIG/100 PSIG | 5.5 |
| Recommended Items/Accessories | Brass Bushing – ¼” NPT (F) x ½” NPT (M) – PN 9005806; Brass Plug – ¼” NPT hex socket – PN 9000495 |
| Seat | Neoprene |
Warranty
| Warranty | 1 Year |
