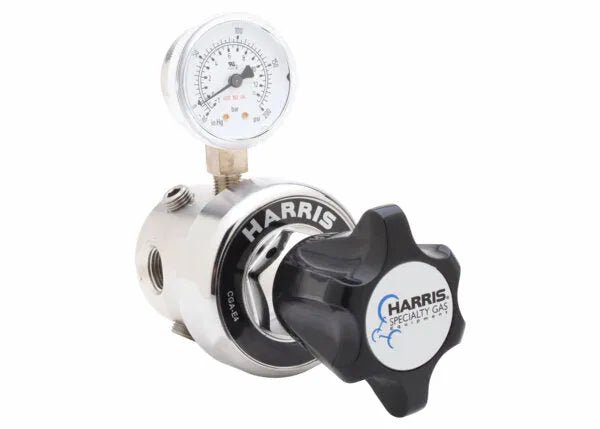

Harris 3590-250 Ultra High Flow Single Stage Pipeline Regulator - 4000976
Model 3590 is a Single Stage, Stainless Steel diaphragm, Stainless Steel bar stock body Regulator This model also has 2" Stainless Steel gauge, a one-piece encapsulated seat design with internal filter and PTFE Teflon seat. Designed specifically for applications demanding extremely high gas flows at low incoming pressures. The Model 3590 features eight functional body ports: two 1/2" NPT and six 1/4" NPT allowing for a wide variety of inlet/outlet and gauge location configurations. Its auxiliary HP gauge port allows the Model 3590 to be used for low-pressure Cylinder applications. This model is rear-panel mountable. Provides ultra-high flows for pipeline, manifold and bulk systems. For use with atmospheric or mildly corrosive gases.
Features
- Provides ultra-high flows for pipeline, manifold and bulk systems
- Stainless Steel bar stock body and bonnet for longer service life
- Stainless Steel diaphragm for corrosion resistance and low leakage rate
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Ergonomic ABS plastic knob for easy adjustments
- 2" Stainless Steel dual scale (psi/bar) easy-to-read gauge
- 8 ports: (2) 1/2" NPT, (6) 1/4" NPT
- 1/2" NPT (F) inlet/outlet connections
- CGA E-4 certified
- Rear panel mountable
Specifications
Equipment
| Adjusting Knob | ABS plastic |
| Body | Stainless steel barstock |
| Bonnet | Stainless steel barstock |
| Capacity | Ultra high flow |
| Certification | CGA E-4 |
| Cv | 1.0 |
| Delivery Pressure Gauge (PSIG) | 400 |
| Delivery Pressure Range (PSIG) | 0 - 250 |
| Diaphragm | Stainless steel |
| Gas / Gas Service | Atmospheric or Mildly Corrosive |
| Gauges | 2" Stainless steel dual scale (psi/bar) |
| Inlet Connection | 1/2" NPT (F) |
| Maximum Inlet Pressure (PSIG) | 500 |
| Mounting Location | Rear panel mountable |
| Outlet Connection | 1/2" NPT (F) |
| Outlet Gauge | 1/2" NPT (F) |
| Pressure Regulation PSIG/100 PSIG | 5.5 |
| Recommended Items/Accessories | Stainless Steel Bushing – ¼” NPT (F) x ½” NPT (M) – PN 9005752 Stainless Steel Plug - ¼” NPT hex socket – PN 9000553 |
| Seat | PTFE Teflon® |
Warranty
| Warranty | 1 Year |
