What is the Harris 40R61 40/60 Leaded Rosin-Core Solder - 1/8 in (3.2 mm) - 1 lb Spool used for?

Solder is used for joining metal components at temperatures below 840°F (450°C) in plumbing, electronics, and light metal fabrication. Select the solder based on your application: lead-free is required for potable water plumbing; tin-lead solders are still used in electronics repair and non-potable applications where permitted by code.

Does the Harris 40R61 40/60 Leaded Rosin-Core Solder - 1/8 in (3.2 mm) - 1 lb Spool require separate flux?

A separate flux must be applied to clean joint surfaces before soldering with wire or bar solder. Harris Bridgit Flux or a similar non-corrosive paste flux is recommended for plumbing copper joints. Apply flux to all contact surfaces, assemble the joint, then heat the base metal and touch solder to the joint — the solder flows by capillary action into the flux-wetted gap. Remove flux residue after the joint cools.

What is the correct soldering technique for the Harris 40R61 40/60 Leaded Rosin-Core Solder - 1/8 in (3.2 mm) - 1 lb Spool?

Soldering technique for copper plumbing: clean pipe and fitting surfaces with sandpaper or steel wool until bright, apply paste flux, assemble the joint, and heat the fitting (not the solder) with a torch until solder flows freely when touched to the joint. Remove heat as soon as the solder flows — overheating burns the flux and can cause a dry joint or oxidized solder. Allow to cool for 30 seconds before wiping and moving the assembly.

What diameter and quantity is the Harris 40R61 40/60 Leaded Rosin-Core Solder - 1/8 in (3.2 mm) - 1 lb Spool available in?

The Harris 40R61 40/60 Leaded Rosin-Core Solder - 1/8 in (3.2 mm) - 1 lb Spool is available in 1/8 diameter. Wire solder diameter selection depends on the joint size: fine wire (.050–.062 in) suits electronics and tight plumbing fittings; medium wire (.093–.125 in) is the most versatile for general plumbing work; larger diameter wire suits large-bore fittings and faster deposition.

How should I store the Harris 40R61 40/60 Leaded Rosin-Core Solder - 1/8 in (3.2 mm) - 1 lb Spool?

Store solder in a cool, dry location away from moisture and chemical fumes. Lead-free solders containing silver (Sn-Ag, Sn-Ag-Cu) are more brittle than traditional tin-lead solders and should be handled with care to avoid cracking the wire on the spool. Flux-core solder should be stored away from extreme heat to prevent flux degradation inside the core.

Harris Welding Wire 1/8" – 1 lb

SKU: 40R61

$35.27 ~~$40.00~~

Factory Direct

Free Shipping over $250

Lowest Price

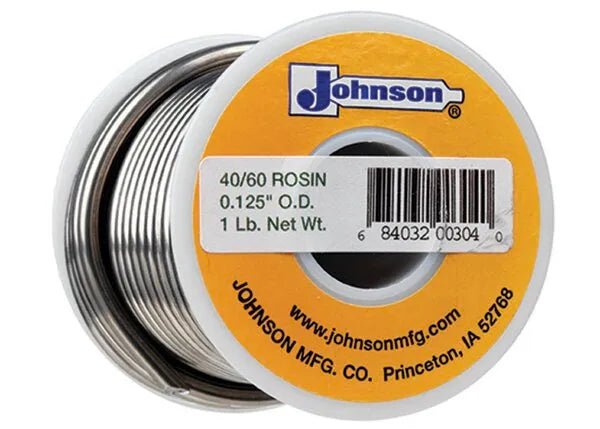

40/60 leaded rosin core solder 1/8 in. x 1 ea. 1 lb. spool

Overview

40/60 tin-lead rosin core solder contains a 2.2% rosin core center. It is a popular choice for soldering electrical and electronic connections. Generally, rosin core solders are used for small connections, as there is a limited amount of flux available for protection of large surface areas. Heat sources include soldering guns, irons, and air-fuel torches. Lead bearing solders are not to be used in potable water system applications.

Features

Rosin-core base eliminates the need for manual flux application
Used for soldering electrical and electronic connections
Primarily used for small connections due to the limited amount of flux available
Heat sources include soldering guns, irons and air-fuel torches
Not for use with plumbing and potable water system applications
Meets ASTM B-32 specifications;Alloy Grade Sn40A;WOAP2

Reviews

Q&A

Product Overview

Features

Rosin-core base eliminates the need for manual flux application
Used for soldering electrical and electronic connections
Primarily used for small connections due to the limited amount of flux available
Heat sources include soldering guns, irons and air-fuel torches
Not for use with plumbing and potable water system applications
Meets ASTM B-32 specifications;Alloy Grade Sn40A;WOAP2
