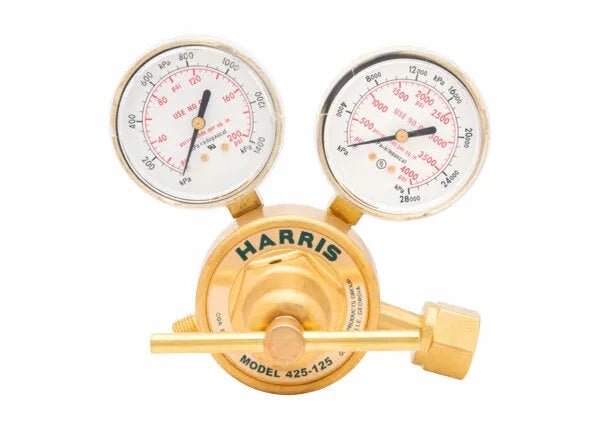

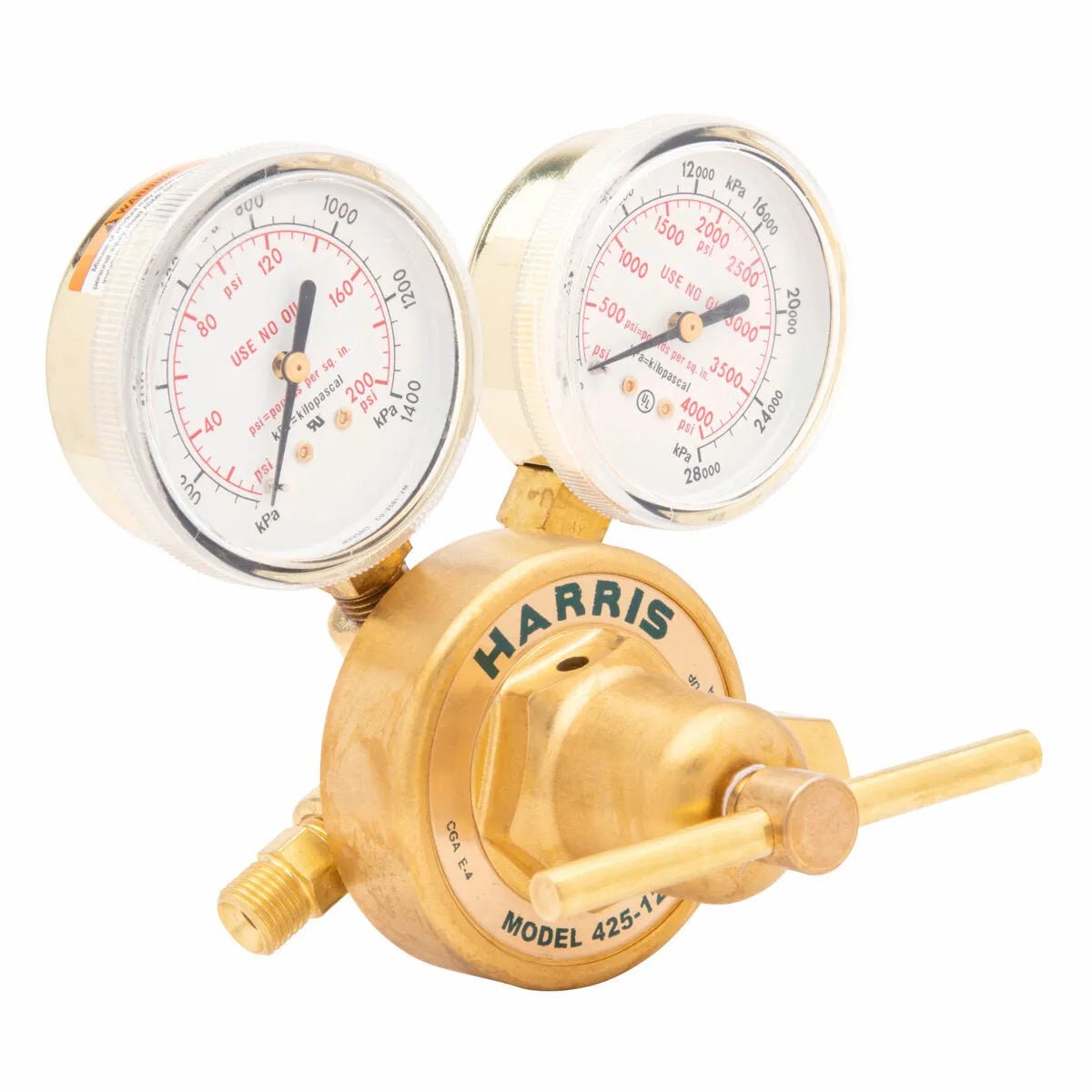

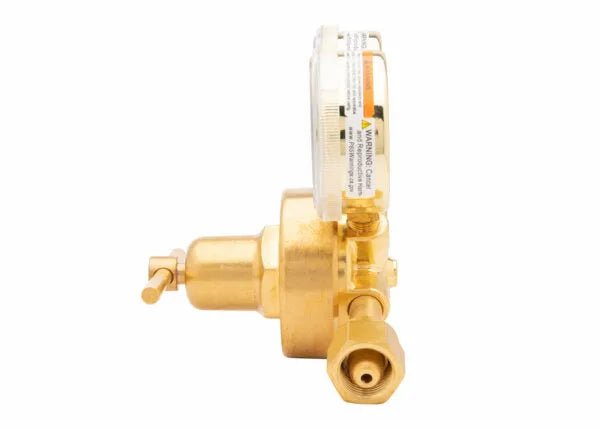

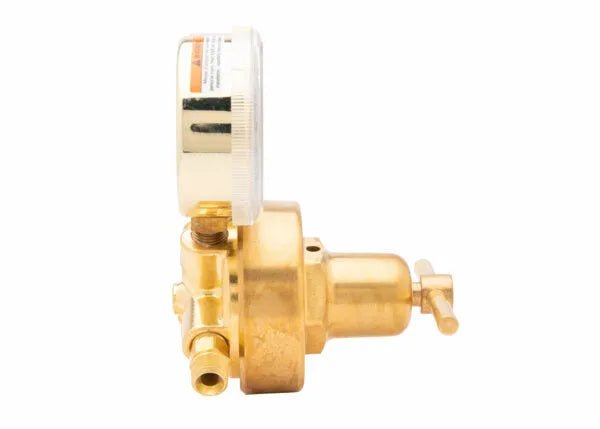

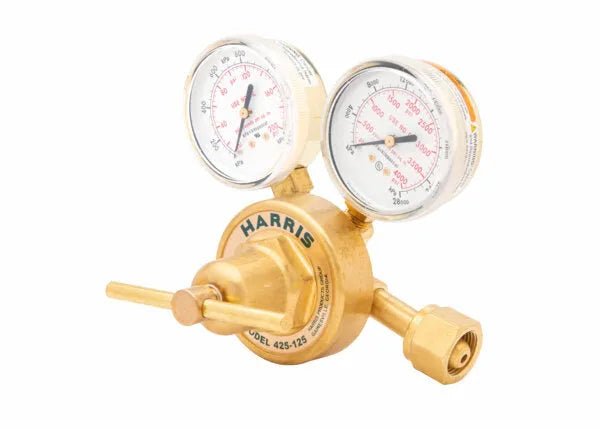

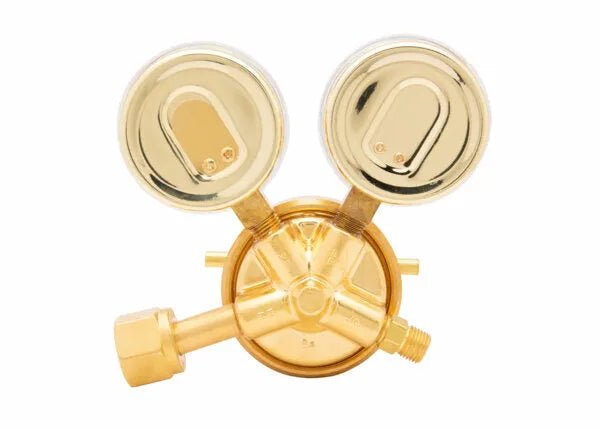

Harris 425-125-540 Premium Single Stage Oxygen Regulator - 3000714
Model 425 is a premium, single-stage, industrial oxygen regulator that is an ideal choice for most industrial applications. This regulator incorporates a number of Harris features designed to make it a rugged, long-lasting performer, including an exclusive tamper-proof, self-reseating internal HP safety valve and a neoprene diaphragm. The 425 is also available in a multitude of pressure ranges and for all standard industry gases.
Features
- Single-stage industrial regulator with premium features
- Designed for rugged, long-lasting performance
- Easy-to-operate brass T-screw adjusting handle
- Brass body and bonnet for longer service life
- Neoprene diaphragm for improved pressure control
- 2.5 in. Brass dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
- UL® listed
- Equipped with a tamper-proof, self-reseating internal safety relief valve
- Accessories available: Steel Gauge Guard - Red (Fuel) - PN 4300238;Steel Gauge Guard - Green (Oxygen) - PN 4300239;Adapter - 9/16 in. – 18 (F) x 5/8 in. – 18 (F) PN 90000002
Specifications
Equipment
| Adjusting Screw | Brass T-screw |
| Body | Brass |
| Bonnet | Brass |
| Certification | CGA E-4, UL® listed |
| Cv | 0.17 |
| Delivery Pressure Gauge (PSIG) | 200 |
| Delivery Pressure Range (PSIG) | 0 - 125 |
| Diaphragm | Neoprene |
| Duty | Heavy |
| Equipped With | Tamper proof, self-reseating, internal high-pressure safety valve |
| Gas / Gas Service | Oxygen |
| Gauges | 2.5 in. brass dual scale (psi/kPa) |
| Inlet Connection | CGA 540 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Outlet Connection | 9/16 in. - 18 RH |
| Pressure Regulation PSIG/100 PSIG | 0.2 |
| Recommended Items/Accessories | Steel Gauge Guard - Red (Fuel) - PN 4300238 Steel Gauge Guard - Green (Oxygen) - PN 4300239 Adapter - 9/16 in. - 18 (F) x 5/8 in. - 18 (F) PN 90000002 |
| Seat | PTFE Teflon® |
| Supply Pressure Gauge (PSIG) | 4000 |
| Typical Application | Industrial applications |
Warranty
| Warranty | 7 Years |
