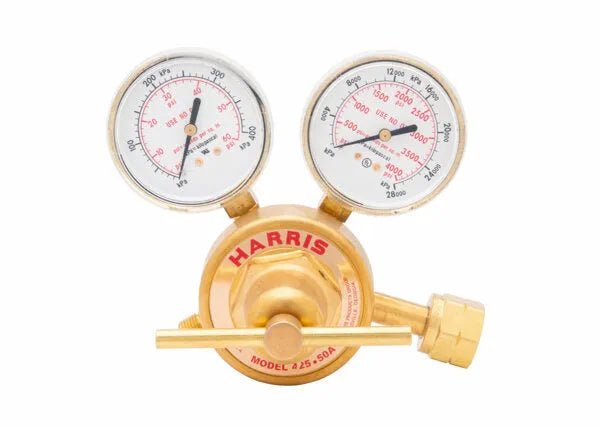

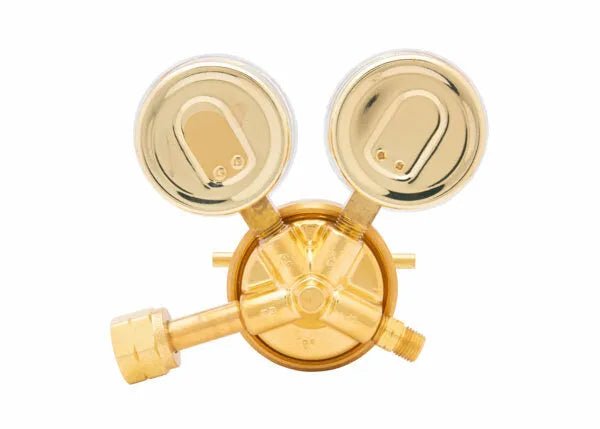

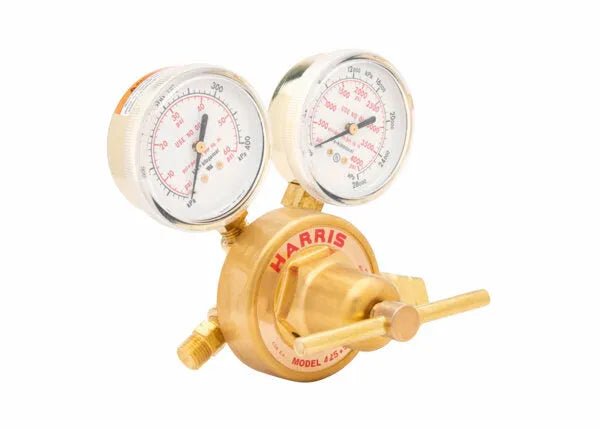

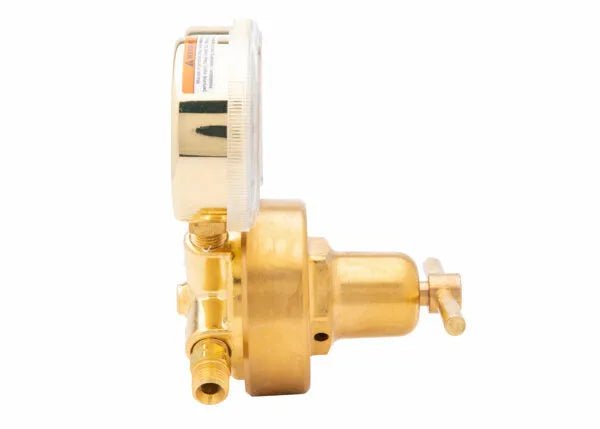

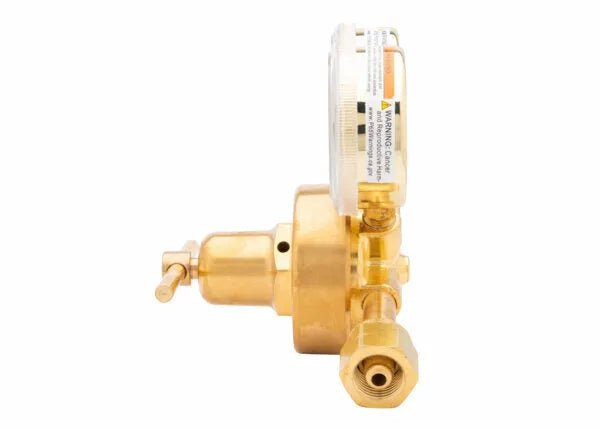

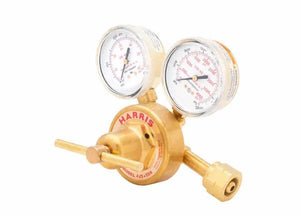

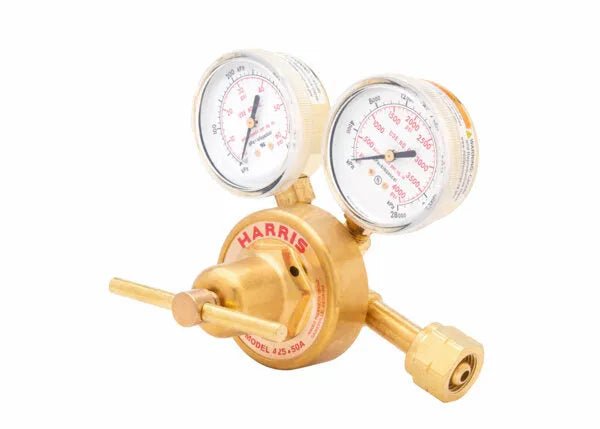

Harris 425-50A-350 Premium Single Stage Hydrogen/Methane Regulator - 3000784
Model 425 is a premium, Single Stage, industrial Hydrogen/Methane Regulator that is an ideal choice for most industrial applications. This Regulator incorporates a number of Harris features designed to make it a rugged, long-lasting performer, including an exclusive tamper-proof, self-reseating internal HP safety valve and a neoprene diaphragm. The 425 is also available in a multitude of pressure ranges and for all standard industry gases.
Features
- Single Stage industrial Regulator with premium features
- Designed for rugged, long-lasting performance
- Easy-to-operate brass "T" screw adjusting handle
- Brass body and bonnet for longer service life
- Neoprene diaphragm for improved pressure control
- 2.5" Brass dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- UL listed
- Equipped with a tamper-proof, self-reseating internal safety relief valve
Specifications
Equipment
Adjusting Screw | Brass "T" screw |
Body | Brass |
Bonnet | Brass |
Certification | CGA E-4 UL® listed |
Cv | 0.17 |
Delivery Pressure Gauge (PSIG) | 60 |
Delivery Pressure Range (PSIG) | 0 - 50 |
Diaphragm | Neoprene |
Duty | Heavy |
Equipped With | Tamper proof, self-reseating, internal high-pressure safety valve |
Gas / Gas Service | Hydrogen,Methane |
Gauges | 2.5" Brass dual scale (psi/kPa) |
Inlet Connection | CGA 350 |
Maximum Inlet Pressure (PSIG) | 3000 |
Outlet Connection | 9/16" - 18 LH |
Pressure Regulation PSIG/100 PSIG | 0.20 |
Recommended Items/Accessories | Steel Gauge Guard - Red (Fuel) - PN 4300238 Steel Gauge Guard - Green (Oxygen) - PN 4300239 Adapter - 9/16” – 18 (F) x 5/8" – 18 (F) PN 90000002 |
Seat | PTFE Teflon® |
Supply Pressure Gauge (PSIG) | 4000 |
Warranty
Warranty | 7 Years |
