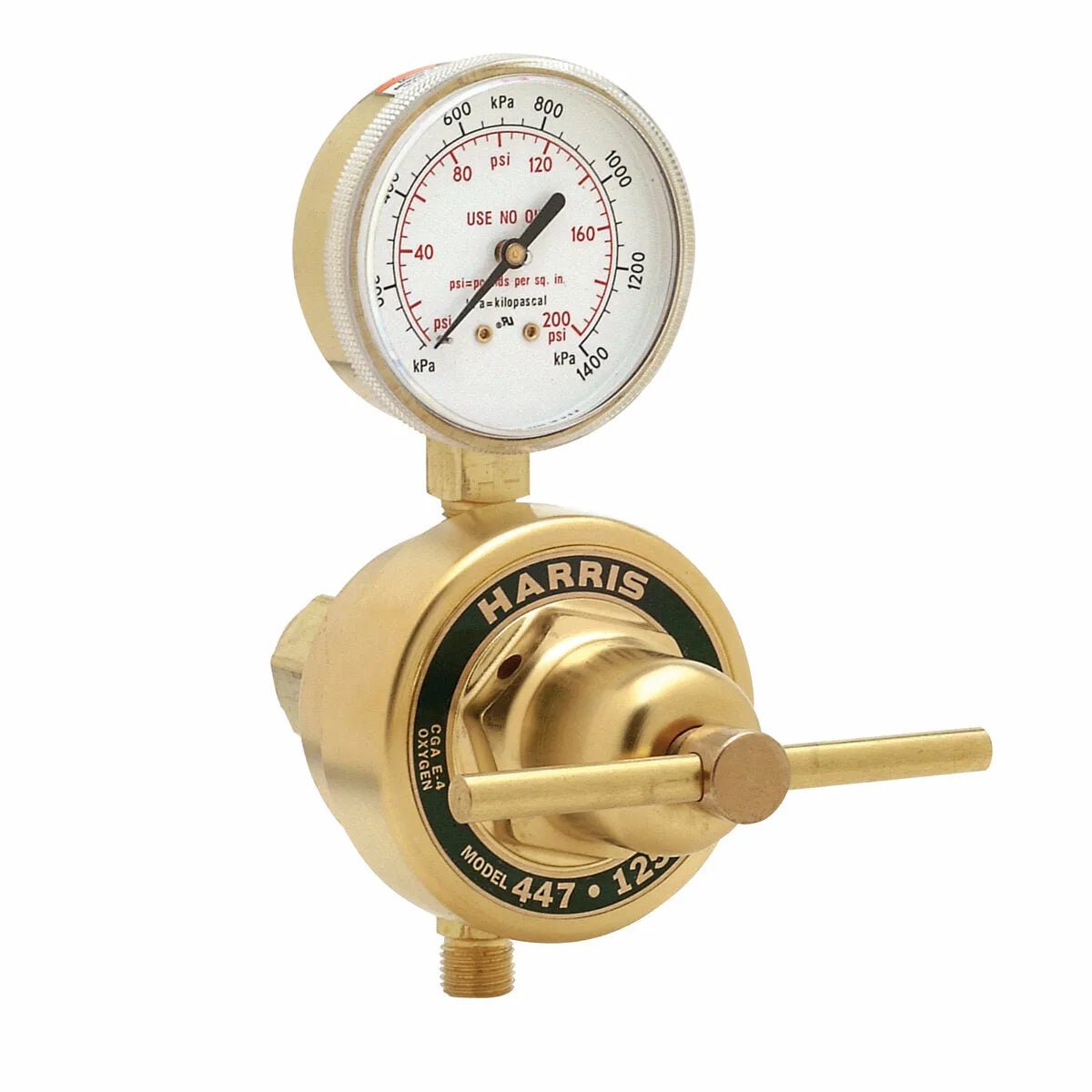

Harris 447-125-CR Station Single Stage Oxygen Regulator Right Hand - 4000555
Model 447 regulator is designed to deliver high gas flows from piping systems that are equipped with station regulator connections. This heavy-duty, high flow, station regulator has back entry access and a "C" (7/8 in. - 14 in.) inlet connection. It features a brass body and bonnet, 2.5 in. dual scale brass gauge, brass "T" screw adjustment handle and one-piece encapsulated seat design with internal filter and Teflon® seat.
Features
- Provides high gas flows for piping systems
- Designed to work with back-entry station regulator connections
- Easy-to-operate brass "T" screw handle
- Forged brass body and bonnet for longer service life
- Rubber diaphragm for better pressure control
- 2.5 in. Brass-plated steel dual scale (psi/kPa) easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
- 7/8 in. - 14 RH (F) - 024 inlet connection
- 9/16 in. - 18 RH outlet connection
- Conforms to CGA E-4
