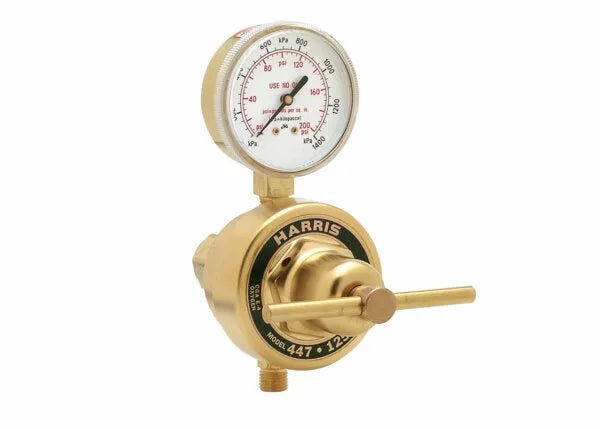

Harris 447NC-15-1/4 in. LH Pipeline Single Stage Fuel Gas Regulator - 4000569
Model 447NC Regulator is designed to deliver high gas flows from piping systems that are equipped with standard pipe connection outlets. This heavy-duty, high flow, pipeline Fuel Gas Regulator has back entry access and a 1/4 in. NPT inlet connection. It features a brass body and bonnet, 2.5 in. dual scale brass gauge, brass T-screw adjustment handle and one-piece encapsulated seat design with internal filter and neoprene seat.
Features
- Provides high gas flows for piping systems
- Designed to work with back-entry standard pipe connection outlets
- Easy-to-operate brass T-screw handle adjusting handle
- Forged brass body and bonnet for longer service life
- Neoprene diaphragm for improved pressure control
- 2.5 in. Brass-plated steel dual scale (PSI/kPa) easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the neoprene seat from particulate contamination
- 1/4 in. NPT (F) inlet connection
- 9/16 in. - 18 LH outlet connection
- Conforms to CGA E-4 standard
