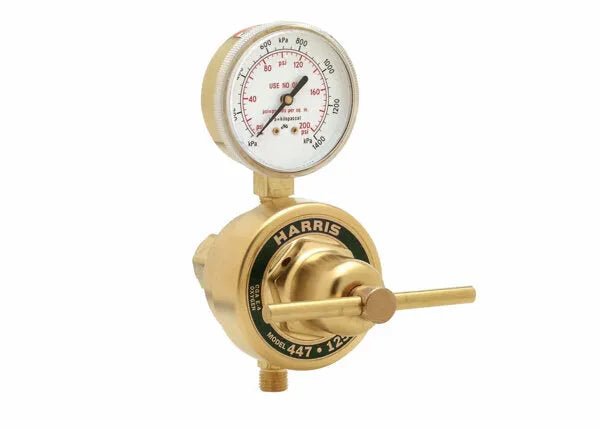

Harris 447NC-15-1/4" RH Pipeline Single Stage Oxygen Regulator - 4000579
Model 447NC Regulator is designed to deliver high gas flows from piping systems that are equipped with standard pipe connection outlets. This heavy-duty, high flow, pipeline Oxygen Regulator has back entry access and a 1/4" NPT inlet connection. It features a brass body and bonnet, 2.5" dual scale brass gauge, brass "T" screw adjustment handle and one-piece encapsulated seat design with internal filter and neoprene seat.
Features
- Provides high gas flows for piping systems
- Designed to work with back-entry standard pipe connection outlets
- Easy-to-operate brass "T" screw handle
- Forged brass body and bonnet for longer service life
- Rubber diaphragm for better pressure control
- 2.5" Brass-plated steel dual scale (psi/kPa) easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the neoprene seat from particulate contamination
- 1/4" NPT (F) inlet connection
- 9/16" - 18 RH outlet connection
- Conforms to CGA E-4
Specifications
Equipment
| Adjusting Screw | Brass “T” screw handle |
| Body | Forged brass |
| Bonnet | Forged brass |
| Capacity | High flow |
| Certification | CGA E-4 |
| Cv | 0.53 |
| Delivery Pressure Gauge (PSIG) | 30 |
| Delivery Pressure Range (PSIG) | 0 - 15 |
| Duty | Heavy |
| Gas / Gas Service | Oxygen |
| Gauges | 2.5" Brass-plated steel dual scale (psi/kPa) |
| Inlet Connection | 1/4" NPT (F) |
| Maximum Inlet Pressure (PSIG) | 500 |
| Outlet Connection | 9/16" - 18 RH |
| Pressure Regulation PSIG/100 PSIG | 1.6 |
| Seat | Neoprene |
Warranty
| Warranty | 7 Years |
