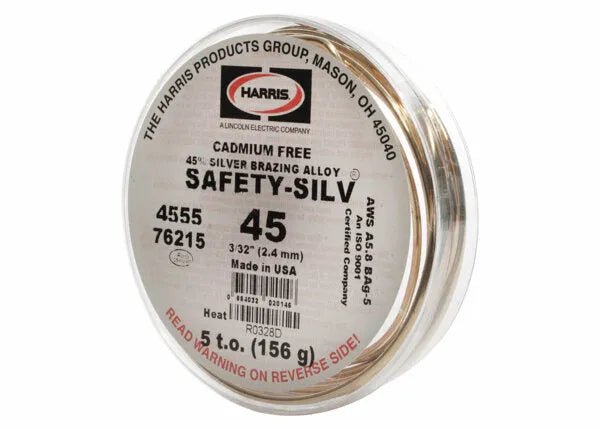

Safety-Silv 45 is an excellent general-purpose high silver brazing filler metal. Used for decades, this alloy is a popular choice for brazing copper, brass, steel, and Stainless Steel. A cadmium-free filler metal with a melting range of approximately 145◦F, Safety-Silv 45 provides good fillet forming qualities and is suitable for filling loose connections. This filler metal has excellent joint strength and ductility at a moderately higher temperature. Preferred base metal clearance range is 0.003 in. - 0.006 in. Color is silver to light yellow. Conforms to the EU Reach & RoHS directive.
Features
- General purpose, cadmium-free silver brazing alloy
- Excellent joint strength and ductility at moderately higher temperature with a melting range of approximately 145◦F (63°C)
- Good ductility and capillary flow
- Fillet forming qualities are suitable for filling loose connections
- Recommended joint clearance of 0.003 in. - 0.006 in. (0.08 mm - 0.15 mm)
- Popular choice to braze copper, brass, steel and Stainless Steel
- Fluidity rating of 6.5
- Complies with the EU Reach & RoHS directive
