What is the correct technique for brazing with the Harris 45T350 - Safety-Silv 45T Silver Brazing Alloy - 1/16 in (1.6 mm) - 50 toz Box?

Proper joint preparation is critical for sound brazed joints: clean all joint surfaces to remove oil, oxide, and scale using emery cloth or a wire brush. Maintain proper joint clearance for capillary flow. Heat the base metal — not the filler rod — to brazing temperature before touching the rod to the joint. The heat-to-flow sequence ensures proper capillary action. Allow the joint to air cool before quenching to avoid thermal shock cracking.

Harris 45T350 - Safety-Silv 45T Silver Brazing Alloy - 1/16 in (1.6 mm) - 50 toz Box

Q: What is the Harris 45T350 - Safety-Silv 45T Silver Brazing Alloy - 1/16 in (1.6 mm) - 50 toz Box used for?

The Harris 45T350 - Safety-Silv 45T Silver Brazing Alloy - 1/16 in (1.6 mm) - 50 toz Box is a silver brazing alloy (Safety-Silv 45). Silver brazing alloys produce strong, ductile joints on ferrous metals, copper, copper alloys, and many dissimilar metal combinations. They flow at lower temperatures than conventional copper-phosphorus alloys, reducing base metal distortion. Always use the appropriate brazing flux (Harris Stay-Silv White or Black Flux) with silver brazing alloys.

Q: What diameter is the Harris 45T350 - Safety-Silv 45T Silver Brazing Alloy - 1/16 in (1.6 mm) - 50 toz Box available in?

The Harris 45T350 - Safety-Silv 45T Silver Brazing Alloy - 1/16 in (1.6 mm) - 50 toz Box is available in 1/16 diameter. Rod or wire diameter selection depends on joint gap clearance and feeding method: narrow-gap joints with tight clearances benefit from thinner rod (easier to feed into the joint), while larger-gap joints require more filler and may work better with thicker rod. Pre-placed rings or preforms are available for production brazing of consistent joint geometries.

Q: Does the Harris 45T350 - Safety-Silv 45T Silver Brazing Alloy - 1/16 in (1.6 mm) - 50 toz Box require brazing flux?

Silver brazing alloys require a compatible brazing flux to prevent oxidation during heating and to aid flow. Harris Stay-Silv White Flux is recommended for most silver brazing applications at brazing temperatures up to approximately 1600°F. For higher-temperature alloys or extended-cycle brazing, Stay-Silv Black Flux handles temperatures up to approximately 1800°F. Apply flux to all base metal surfaces before heating.

Q: What package size is the Harris 45T350 - Safety-Silv 45T Silver Brazing Alloy - 1/16 in (1.6 mm) - 50 toz Box available in, and how should I store it?

Brazing alloys are sold in various rod lengths and weights — common sizes include 1 lb, 5 lb, and 25 lb packages. Store in a dry location free from oil and solvent contamination. Silver brazing alloys are stable at room temperature and do not require special controlled-atmosphere storage. Keep surfaces clean to ensure proper flux adhesion and capillary flow.

SKU: 45T350

$5,099.00

Financing Options

•

As low as …/mo with.

•

Loading Affirm Estimate…

Factory Direct

Free Shipping

Lowest Price

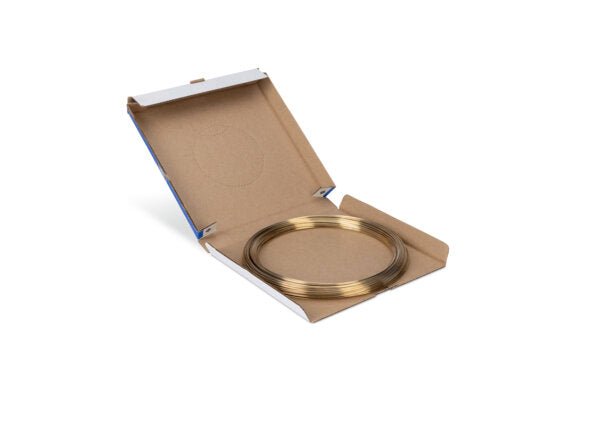

Safety-Silv 45T high silver brazing alloy 1/16 in. x 1 ea. 50 toz. coil/box

Certification: ANSI/AWS A5.8;ASME SFA 5.8;Class BAg-36

Overview

Safety-Silv® 45T silver brazing alloy performs like a 45% silver cadmium-bearing alloy, but is cadmium-free. It is often specified in place of the popular Safety-Silv® 45 (AWS BAg-5), as the tin addition lowers the melting temperature to improve flow characteristics. It has a lower melting temperature than Safety-Silv® 45. Its excellent fillet-forming qualities produces high-strength, ductile joints. Certified to NSF Standard 51. Conforms to the EU Reach & RoHS directive.

Features

Cadmium-free silver brazing alloy
Performs like a 45% silver cadmium-bearing alloy
Lower melting temperature than Safety-Silv® 45
Good flow properties
Produces high-strength ductile joints
Popular choice to braze copper, brass and steel
Meets NSF/ANSI Standard 51 for food equipment materials
Complies with the EU Reach & RoHS directive

Reviews

Q&A

Product Overview

Features

Cadmium-free silver brazing alloy
Performs like a 45% silver cadmium-bearing alloy
Lower melting temperature than Safety-Silv® 45
Good flow properties
Produces high-strength ductile joints
Popular choice to braze copper, brass and steel
Meets NSF/ANSI Standard 51 for food equipment materials
Complies with the EU Reach & RoHS directive
