What diameter is the Harris 5356 GTAW Aluminum Welding TIG Rody 1/16 36 10 lb BOX - 0535630 available in, and how do I choose the right size?

The Harris 5356 GTAW Aluminum Welding TIG Rody 1/16 36 10 lb BOX - 0535630 is available in 1/16 diameter. Rod diameter selection depends on the base metal thickness and the amperage being used: 1/16 in (1.6 mm) rods suit light gauge up to 3/16 in at 60–130A; 3/32 in (2.4 mm) rods cover 3/16 in–1/2 in material; 1/8 in (3.2 mm) rods are used for heavier sections at 130–250A+. As a general rule, rod diameter should be close to or slightly smaller than base metal thickness.

What shielding gas should I use with the Harris 5356 GTAW Aluminum Welding TIG Rody 1/16 36 10 lb BOX - 0535630?

TIG welding shielding gas selection: use pure argon (99.995% purity) for most TIG applications including steel, stainless, aluminum, and titanium. Helium additions (25–75% He/Ar mix) increase heat input and travel speed for heavy section work and aluminum welding where higher deposition is needed. Never use CO2 or mixed gases designed for MIG welding in TIG torches.

What is the AWS classification of the Harris 5356 GTAW Aluminum Welding TIG Rody 1/16 36 10 lb BOX - 0535630?

TIG filler rods carry an AWS classification (e.g., ER70S-2 for mild steel, ER308L for 304 stainless, ER4043 for aluminum) that specifies the chemical composition and mechanical properties of the deposited weld metal. Always verify the AWS class when writing or qualifying a Welding Procedure Specification (WPS) for code work.

1 2

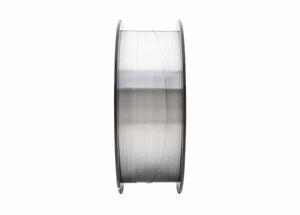

Harris 5356 GTAW Aluminum Welding TIG Rody 1/16 36 10 lb BOX - 0535630

Q: What is the Harris 5356 GTAW Aluminum Welding TIG Rody 1/16 36 10 lb BOX - 0535630 used for?

Aluminum TIG rod is used with AC TIG welding on aluminum base metals. ER4043 (aluminum-silicon alloy) is the most common general-purpose choice — it flows well, produces a bright finish, and is compatible with most aluminum alloys. ER5356 (aluminum-magnesium) provides higher tensile strength and is preferred for structural parts and applications that require post-weld anodizing.

SKU: 0535630

$121.70 ~~$148.80~~

Factory Direct

Free Shipping over $250

Lowest Price

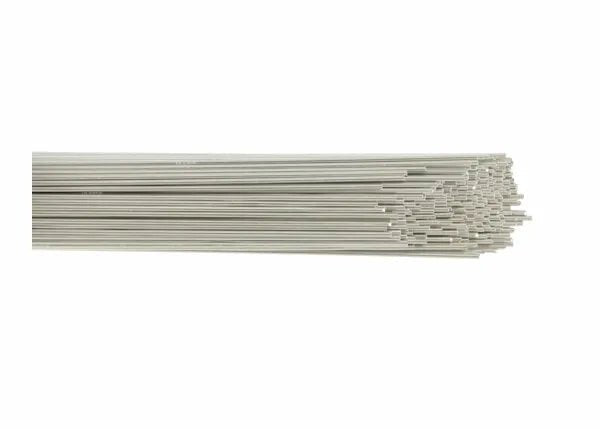

5356 aluminum TIG (GTAW) welding alloy 1/16 x 36 in. x 10 lb. box

Overview

Harris 5356 GTAW Aluminum Welding TIG Rody 1/16 36 10 lb BOX - 0535630

5356 aluminum TIG (GTAW) welding alloy is an all-position, non-heat treatable alloy used to weld the 5XXX series alloys when 40,000 psi tensile strength is not a requirement. Alloy 5356 is a very good all-purpose alloy. It is the most widely used of all aluminum/silicon filler metals. Common applications are welding of boats/ships, bicycles, trucks, pressure vessels and automotive parts.

Features

Designed for welding non-heat treatable base alloys, specifically 5XXX series alloys
Welds 5XXX series alloys when 40,000 psi tensile strength is not required
Very good general-purpose welding wire
Most widely used aluminum welding alloy
Common applications are welding of boats/ships, bicycles, trucks, pressure vessels and automotive parts
Tensile strength of 39,000 psi
White color (post anodized)
All position welding, except vertical down
Marked with model number on each end for easy identification after use
