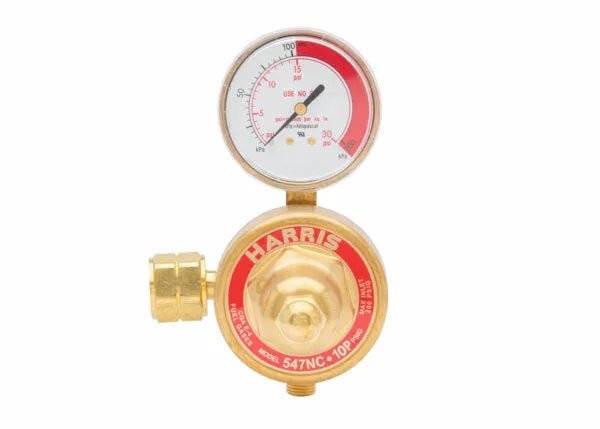

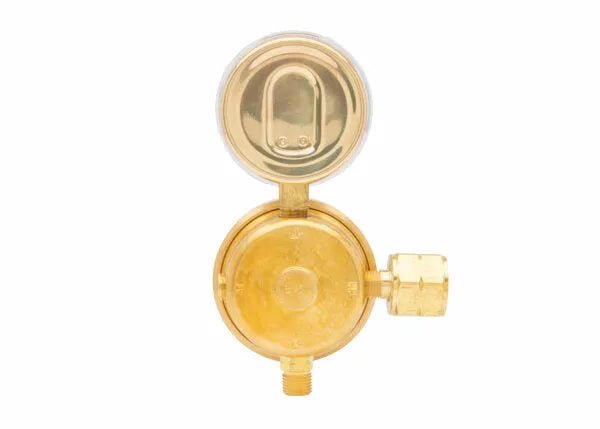

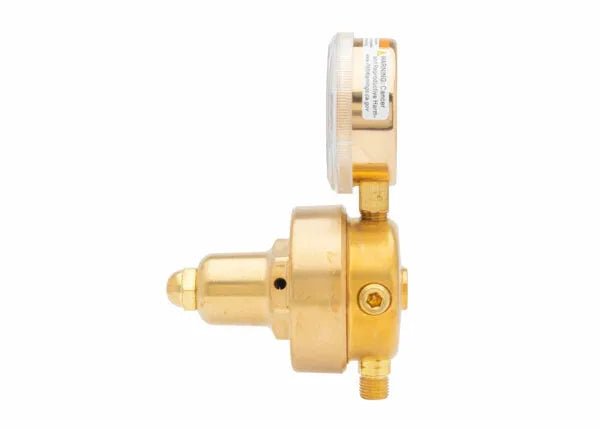

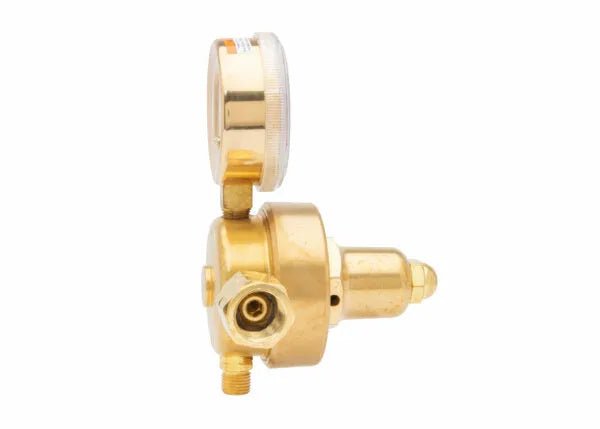

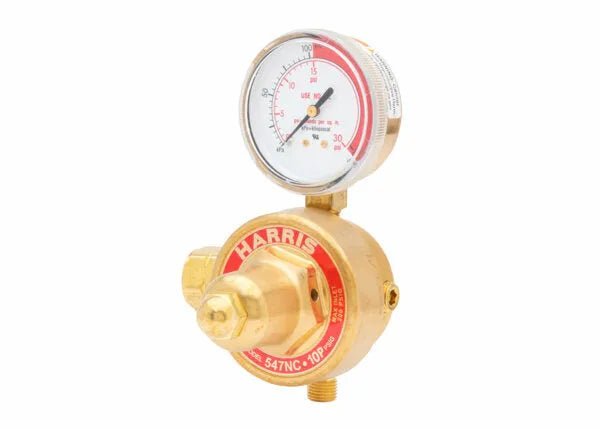

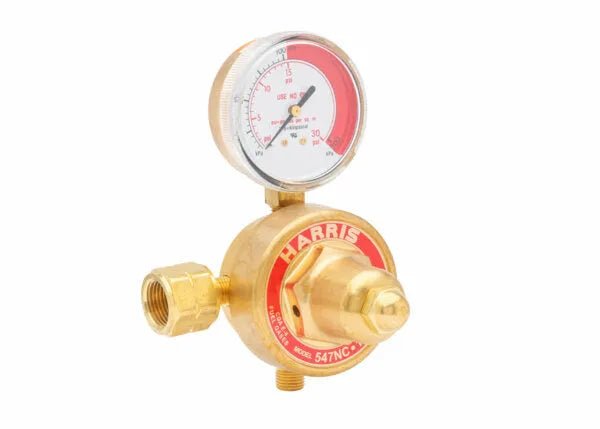

Harris 547NC-15-CL Station Single Stage Fuel Gas Regulator - 4000601
Model 547NC Regulator is designed to deliver high gas flows from piping systems that are equipped with station Fuel Gas Regulator connections. This heavy-duty, high flow, pipeline Regulator has side entry access and 9/16" - 18" outlet connection. It features a brass body and bonnet, 2.5" dual scale brass gauge, brass "T" screw adjustment handle and one-piece encapsulated seat design with internal filter and neoprene seat.
Features
- Designed to provide high gas flows from piping systems
- Heavy-duty side-entry station Regulator
- Easy-to-operate brass "T" screw handle
- Forged brass body and bonnet for longer service life
- Large 2.75" neoprene diaphragm for improved pressure control
- 2.5" Brass dual scale easy-to-read gauge
- One-piece encapsulated seat design with internal filter to protect the neoprene seat from particulate contamination
- Maximum inlet pressure is 200 psig
- Conforms to CGA E-4 standard
Specifications
Equipment
| Adjusting Screw | Brass "T" screw bar handle |
| Body | Forged brass |
| Bonnet | Forged brass |
| Capacity | High flow |
| Certification | CGA-E4 |
| Cv | 0.53 |
| Delivery Pressure Gauge (PSIG) | 30 |
| Delivery Pressure Range (PSIG) | 0 - 15 |
| Diaphragm | 2.75" Neoprene |
| Duty | Heavy |
| Gas / Gas Service | Fuel gas |
| Gauges | 2.5" Brass dual scale |
| Inlet Connection | 7/8" - 14 LH (024) |
| Maximum Inlet Pressure (PSIG) | 200 |
| Outlet Connection | 9/16" - 18 LH |
| Pressure Regulation PSIG/100 PSIG | 1.6 |
| Recommended Items/Accessories | OSHA compliant station drops and valves (Contact Harris Customer Service for appropriate selection and ordering.) |
| Seat | Neoprene |
Warranty
| Warranty | 7 Years |
