Model 547-20P-CR heavy duty side-entry station single-stage regulator
Inlet: 7/8" - 14
Outlet: 9/16" - 18

Overview

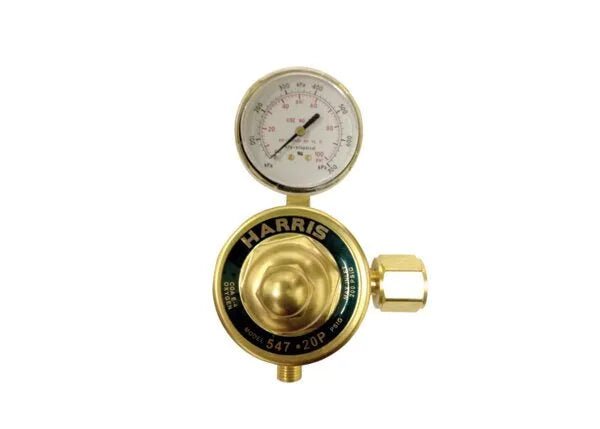

Harris 547NC-15-CL Station Single Stage Regulator - 4000624

Model 547 regulator is designed to deliver high gas flows from piping systems that are equipped with station regulator connections. This heavy-duty, high flow, station regulator has side entry access and 9/16" - 18" outlet connection. It features a brass body and bonnet, 2.5" dual scale brass gauge, brass "T" screw adjustment handle and one-piece encapsulated seat design with internal filter and Teflon® seat.

Features
  • Designed to provide high gas flows from piping systems
  • Heavy-duty side-entry station regulator
  • Easy-to-operate brass "T" screw handle
  • Forged brass body and bonnet for longer service life
  • Large 2.75" neoprene diaphragm for improved pressure control
  • 2.5" Brass dual scale easy-to-read gauge
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination.
  • Maximum inlet pressure is 200 psig
  • Conforms to CGA E-4 standard
Specifications

Equipment

Adjusting Screw Brass "T" screw bar handle
Body Forged brass
Bonnet Forged brass
Capacity High flow
Certification CGA E-4
Cv 0.53
Delivery Pressure Range (PSIG) 0 - 20P
Diaphragm 2.75 Neoprene
Duty Heavy
Gauges 2.5" Brass dual scale
Inlet Connection 7/8" - 14
Maximum Inlet Pressure (PSIG) 200
Outlet Connection 9/16" - 18
Pressure Regulation PSIG/100 PSIG 1.6
Recommended Items/Accessories OSHA compliant station drops and valves (Contact Harris Customer Service for appropriate selection and ordering.)
Seat PTFE Teflon®

Warranty

Warranty 7 Years
