Does the Harris 60/40 Leaded Solder 1/8 1# Spool 50LB Box - 331858 require separate flux?

A separate flux must be applied to clean joint surfaces before soldering with wire or bar solder. Harris Bridgit Flux or a similar non-corrosive paste flux is recommended for plumbing copper joints. Apply flux to all contact surfaces, assemble the joint, then heat the base metal and touch solder to the joint — the solder flows by capillary action into the flux-wetted gap. Remove flux residue after the joint cools.

What is the correct soldering technique for the Harris 60/40 Leaded Solder 1/8 1# Spool 50LB Box - 331858?

Soldering technique for copper plumbing: clean pipe and fitting surfaces with sandpaper or steel wool until bright, apply paste flux, assemble the joint, and heat the fitting (not the solder) with a torch until solder flows freely when touched to the joint. Remove heat as soon as the solder flows — overheating burns the flux and can cause a dry joint or oxidized solder. Allow to cool for 30 seconds before wiping and moving the assembly.

What diameter and quantity is the Harris 60/40 Leaded Solder 1/8 1# Spool 50LB Box - 331858 available in?

The Harris 60/40 Leaded Solder 1/8 1# Spool 50LB Box - 331858 is available in 1/8 diameter. Wire solder diameter selection depends on the joint size: fine wire (.050–.062 in) suits electronics and tight plumbing fittings; medium wire (.093–.125 in) is the most versatile for general plumbing work; larger diameter wire suits large-bore fittings and faster deposition.

How should I store the Harris 60/40 Leaded Solder 1/8 1# Spool 50LB Box - 331858?

Store solder in a cool, dry location away from moisture and chemical fumes. Lead-free solders containing silver (Sn-Ag, Sn-Ag-Cu) are more brittle than traditional tin-lead solders and should be handled with care to avoid cracking the wire on the spool. Flux-core solder should be stored away from extreme heat to prevent flux degradation inside the core.

1 3

Harris 60/40 Leaded Solder 1/8 1# Spool 50LB Box - 331858

Q: What is the Harris 60/40 Leaded Solder 1/8 1# Spool 50LB Box - 331858 used for?

Solder is used for joining metal components at temperatures below 840°F (450°C) in plumbing, electronics, and light metal fabrication. Select the solder based on your application: lead-free is required for potable water plumbing; tin-lead solders are still used in electronics repair and non-potable applications where permitted by code.

SKU: 331858

Call for Price

Factory Direct

Free Shipping over $250

Lowest Price

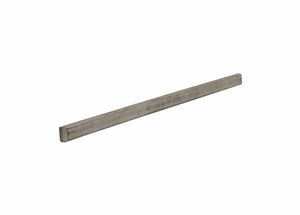

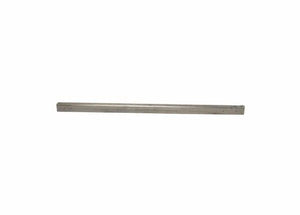

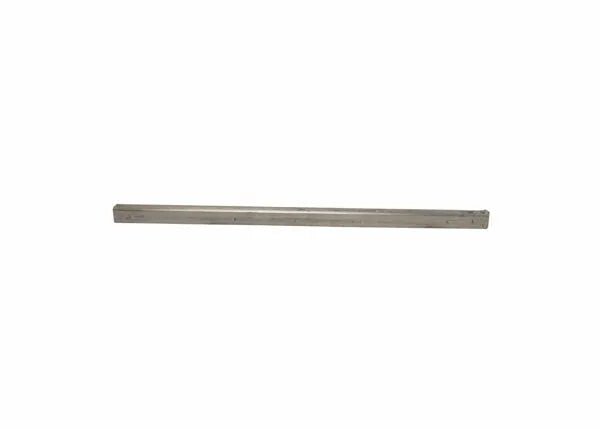

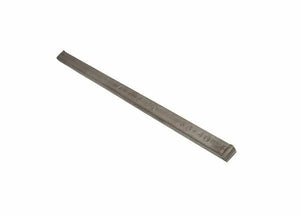

60/40 leaded solid wire solder 1/8 x 1 lb. Spool x 50 lb. Box

Overview

Harris 60/40 Leaded Solder 1/8 1# Spool 50LB Box - 331858

60/40 tin-lead solid wire solder, with some exceptions, can be used to join copper and most copper alloys, lead, nickel alloys and steel. Tin-lead solders are not recommended for joints subject to high stress or vibration in the cooling industry due to lack of sufficient elongation properties. Similar to 50/50 but flows faster due to narrow melting range. Do not use in potable water system applications.

Features

Can be used to solder copper and most copper alloys, lead, nickel alloys and steel, with some exceptions
Generally used for small connections
The narrow melting range makes it suitable for dip soldering baths
Popular choice for soldering electrical and electronic connections
Heat sources include soldering guns, irons and air-fuel torches
Not recommended for joints subject to high stress or vibration in the cooling industry due to lack of sufficient elongation properties
Not for use with plumbing and potable water system applications
Meets ASTM B-32 Specification; Alloy Grade Sn 60; J-STD-006 Sn60Pb40Sb0.4
