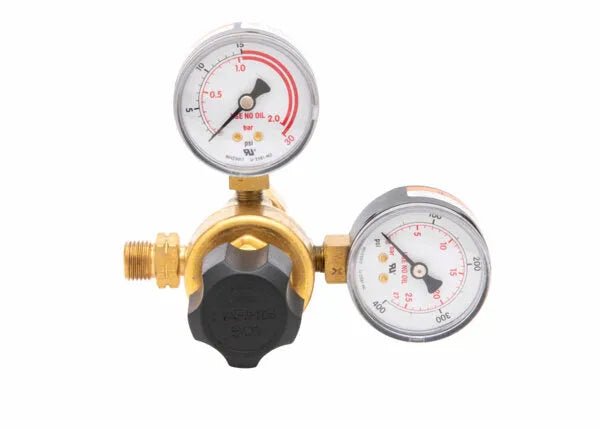

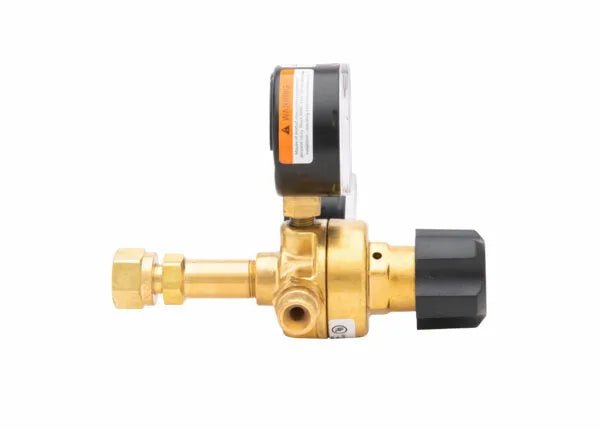

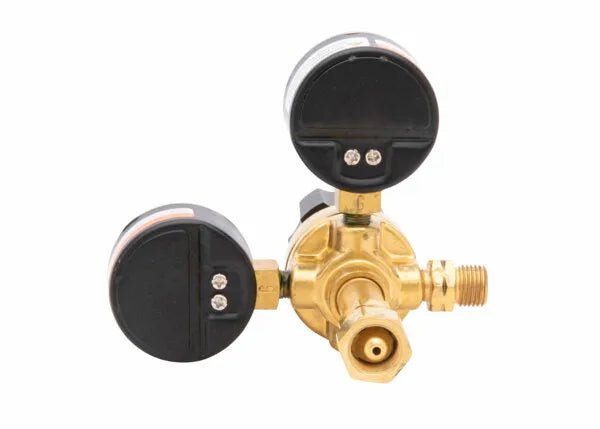

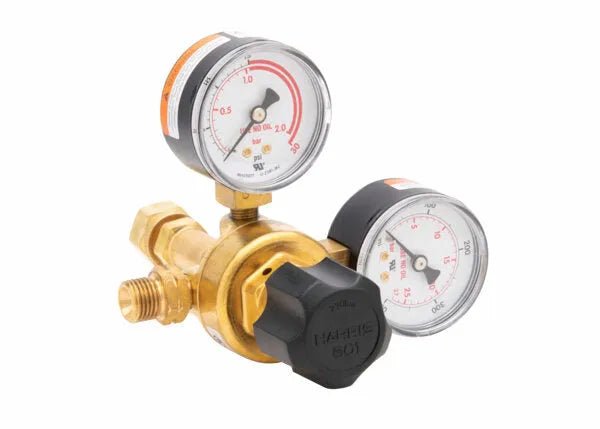

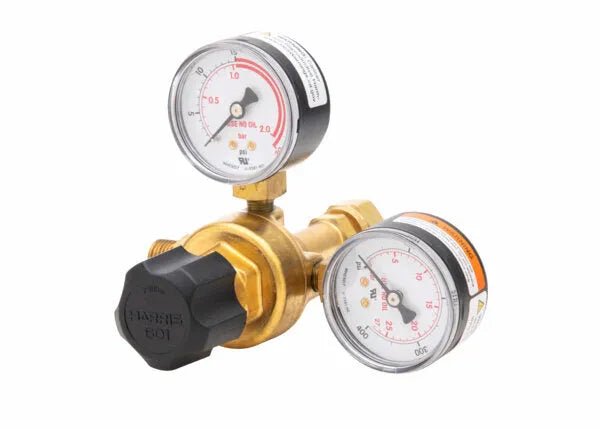

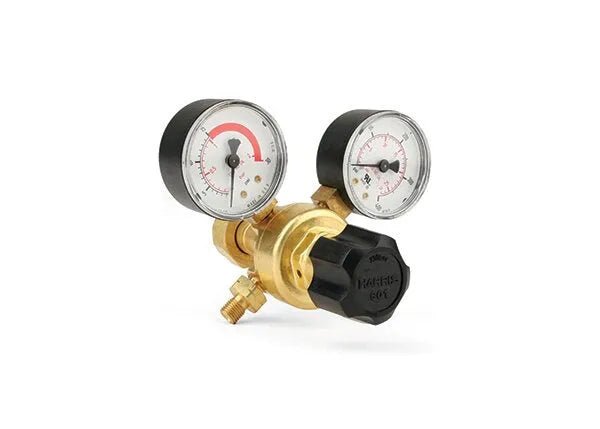

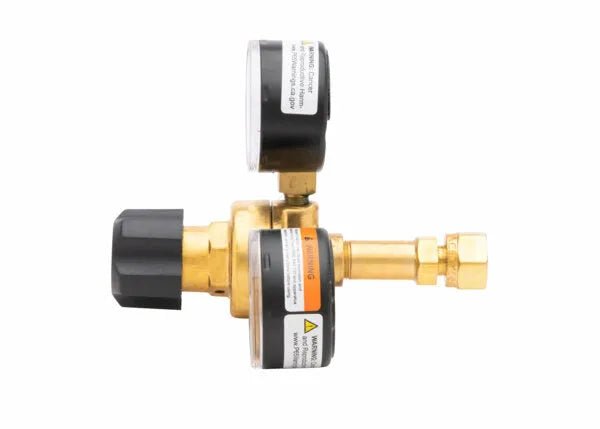

Harris 601-15-520-B Economical Single Stage Acetylene Regulator - 3000411
Model 601 Single Stage Acetylene Regulator is designed to be compact and economical, but with features typically available in more expensive models. It is used where weight, cost and size are factors. Features a brass body, 50mm ABS plastic dual scale gauges and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. This model is UL listed.
Features
- Compact design at an economical price
- For applications where weight, cost and size are critical factors
- Higher end features at an economical price
- Brass body and bonnet for longer service life
- Large plastic knob for easy grip and precise adjustments
- 50mm ABS plastic dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Neoprene diaphragm for improved pressure control
- UL listed
Specifications
Equipment
Adjusting Knob | Plastic |
Body | Brass |
Bonnet | Brass |
Certification | CGA E-4 UL® listed |
Cv | 0.08 |
Delivery Pressure Gauge (PSIG) | 30RZ |
Delivery Pressure Range (PSIG) | 0 - 15 |
Diaphragm | Neoprene |
Duty | Light |
Gas / Gas Service | Acetylene |
Gauges | 50mm ABS plastic dual scale |
Inlet Connection | CGA 520 |
Maximum Inlet Pressure (PSIG) | 400 |
Outlet Connection | B 9/16" - 18 LH |
Pressure Regulation PSIG/100 PSIG | 0.40 psig |
Seat | PTFE Teflon® |
Supply Pressure Gauge (PSIG) | 400 |
Warranty
Warranty | 7 Years |
