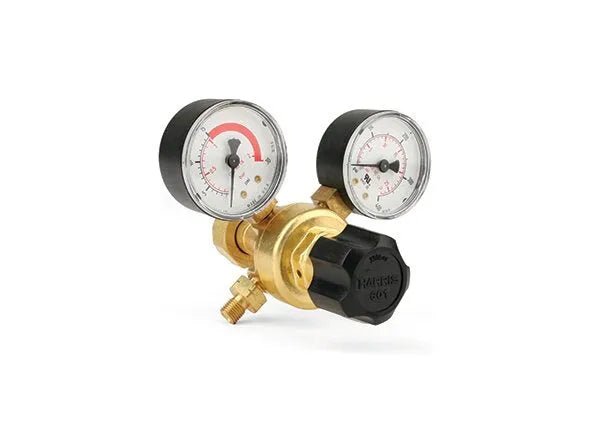

Harris 601-50-510P-B Economical Single Stage Propane, Propylene, MPS Regulator - 3000409
Model 601 Single Stage Propane, Propylene, MPS Regulator is designed to be compact and economical, but with features typically available in more expensive models. It is used where weight, cost and size are factors. Features a brass body, 50mm ABS plastic dual scale gauges and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. This model is UL listed.
Features
- Compact design at an economical price
- For applications where weight, cost and size are critical factors
- Higher end features at an economical price
- Brass body and bonnet for longer service life
- Large plastic knob for easy grip and precise adjustments
- 50mm ABS plastic dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Neoprene diaphragm for improved pressure control
- UL listed
- Designed specifically for propane service, but can be used with any of the other liquid petroleum gases. NOT FOR USE WITH ACETYLENE.
Specifications
Equipment
| Adjusting Knob | Plastic |
| Body | Brass |
| Bonnet | Brass |
| Certification | CGA E-4 UL® listed |
| Cv | 0.08 |
| Delivery Pressure Gauge (PSIG) | 60 |
| Delivery Pressure Range (PSIG) | 0 - 50 |
| Diaphragm | Neoprene |
| Duty | Light |
| Gas / Gas Service | Propane Propylene MPS |
| Gauges | 50mm ABS plastic dual scale |
| Inlet Connection | CGA 510P |
| Maximum Inlet Pressure (PSIG) | 400 |
| Outlet Connection | (B) 9/16 in. - 18 LH |
| Pressure Regulation PSIG/100 PSIG | 0.4 |
| Seat | PTFE Teflon® |
| Special Instructions | Not for use with acetylene |
| Supply Pressure Gauge (PSIG) | 400 |
Warranty
| Warranty | 7 Years |
