Harris  |  SKU: 3000649

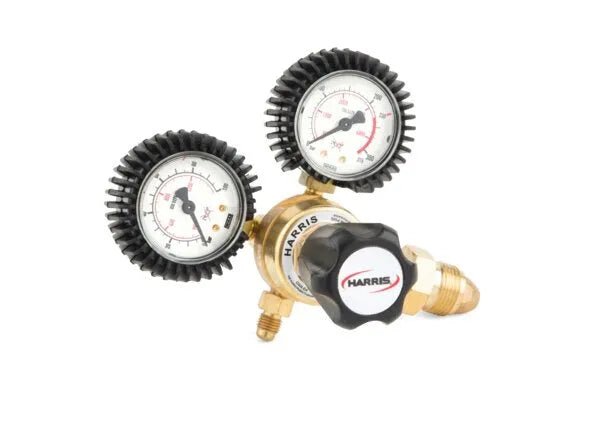

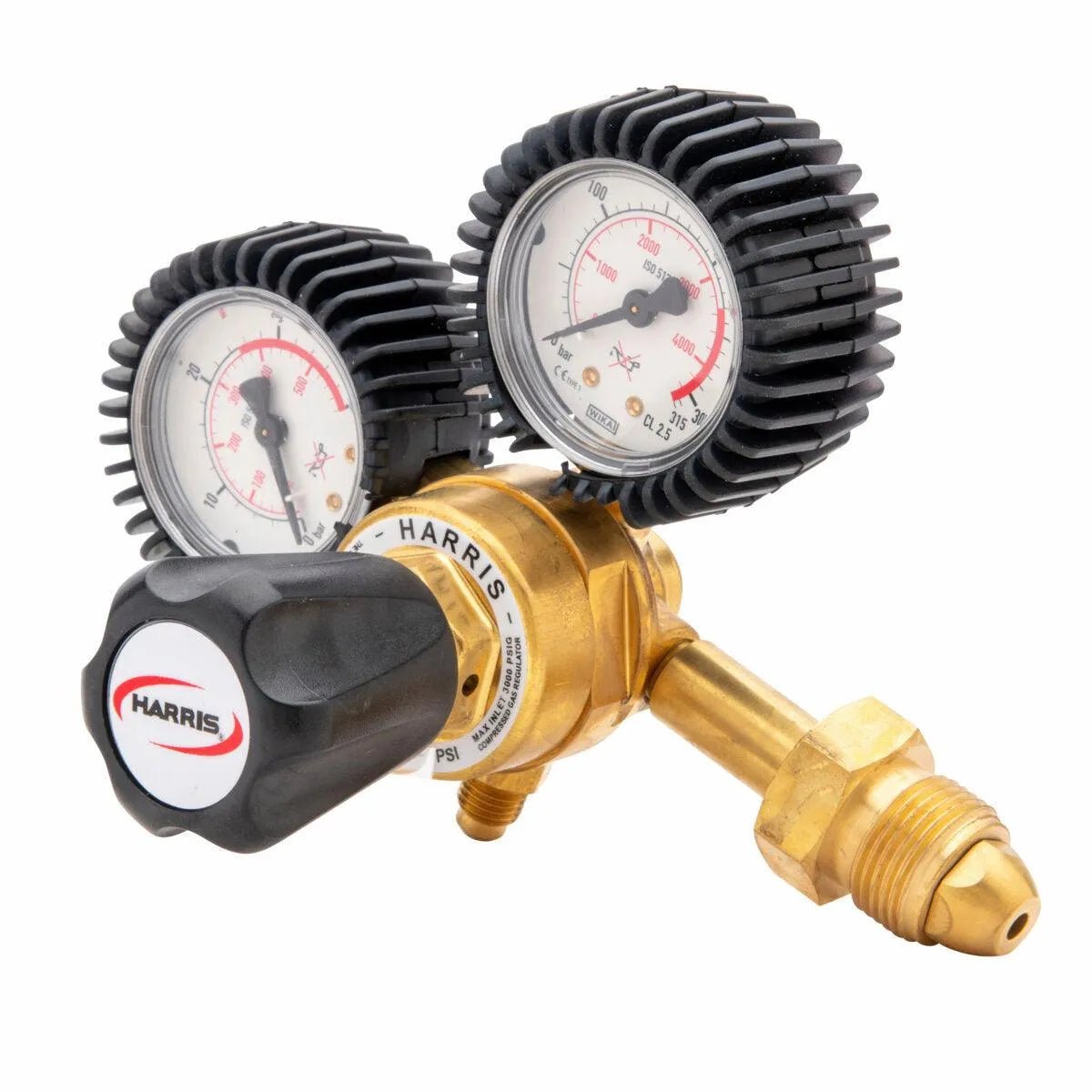

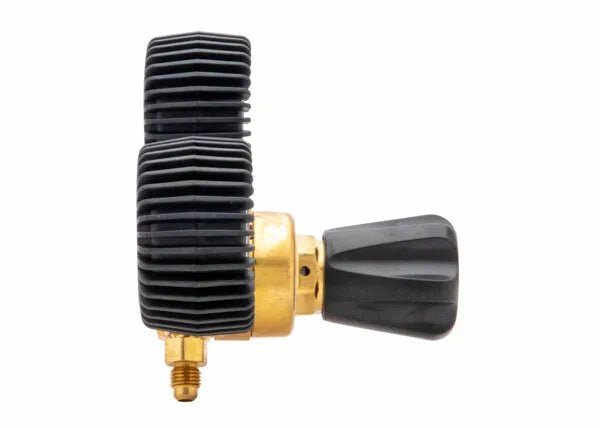

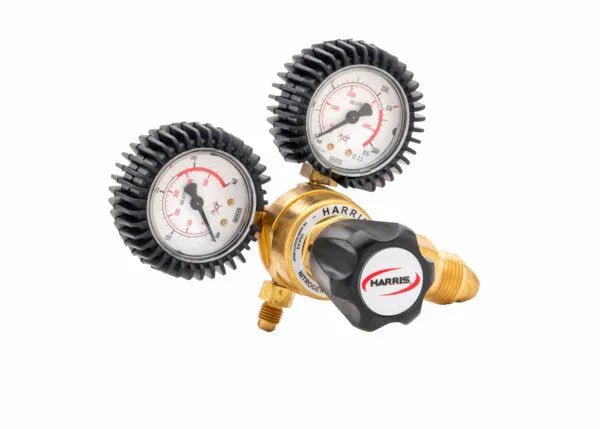

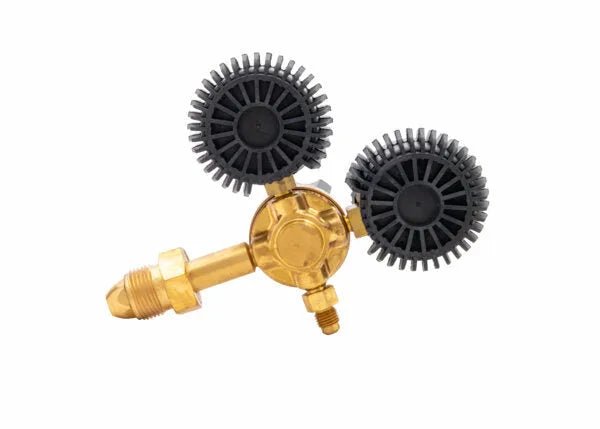

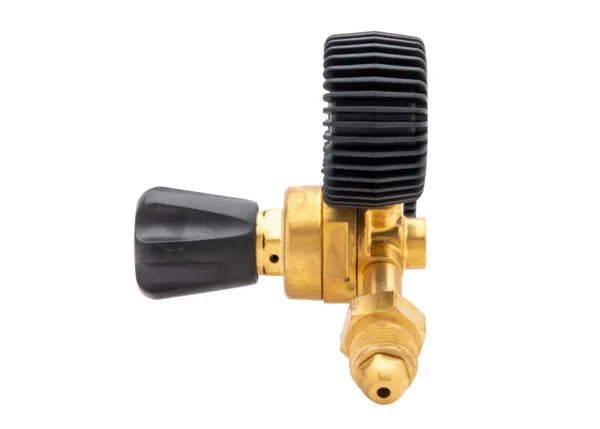

Harris 601-800-580 HVAC Purging Single Stage Argon Regulator - 3000649

$109.87 $161.51
Harris - Model 601-800-580 HVAC purging single stage argon regulator with 1/4 flare equipped with rubber gauge guards (Clamshell)
Warranty: 7 Years
Certification: CGA E-4

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Harris 601-800-580 HVAC Purging Single Stage Argon Regulator - 3000649

Harris Model 601 Single Stage Argon Regulator is designed for applications where weight and size are critical factors. Used for HVAC purging, pressure testing and blanketing with nitrogen or other inert gases. Gauges feature rubber gauge guards (Harris Model CPR 63332 - PN 9009931) for added protection in abusive conditions. Plastic knob for easy grip and precise adjustment. Maximum delivery pressure 400 or 800 PSIG. Conveniently packaged in clamshell for point-of-purchase display.

Features
  • For applications where weight, cost and size are critical factors
  • Ideal for HVAC purging, pressure testing and blanketing
  • Higher end features at an economical price
  • Brass body and bonnet for longer service life
  • Ergonomic ABS plastic knob for easy grip and precise adjustments
  • 50mm ABS plastic dual scale easy-to-read gauges (psi/bar)
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • Neoprene diaphragm for better pressure control
  • Equipped with rubber gauge guards for added protection in abusive conditions
  • Conveniently packaged in clamshell for point-of-purchase display

Specifications

Equipment

Adjusting Knob ABS plastic
Body Ports Brass
Bonnet Brass
Certification CGA E-4
Cv 0.17
Delivery Pressure Gauge (PSIG) 1450
Delivery Pressure Range (PSIG) 0 - 800
Diaphragm Neoprene
Duty Light to medium
Equipped With Rubber gauge guards for added protection in abusive conditions
Gas / Gas Service Argon
Helium
Nitrogen
Gauges 50mm ABS plastic dual scale (psi/bar)
Included Accessories Rubber Gauge Guards - Model CPR63332 - PN 9003727
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection [object Object]
Pressure Regulation PSIG/100 PSIG 0.4
Recommended Items/Accessories Rubber Gauge Guards - Model CPR63332 - PN 9003727 (soft) or PN 9009931 (hard)
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4500
Typical Application HVAC purging, Pressure testing, Blanketing

Warranty

Warranty 7 Years

Harris 601-800-580 HVAC Purging Single Stage Argon Regulator - 3000649

Harris Model 601 Single Stage Argon Regulator is designed for applications where weight and size are critical factors. Used for HVAC purging, pressure testing and blanketing with nitrogen or other inert gases. Gauges feature rubber gauge guards (Harris Model CPR 63332 - PN 9009931) for added protection in abusive conditions. Plastic knob for easy grip and precise adjustment. Maximum delivery pressure 400 or 800 PSIG. Conveniently packaged in clamshell for point-of-purchase display.

Features
  • For applications where weight, cost and size are critical factors
  • Ideal for HVAC purging, pressure testing and blanketing
  • Higher end features at an economical price
  • Brass body and bonnet for longer service life
  • Ergonomic ABS plastic knob for easy grip and precise adjustments
  • 50mm ABS plastic dual scale easy-to-read gauges (psi/bar)
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • Neoprene diaphragm for better pressure control
  • Equipped with rubber gauge guards for added protection in abusive conditions
  • Conveniently packaged in clamshell for point-of-purchase display

Specifications

Equipment

Adjusting Knob ABS plastic
Body Ports Brass
Bonnet Brass
Certification CGA E-4
Cv 0.17
Delivery Pressure Gauge (PSIG) 1450
Delivery Pressure Range (PSIG) 0 - 800
Diaphragm Neoprene
Duty Light to medium
Equipped With Rubber gauge guards for added protection in abusive conditions
Gas / Gas Service Argon
Helium
Nitrogen
Gauges 50mm ABS plastic dual scale (psi/bar)
Included Accessories Rubber Gauge Guards - Model CPR63332 - PN 9003727
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection [object Object]
Pressure Regulation PSIG/100 PSIG 0.4
Recommended Items/Accessories Rubber Gauge Guards - Model CPR63332 - PN 9003727 (soft) or PN 9009931 (hard)
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4500
Typical Application HVAC purging, Pressure testing, Blanketing

Warranty

Warranty 7 Years

Includes
What's Included
  • Harris - Model 601-800-580 HVAC purging single-stage regulator with 1/4 flare equipped with rubber gauge guards (Clamshell)

Specifications
Gas / GasService Argon; Helium; Nitrogen
Adjusting Knob ABS plastic
Body Ports Brass
Bonnet Brass
Cv 0.17
Delivery Pressure Gauge (PSIG) 1450
Delivery Pressure Range (PSIG) 0 - 800
Diaphragm Neoprene
Duty Light to medium
Equipped With Rubber gauge guards for added protection in abusive conditions
Gauges 50mm ABS plastic dual scale (psi/bar)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 1/4 in. 45◦ Flare SAE
Pressure Regulation PSIG/100 PSIG 0.4
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4500
Typical Application HVAC purging, Pressure testing, Blanketing
