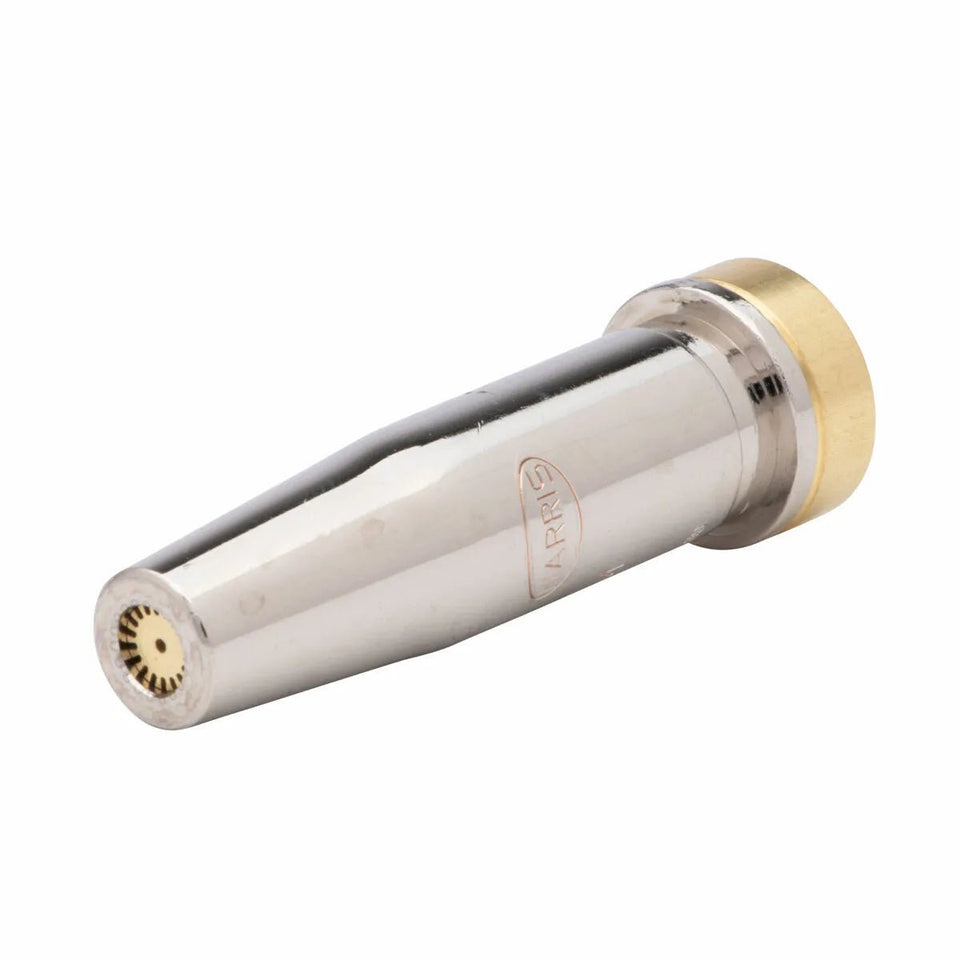

Harris Model 6290-00NXP Hand Cutting Tip - 1502152

SKU: 1502152
$16.06
Factory Direct
Free Shipping over $250
Lowest Price
Harris - Model 6290-00NXP general preheat two-piece hand cutting tip for use with propylene
Overview
Harris Model 6290-NXP is a propylene tip with an electroless nickel-plated shell for use with hand cutting torches

Features
  • Two-piece hand cutting tip
  • Electroless nickel-plated outer shell construction and brass internal shell construction
  • General preheat
  • Cuts steel that is painted, rusted or has a heavily scaled surface
  • Designed for excellent performance and longer service life
  • Cutting depth: 3/16 in. - 3/8 in.
  • For use with low cost alternate fuel gases - propylene NOT FOR USE WITH ACETYLENE
  • Typical applications include fabrication, shipbuilding, etc.
  • Marked with Harris logo and tip size for easy identification
  • One year warranty
Specifications
FeatureValue
Gas / GasService Propylene
Compatible Cutting Attachment Model Number 39-3F; 49-3F; 72-3; 73-3
Compatible Handle Model Number 18-5; 43-2; 85
Compatible Torch Harris - Model Number 42-4E; 42-4F; 62-5E; 62-5F; 62-5SSF; 980-F
Construction Two-piece - Electroless nickel-plated (outer shell) and Brass (inner shell)
Cutting Depth 3⁄16 in. - 3⁄8 in. (4.76mm - 9.53mm)
Cutting Drill Size No. 64
Equal Pressure - Fuel Gas PSIG 5 - 15
Fuel Gas SCFH (Min. - Max.) 11.5
Injector Or Low Pressure - Fuel Gas PSIG 4 oz. - 2 lbs.
Oxygen PSIG (Min. - Max.) 20 - 30
Oxygen SCFH Total (Min. - Max.) 30 - 40
Preheat Type General
Style Hand cutting
Tip Size / Number 0
Typical Application Fabrication; Shiipbuilding
Includes
  • Harris - Model 6290-00NXP general preheat two-piece hand cutting tip for use with propylene
