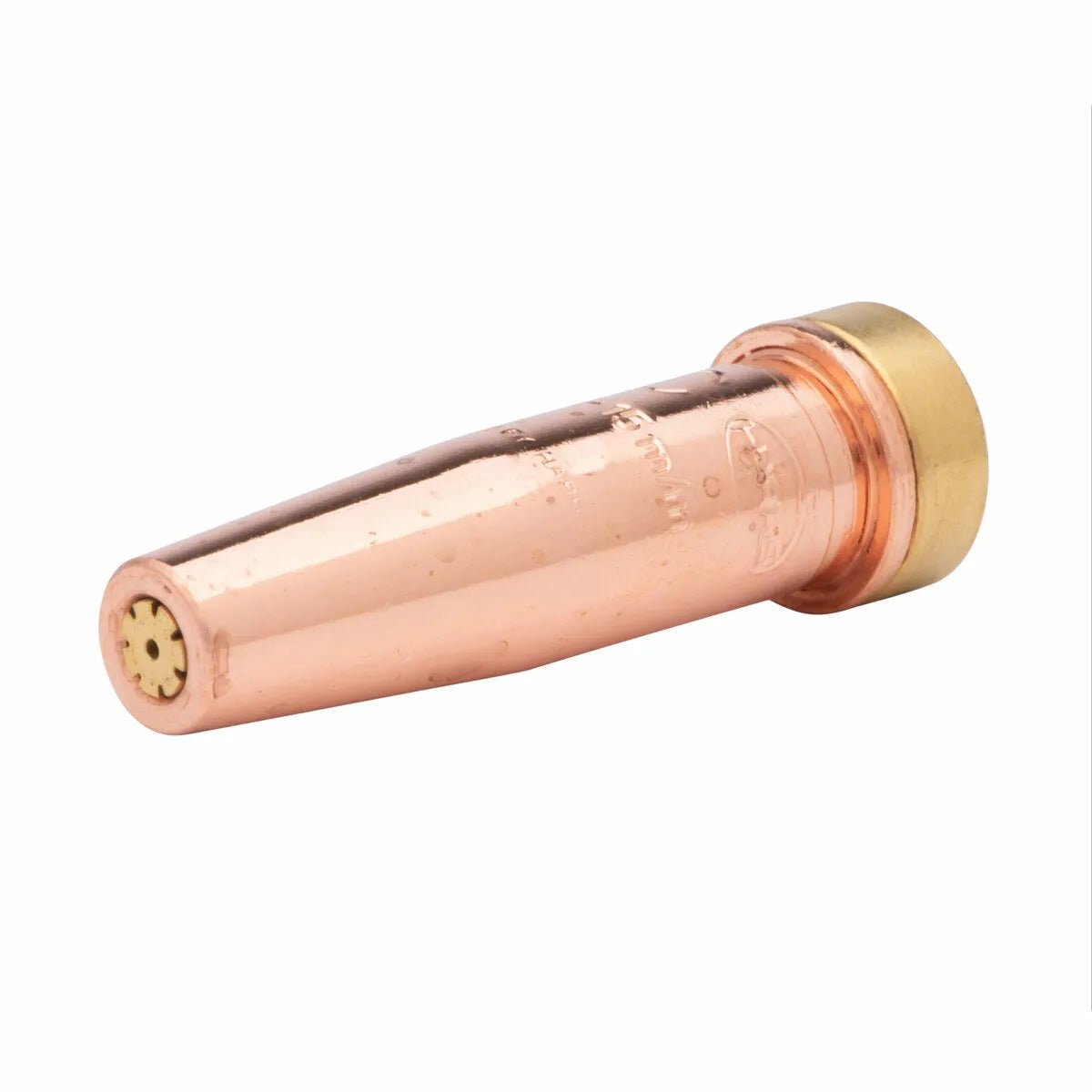

Harris Model 6290-6AC Hand Cutting Tip - 1502177
Harris - Model 6290-6AC heavy preheat two-piece hand cutting tip for use with acetylene.
Specifications
- Gas / GasService: Acetylene
- Compatible Cutting Attachment Model Number: 72-3; 73-3
- Compatible Handle Model Number: 18-5; 43-2; 85
- Compatible Torch Harris - Model Number: 42-4E; 62-5E; 980-E; 98-6E
- Construction: Two-piece - Copper and Brass
- Cutting Depth: 10 in. - 12 in. (254.0mm - 304.8mm)
- Cutting Drill Size: No. 31
- Fuel Gas PSIG (Min. - Max.): 8 - 15
- Fuel Gas SCFH (Min. - Max.): 32 - 54
- Oxygen PSIG (Min. - Max.): 70 - 95
- Oxygen SCFH Total (Min. - Max.): 565 - 731
- Style: Hand cutting
- Tip Size / Number: 6
- Typical Application: Demolition; Maintenance; Acetylene machine cutting
- Part number: 1502177
Applications
The Harris Model 6290-6AC Hand Cutting Tip - 1502177 is a Harris Products Group accessory designed for use with Harris torches, regulators, or cutting/brazing equipment. Harris Products Group manufactures a comprehensive line of gas equipment including torches, tips, regulators, hose assemblies, and specialty accessories for welding, cutting, brazing, and soldering operations.
What's in the box
- Harris - Model 6290-6AC Hand Cutting Tip
Why pros choose this
Harris cutting, heating, and brazing accessories are sized by tip series, fuel gas, and torch family. Using the correct tip and seat geometry preserves cutting speed and prevents flashback in oxy-fuel work.
Warranty
1 Year
From the manufacturer
Harris Model 6290-AC is a two-piece acetylene tip for hand cutting torches.Features
- Two-piece hand cutting tip with copper outer shell and brass internal shell
- Heavy preheat
- For use with acetylene
- Cuts steel that is painted, rusted or has a heavily scaled surface
- Depth of cut - 10 in.-12 in.
- Typical applications include demolition, maintenance, acetylene machine cutting
- Marked with Harris logo and tip size for easy identification
- One year warranty
- To provide proper gas flow, use 3/8 in. ID hose for this size tip
