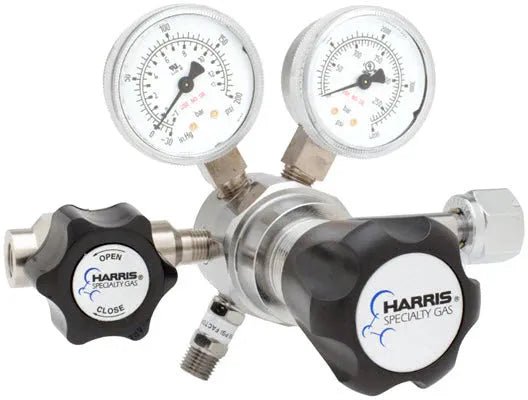

Harris 721C-015-346-B Ultra High Purity Medical Air Regulator - 721C015346B

SKU: 721C015346B
$501.65 $692.23

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $23/mo — 24-Mo Term, No Hard Credit Check
Factory Direct
Free Shipping
Lowest Price
These single-stage, ultra high purity regulators are recommended for non-corrosive analytical and process applications where precise flow control is not critical. A specially designed, convoluted, stainless steel diaphram provides good regulating performance and maxium purity integrity. These rgulators are capable of withstanding an internal vacuum and can be provided with a diffusion-resistant valve.
Gas Type: Medical Air
Inlet: CGA 346
Outlet: 1/4 inch FNPT
Overview
Harris 721C-015-346-B Ultra High Purity Medical Air Regulator - 721C015346B

Harris 721C-015-346-B is a single-stage cylinder regulator in chrome-plated brass barstock for pressure control of non-corrosive gases when pressure rise is not critical. The Model HP721C is suitable for high-purity gas applications, research sample systems gases, process analyzer gases, gas chromatography, EPA protocol gases, laser gas systems and emission monitoring systems.

Features
  • CGA 346
  • Chrome diaphragm valve (installed) with 1/4 inch female NPT
  • 1-11/16"- 316L Stainless Steel diaphragm eliminates contamination from diffusion or outgassing
  • One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE Teflon seat from particulate contamination
  • External relief valve is standard
  • Brass Barstock body, bonnet and fittings
  • 2” dual scale Brass Barstock gauges (psi/bar)
  • Designed to 1 x 10-9 cc/sec inboard helium leak rate to maintain gas purity levels
  • Maximum inlet pressure 3000 PSIG, except for models with CGA 300 and 510 that are equipped with a 400 PSIG inlet gauge
  • Front or back panel mountable
  • Conforms to CGA E-4 standard for gas pressure Regulators
