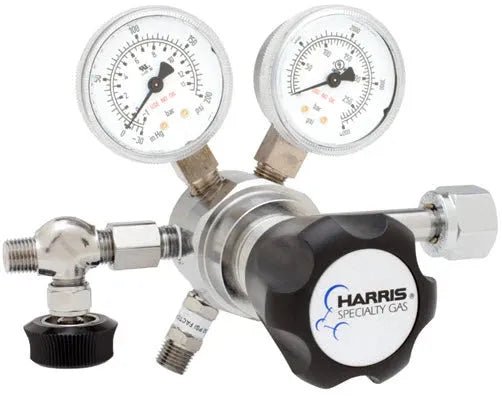

Harris 721C-015-350-A Ultra High Purity Hydrogen Regulator - 721C015350A

SKU: 721C015350A
$419.40 $559.87
Factory Direct
Free Shipping
Lowest Price
These single-stage, ultra high purity regulators are recommended for non-corrosive analytical and process applications where precise flow control is not critical. A specially designed, convoluted, stainless steel diaphram provides good regulating performance and maxium purity integrity. These rgulators are capable of withstanding an internal vacuum and can be provided with a diffusion-resistant valve.
Gas Type: Hydrogen
Inlet: CGA 350
Outlet: 1/4 inch MNPT
Overview
Harris 721C-015-350-A Ultra High Purity Hydrogen Regulator - 721C015350A

Harris 721C-015-350-A is a single-stage cylinder regulator in chrome-plated brass barstock for pressure control of non-corrosive gases when pressure rise is not critical. The Model HP721C is suitable for high-purity gas applications, research sample systems gases, process analyzer gases, gas chromatography, EPA protocol gases, laser gas systems and emission monitoring systems.

Features
  • 1-11/16"- 316L Stainless Steel diaphragm eliminates contamination from diffusion or outgassing
  • One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE Teflon seat from particulate contamination
  • External relief valve is standard
  • Brass Barstock body, bonnet and fittings
  • 2” dual scale Brass Barstock gauges (psi/bar)
  • Designed to 1 x 10-9 cc/sec inboard helium leak rate to maintain gas purity levels
  • Maximum inlet pressure 3000 PSIG, except for models with CGA 300 and 510 that are equipped with a 400 PSIG inlet gauge
  • Front or back panel mountable
  • Conforms to CGA E-4 standard for gas pressure Regulators
