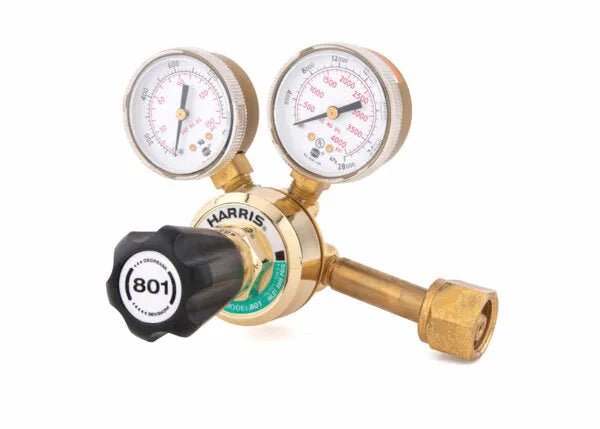

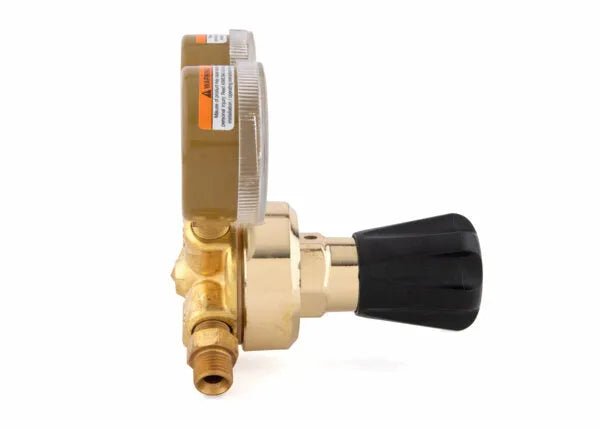

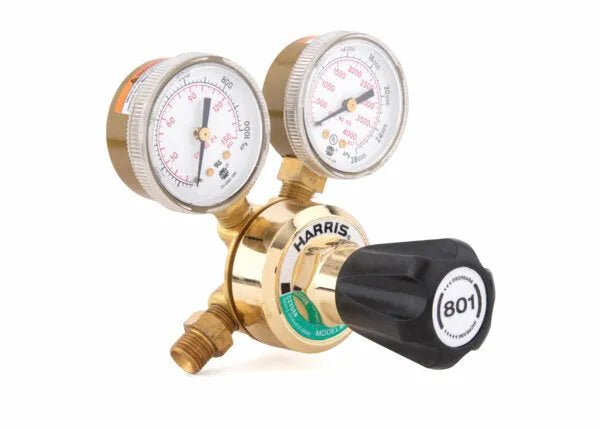

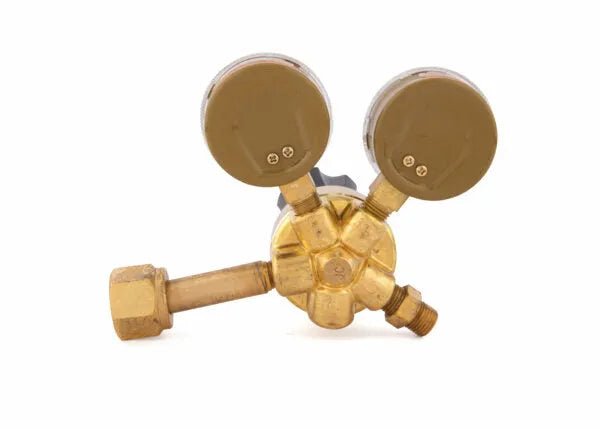

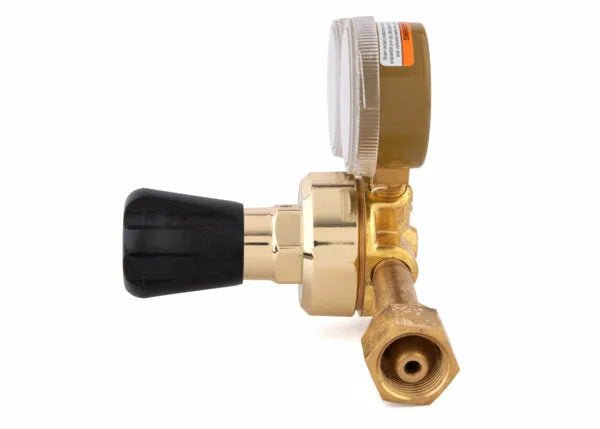

Harris 801-145-540 Single Stage Oxygen Regulator - 3004194

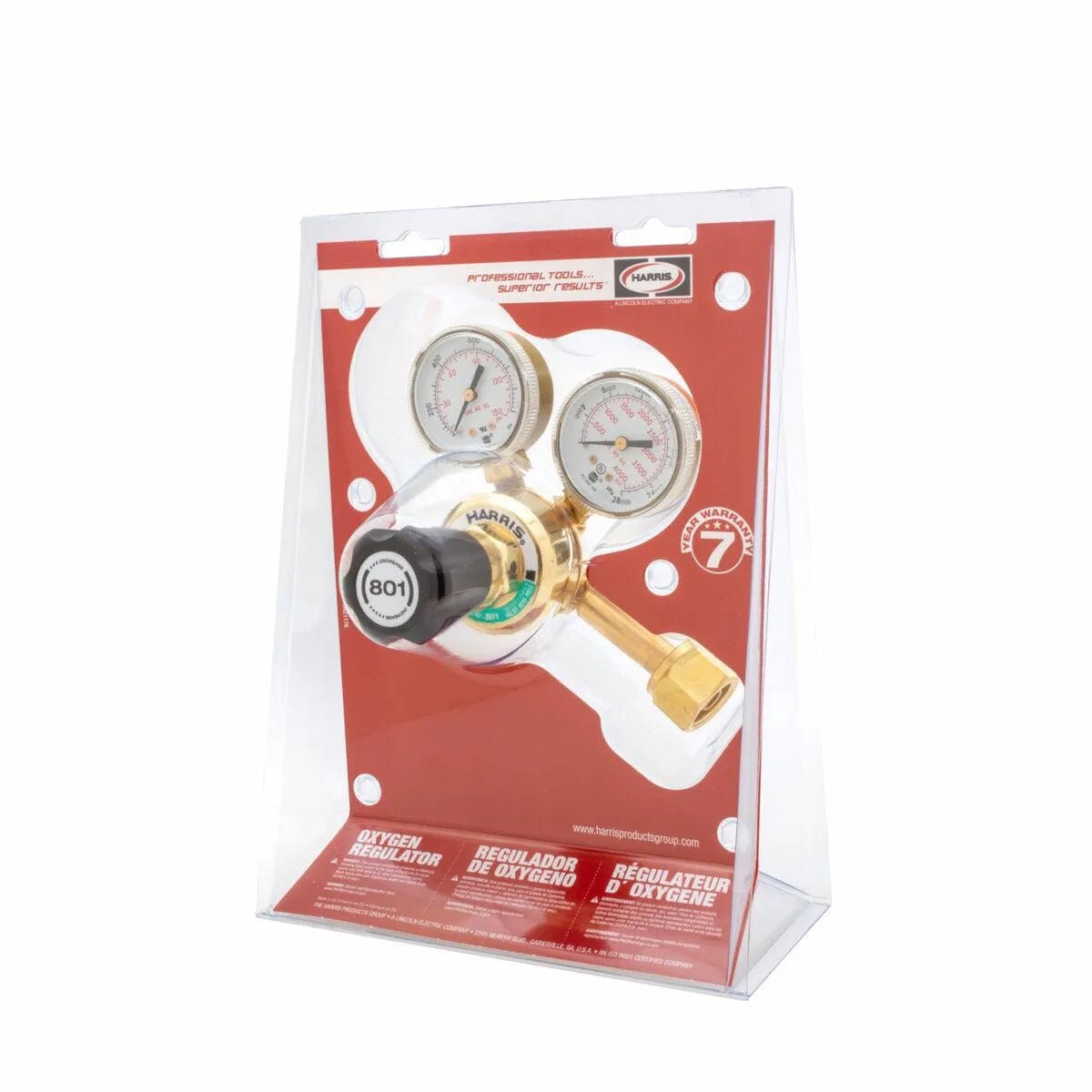

Harris Model 801 Single Stage medium duty Oxygen Regulator is designed to be compact, lightweight and rugged. It is perfect for most industrial cutting and welding applications. Harris Model 801 features a brass body, 2 in. steel dual scale gauges that are easy-to read, ABS plastic ergonomic adjusting knob for precise operation and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. It has 5/8 in. - 18 outlet connections. Conveniently packaged in clamshell for point-of-purchase display.
Features
- Compact, general purpose Regulator
- Designed for medium duty industrial cutting and welding applications
- Brass body and electroless nickel-plated zinc bonnet for longer service life
- Ergonomic ABS plastic knob for easy grip and precise adjustment
- 2 in. Gold painted steel dual scale easy-to-read gauges (psi/kPa)
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Neoprene diaphragm for better pressure control
Specifications
Equipment
| Adjusting Knob | ABS plastic |
| Body | Brass |
| Bonnet | Electroless nickel-plated zinc |
| Certification | CGA E-4 |
| Cv | 0.17 |
| Delivery Pressure Gauge (PSIG) | 150 |
| Delivery Pressure Range (PSIG) | 0 - 145 |
| Diaphragm | Neoprene |
| Duty | Medium |
| Gas / Gas Service | Oxygen |
| Gauges | 2 in. Steel dual scale (psi/kPa) |
| Inlet Connection | CGA 540 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Outlet Connection | 9/16 in. - 18 RH |
| Pressure Regulation PSIG/100 PSIG | 0.40 |
| Seat | PTFE Teflon® |
| Supply Pressure Gauge (PSIG) | 4000 |
Warranty
| Warranty | 7 Years |
