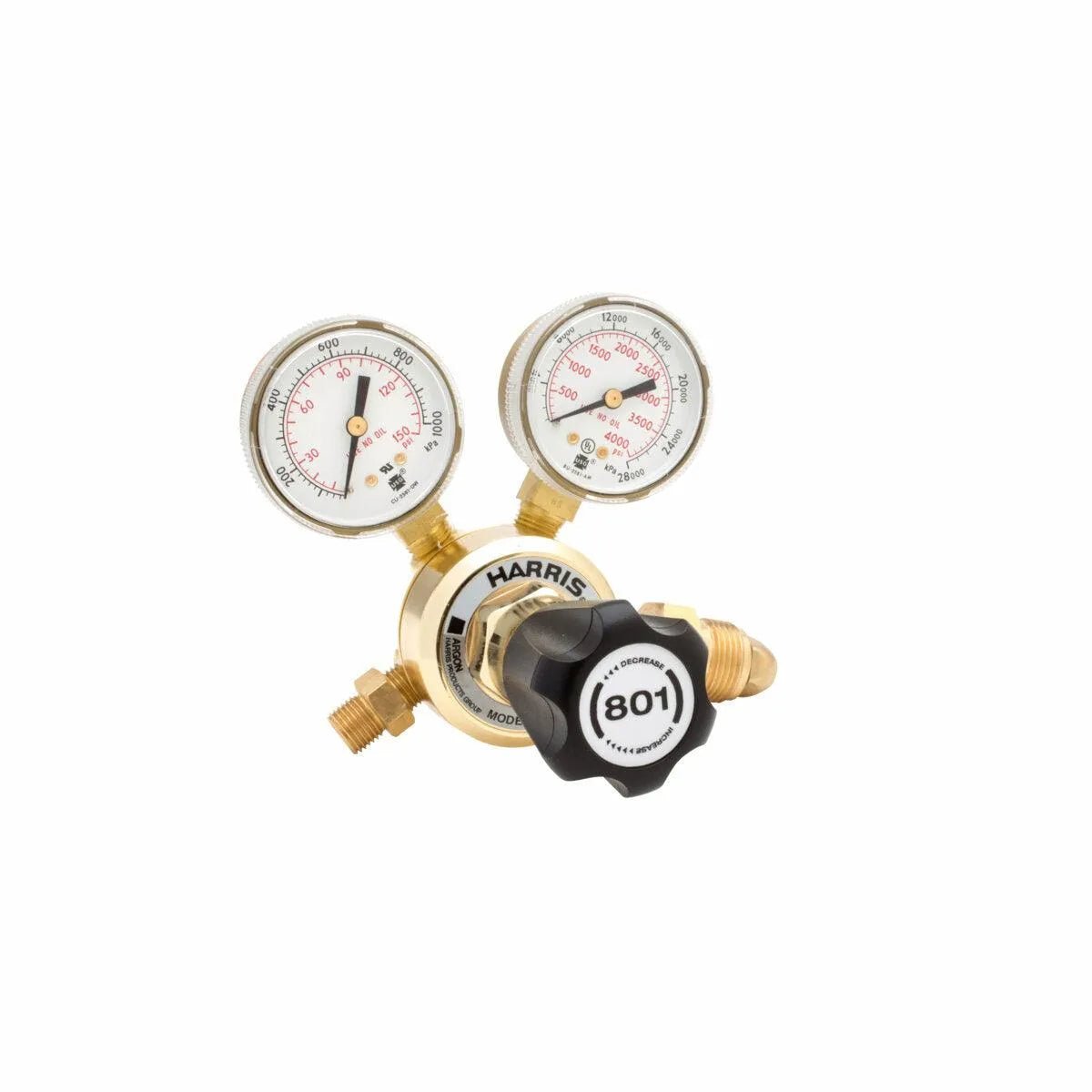

Harris 801-145-580 Single Stage Argon/Helium/Nitrogen Regulator - 3002236
Harris Model 801 Single Stage medium duty Argon/Helium/Nitrogen Regulator is designed to be compact, lightweight and rugged. It is perfect for most industrial cutting and welding applications. Harris Model 801 features a brass body, 2 in. steel dual scale gauges that are easy-to read, ABS plastic ergonomic adjusting knob for precise operation and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. It has 5/8 in. - 18 in. outlet connections.
Features
- Compact, general purpose Regulator
- Designed for medium duty industrial cutting and welding applications
- Brass body and electroless nickel-plated zinc bonnet for longer service life
- Ergonomic ABS plastic knob for easy grip and precise adjustment
- 2 in. Gold painted steel dual scale easy-to-read gauges (psi/kPa)
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Neoprene diaphragm for better pressure control
Specifications
Equipment
Adjusting Knob | ABS plastic |
Body | Brass |
Bonnet | Electroless nickel-plated zinc |
Certification | CGA E-4 |
Cv | 0.17 |
Delivery Pressure Gauge (PSIG) | 150 |
Delivery Pressure Range (PSIG) | 0 - 145 |
Diaphragm | Neoprene |
Duty | Medium |
Gas / Gas Service | Argon Helium Nitrogen |
Gauges | 2 in. Steel dual scale (psi/kPa) |
Inlet Connection | CGA 580 |
Maximum Inlet Pressure (PSIG) | 3000 |
Outlet Connection | 9/16 in. - 18RH |
Pressure Regulation PSIG/100 PSIG | 0.40 |
Seat | PTFE Teflon® |
Supply Pressure Gauge (PSIG) | 4000 |
Warranty
Warranty | 7 Years |
