Harris 801-15-300 Single Stage Acetylene Regulator - 3004195

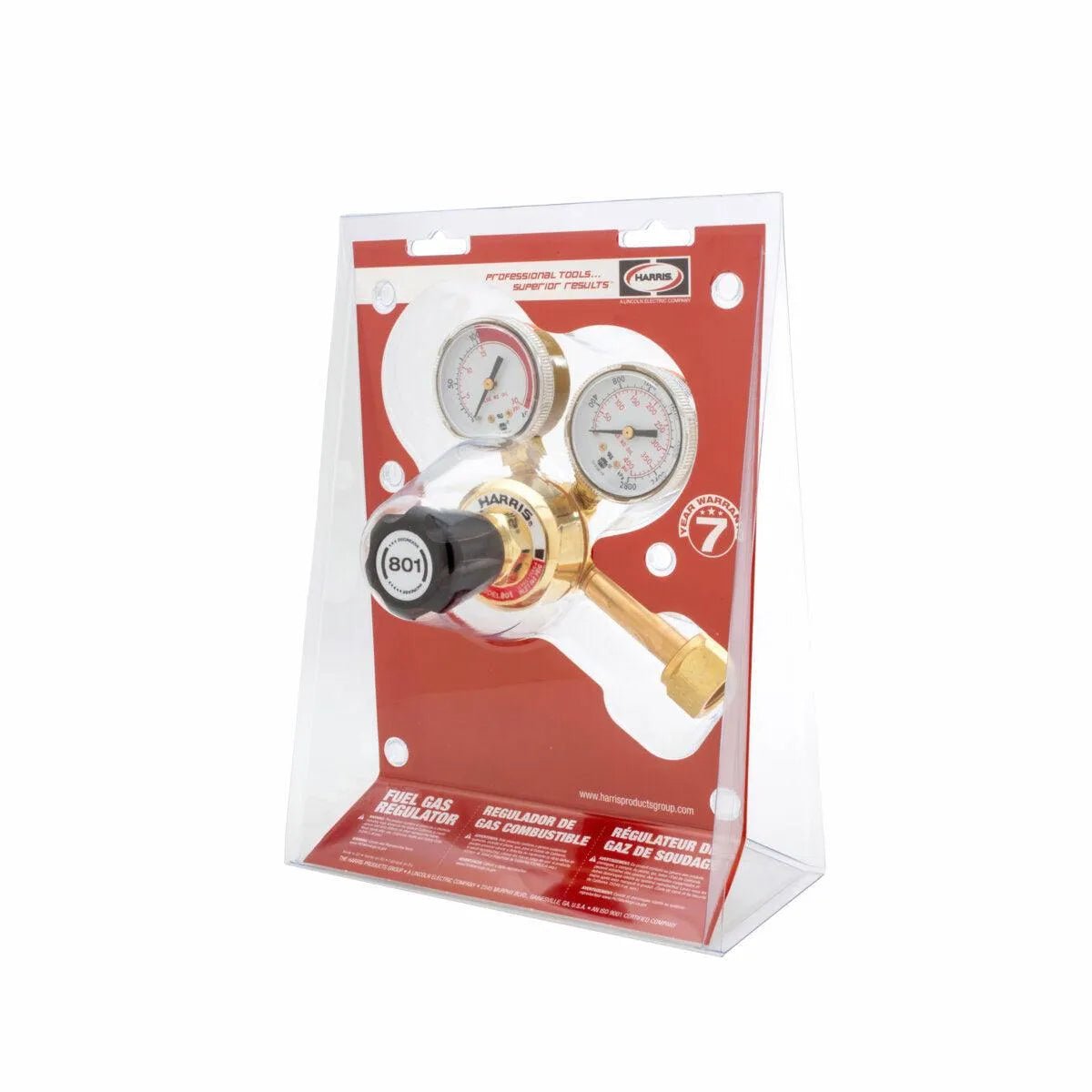

Model 801 single-stage medium duty regulator is designed to be compact, lightweight and rugged. It is perfect for most industrial cutting and welding applications. Model 801 features a brass body, 2 in. steel dual scale gauges that are easy-to read, ABS plastic ergonomic adjusting knob for precise operation and one-piece encapsulated seat design with internal filter and PTFE Teflon® seat. It has 5/8 in. - 18 outlet connections. Conveniently packaged in clamshell for point-of-purchase display.
Features
- Compact, general purpose regulator
- Designed for medium duty industrial cutting and welding applications
- Brass body and chrome-plated zinc bonnet for longer service life
- Ergonomic ABS plastic knob for easy grip and precise adjustment
- 2 in. Gold painted steel dual scale easy-to-read gauges (psi/kPa)
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
- Neoprene diaphragm for better pressure control
Specifications
Equipment
| Adjusting Knob | ABS plastic |
| Body | Brass |
| Bonnet | Electroless nickel-plated zinc |
| Certification | CGA E-4 |
| Cv | 0.17 |
| Delivery Pressure Gauge (PSIG) | 30RZ |
| Delivery Pressure Range (PSIG) | 0 - 15 |
| Diaphragm | Neoprene |
| Duty | Medium |
| Gas / Gas Service | Acetylene |
| Gauges | 2 in. Steel dual scale (psi/kPa) |
| Inlet Connection | CGA 300 |
| Maximum Inlet Pressure (PSIG) | 500 |
| Outlet Connection | 9/16 in. - 18 LH |
| Pressure Regulation PSIG/100 PSIG | 0.40 |
| Seat | PTFE Teflon® |
| Supply Pressure Gauge (PSIG) | 400 |
Warranty
| Warranty | 7 Years |
