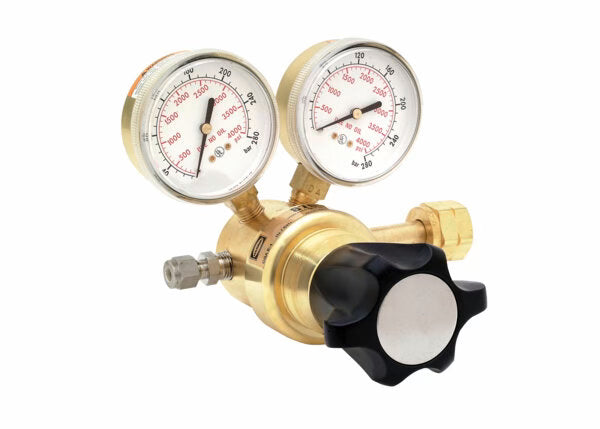

Harris 8700-800-540 Single Stage Regulator - 3200457
Model HP8700 is a Single Stage brass Regulator that is designed to operate on ultra high-pressure Cylinders up to 7500 PSIG. The Model HP8700 is suitable for high pressure testing charging accumulators and pressurizing struts for hydraulic systems and aircraft/heavy equipment.. This model features a brass body bonnet and dual scale (PSIG/bar) gauges ergonomic plastic knob for improved grip and ease of adjustment of the delivery pressure, and one-piece encapsulated seat that is design with internal filter and CTFE (Kel F) seat. It has a 1/4 in. NPT outlet with Stainless Steel 1/4 in. tube fitting.
Features
- Operates on high pressure Cylinders up to 7500 PSIG
- Brass Barstock body and bonnet and brass nozzle for longer service life
- Ergonomic ABS plastic knob for improved grip and precise adjustment
- 2.5 in. Brass Barstock dual scale easy-to-read gauges (psi/bar)
- One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PCTFE (Kel-F™) seat from particulate contamination
- Urethane diaphragm for greater flexibility
- 1/4 in. NPT outlet with Stainless Steel 1/4 in. tube fitting
- Suitable for high pressure testing, charging accumulators and pressurizing aircraft struts
- Conforms to CGA E-4 standard for gas pressure Regulators
