Harris 8700SS-1500-350 - 3200705 - Propane/Chlorine Regulator

SKU: 3200705
$1,300.22

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $59/mo — 24-Mo Term, No Hard Credit Check
Factory Direct
Free Shipping
Lowest Price
Designed for a wide range of pressure settings, these single-stage hydrogen/methane regulators are reccomended for use in petroleum field applications, research labratories for hydrogenation, catalytic reduction, accelerated age testing, calorimetric testing, component testing, and pressure charging applications. These regulators feature a rugged brass piston, which provides increased safety and reliability at high delivery pressures. A 10 micron inlet filter protects internal components.
Gas Type: Propane
Inlet: CGA 350
Outlet: 1/4" NPT outlet with stainless steel 1/4" tube fitting
Overview

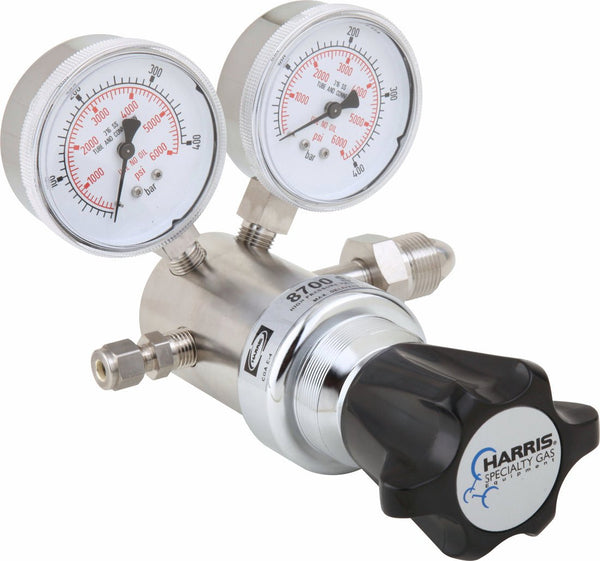

Harris 8700SS-1500-350 HP Single Stage Hydrogen/Methane Regulator - 3200705

Model HP8700SS is a single-stage stainless steel regulator that is designed to operate on ultra high-pressure cylinders up to 7500 psig. The Model HP8700SS is suitable for high pressure testing charging accumulators and pressurizing struts for hydraulic systems and aircraft/heavy equipment.. This model features a stainless steel body, fittings and gauges (psi/bar) and chrome-plated brass bonnet, ergonomic plastic knob for improved grip and ease of adjustment of the delivery pressure, and one-piece encapsulated seat that is design with internal filter and CTFE (Kel F™) seat. It has a 1/4" NPT outlet with stainless steel 1/4" tube fitting.

Features
  • Operates on high pressure cylinders up to 7500 psig
  • Stainless steel body and fittings and chrome-plated brass bonnet for longer service life
  • Ergonomic ABS plastic knob for improved grip and precise adjustment
  • 2.5" Stainless steel dual scale easy-to-read gauges (psi/bar)
  • One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PCTFE (Kel-F™) seat from particulate contamination
  • Urethane diaphragm for greater flexibility
  • 1/4" NPT outlet with stainless steel 1/4" tube fitting
  • Suitable for high pressure testing, charging accumulators and pressurizing aircraft struts
  • Conforms to CGA E-4 standard for gas pressure regulators
Specifications

Equipment

Adjusting Knob ABS plastic
Body 300 series stainless steel barstock
Bonnet Chrome-plated brass barstock
Capacity Ultra high-pressure
Certification CGA E-4
Construction Stainless Steel
Cv 0.08
Delivery Pressure Gauge (PSIG) 2000
Delivery Pressure Range (PSIG) 0 - 1500
Diaphragm Urethane
Filter Stainless steel – 10 micron
Gas / Gas Service Hydrogen, Methane
Gauges 2.5” Stainless steel dual scale (psi/bar)
Inlet Connection CGA 350
Maximum Inlet Pressure (PSIG) 3000
Nozzle 316L Stainless Steel
Outlet Fittings ¼” NPT outlet with stainless steel ¼” tube fitting
Pressure Regulation PSIG/100 PSIG 3.3
Recommended Items/Accessories Panel Mount Nut - PN 9100887
Seat PCTFE (Kel-F)™
Seat Return Spring PH17-7 stainless steel
Supply Pressure Gauge (PSIG) 4000

Warranty

Warranty 1 Year
A table labeled Materials lists parts and their materials: body (300 series stainless steel), bonnet (chrome plated brass barstock), diaphragm (urethane), and more, on a blue and gray background.
A table titled HP 8700SS ORDERING INFORMATION lists part numbers, model numbers, gases, max inlet PSIG, delivery pressure range PSIG, delivery pressure gauge PSIG, and supply pressure gauge PSIG for various gas regulators.
