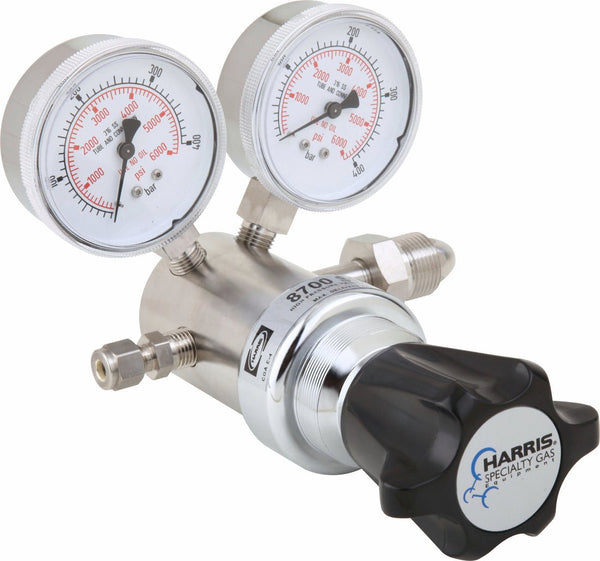

Harris 8700SS-1500-580 - 3200707 - Argon/Krypton Regulator

SKU: 3200707
$1,300.22

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $59/mo — 24-Mo Term, No Hard Credit Check
Factory Direct
Free Shipping
Lowest Price
Designed for a wide range of pressure settings, these single-stage regulators are reccomended for use in petroleum field applications, research labratories for hydrogenation, catalytic reduction, accelerated age testing, calorimetric testing, component testing, and pressure charging applications. These regulators feature a rugged brass piston, which provides increased safety and reliability at high delivery pressures. A 10 micron inlet filter protects internal components.
Gas Type: Argon
Inlet: CGA 580
Outlet: 1/4" NPT outlet with 1/4" stainless steel tube fitting
Overview
Harris 8700SS-1500-580 HP Single Stage Argon/Nitrogen Regulator - 3200707

Model HP8700SS is a single-stage stainless steel regulator that is designed to operate on ultra high-pressure cylinders up to 7500 psig. The Model HP8700SS is suitable for high pressure testing charging accumulators and pressurizing struts for hydraulic systems and aircraft/heavy equipment.. This model features a stainless steel body, fittings and gauges (psi/bar) and chrome-plated brass bonnet, ergonomic plastic knob for improved grip and ease of adjustment of the delivery pressure, and one-piece encapsulated seat that is design with internal filter and CTFE (Kel F™) seat. It has a 1/4" NPT outlet with stainless steel 1/4" tube fitting.

Features
  • Operates on high pressure cylinders up to 7500 psig
  • Stainless steel body and fittings and chrome-plated brass bonnet for longer service life
  • Ergonomic ABS plastic knob for improved grip and precise adjustment
  • 2.5" Stainless steel dual scale easy-to-read gauges (psi/bar)
  • One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PCTFE (Kel-F™) seat from particulate contamination
  • Urethane diaphragm for greater flexibility
  • 1/4" NPT outlet with stainless steel 1/4" tube fitting
  • Suitable for high pressure testing, charging accumulators and pressurizing aircraft struts
  • Conforms to CGA E-4 standard for gas pressure regulators
  • Self-relieving for safety

Specifications

Equipment

Adjusting Knob ABS plastic
Body 300 series stainless steel barstock
Bonnet Chrome-plated brass barstock
Capacity Ultra high-pressure
Certification CGA E-4
Cv 0.08
Delivery Pressure Range (PSIG) 0 - 1500
Diaphragm Urethane
Filter Stainless steel – 10 micron
Gas / Gas Service Argon
Helium
Krypton
Neon
Nitrogen
Xenon
Gauges 2.5" Stainless steel dual scale (psi/bar)
Inlet Connection CGA 580 is self-venting
Maximum Inlet Pressure (PSIG) 3000
Nozzle 316L Stainless Steel
Outlet Connection 1/4" NPT outlet with 1/4" stainless steel tube fitting
Pressure Regulation PSIG/100 PSIG 3.3
Recommended Items/Accessories Panel Mount Nut - PN 9100887
Seat PCTFE (Kel-F)™
Seat Return Spring PH17-7 stainless steel

Warranty

Warranty 1 Year

A table titled Materials for the Harris 8700SS-3000-000 - 3200701 HP Single Stage Pressure Regulator lists components like Body, Bonnet, Diaphragm, Nozzle, Seat, Filter, Adjusting Knob, and Outlet with materials such as stainless steel and brass.


A table titled Harris 8700SS-3000-000 - 3200701 HP Single Stage Pressure Regulator Ordering Information lists part numbers, model numbers, gas types, max inlet and delivery pressures, and gauge ranges for this stainless steel single stage regulator.


A comparison chart displays specs and dimensions for the Harris 8700SS-3000-000 - 3200701 HP Single Stage Pressure Regulator, covering weights, pressure rise, Cv values, and technical diagrams for both non-venting and self-venting models.
