Model 9200-125-320 general purpose heavy duty neoprene diaphragm two-stage carbon dioxide regulator
Gas Type: Co2
Inlet: CGA 320
Outlet: 5/8"" - 18 RH (F)
Overview

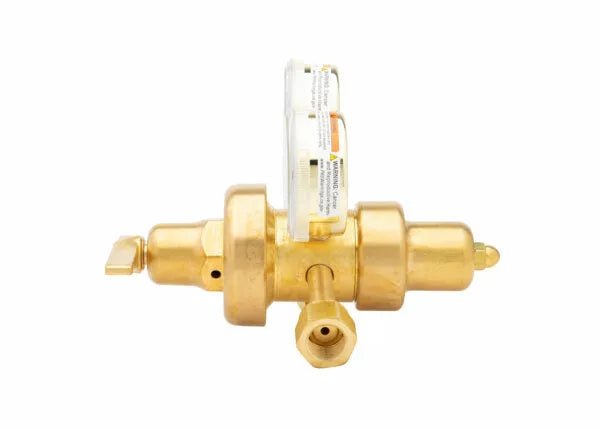

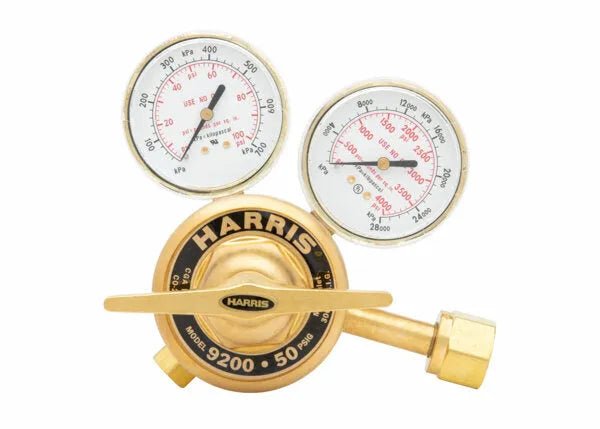

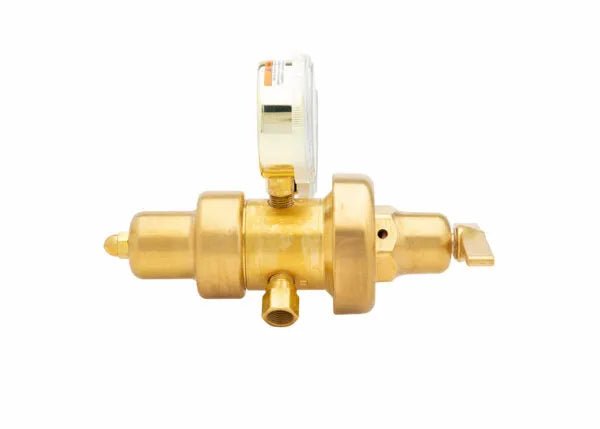

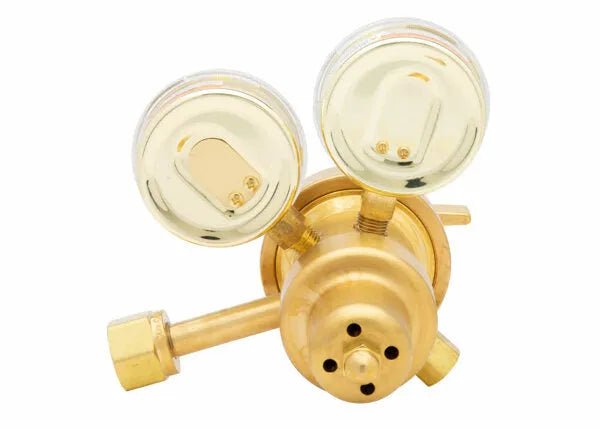

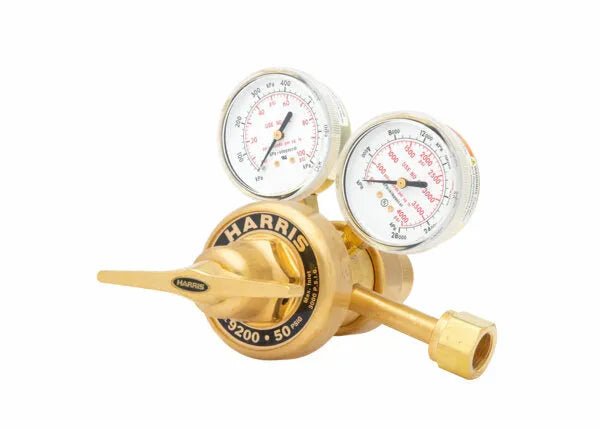

Harris 9200-125-320 Two Stage Carbon dioxide Regulator - 3302274

Model 9200 carbon dioxide regulator is a standard for general purpose laboratory, industrial and welding applications. This heavy duty model is designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. Model 9200 features a neoprene diaphragm, self-reseating relief valve, one-piece encapsulated seat design with internal filter and Teflon seat and "T" adjustment screw bar handle.

Features
  • Standard heavy duty, Two Stage Regulator for general purpose laboratory, industrial and welding applications
  • Designed for use when constant delivery pressure is required over a wide range of inlet pressures
  • Brass body and bonnet for longer service life
  • Easy-to-operate brass "T" screw bar handle
  • 2.5" Brass dual scale (psi/bar) easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • Neoprene diaphragm for better pressure control
  • Use for welding applications where neoprene diaphragms are acceptable
  • Equipped with tamper proof, self-reseating, internal safety relief valve
Specifications

Equipment

Adjusting Screw Brass ""T"" screw bar
Body Brass
Bonnet Brass
Certification CGA E-4
Cv 0.37
Delivery Pressure Gauge (PSIG) 200
Delivery Pressure Range (PSIG) 0-125
Duty Heavy
Equipped With Tamper proof, self-reseating internal high pressure safety valve
Gas / Gas Service Carbon dioxide
Gauges 2.5"" Brass dual scale (psi/bar)
Inlet Connection CGA 320
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 5/8"" - 18 RH (F)
Pressure Regulation PSIG/100 PSIG 0.03
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4000

Application

Typical Application Construction
Mining
Railroad Maintenance
Automotive
General Fabrication
Heavy Equipment
Heavy Fabrication
Marine Applications
Marine Fabrication & Repair
NACE Applications
Offshore
Oil & Gas

Warranty

Warranty 7 Years
