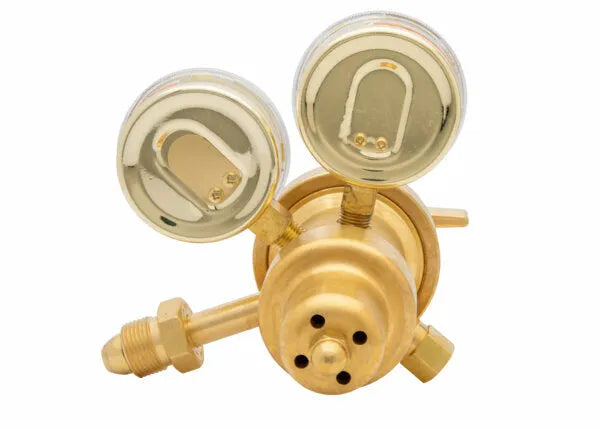

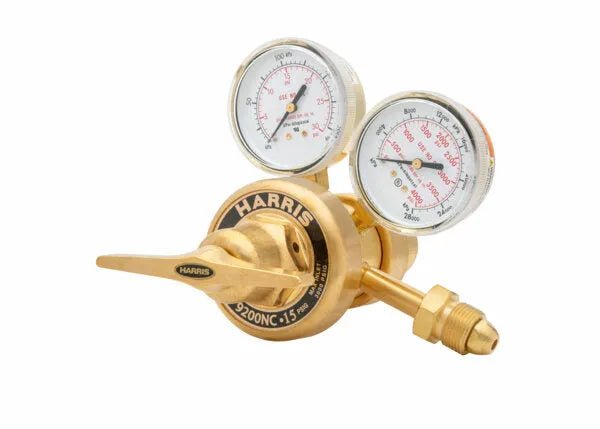

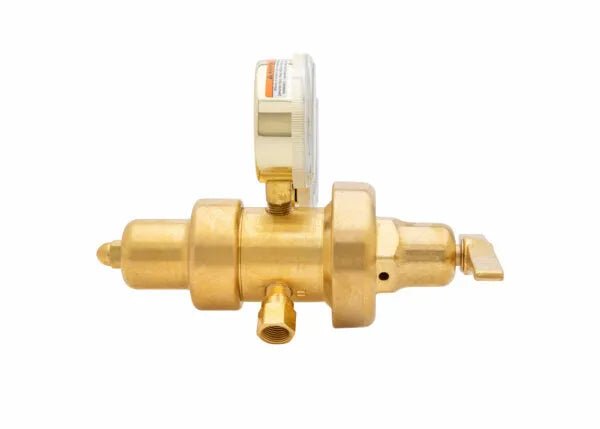

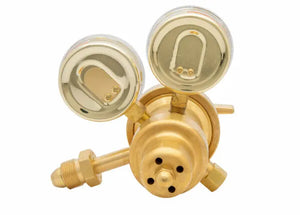

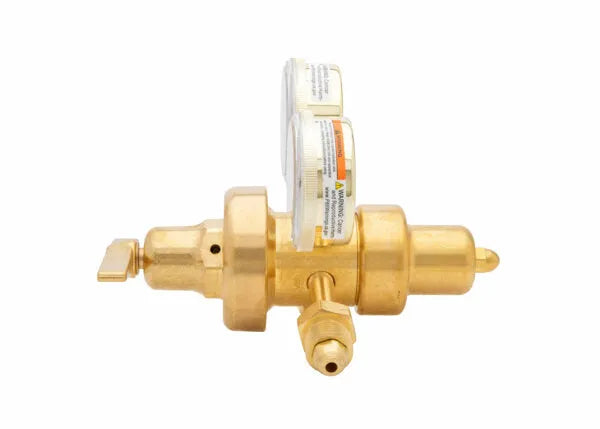

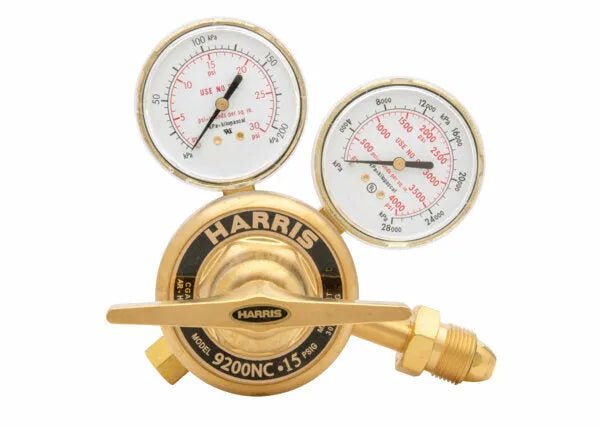

Harris 9200-250-580 Two Stage Argon/Helium/Nitrogen Regulator - 3302219

SKU: 3302219
$554.97 $674.89
Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.

More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.
Model 9200-250-580 general-purpose heavy duty neoprene diaphragm two-stage regulator
Gas Type: Argon, Helium, Nitrogen
Inlet: CGA 580
Outlet: 5/8 in. - 18 RH (F)
Overview
Harris 9200-250-580 Two Stage Argon/Helium/Nitrogen Regulator - 3302219

Model 9200 Argon/Helium/Nitrogen regulator is a standard for general purpose laboratory, industrial and welding applications. This heavy duty model is designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. Model 9200 features a neoprene diaphragm, self-reseating relief valve, one-piece encapsulated seat design with internal filter and Teflon seat and T-screw bar handle.

Features
  • For general purpose laboratory, industrial and welding applications
  • Designed for use when constant delivery pressure is required over a wide range of inlet pressures
  • Brass body and bonnet for longer service life
  • Easy-to-operate brass T-screw bar adjusting handle
  • 2.5 in. Brass dual scale easy-to-read gauges (psi/bar)
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • Neoprene diaphragm for better pressure control
  • Use for welding applications where neoprene diaphragms are acceptable
  • Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
Specifications

Equipment

Adjusting Screw Brass T-screw bar
Body Brass
Bonnet Brass
Certification CGA E-4
Cv 0.37
Delivery Pressure Gauge (PSIG) 400
Delivery Pressure Range (PSIG) 0 - 200
Diaphragm Neoprene
Duty Heavy
Equipped With Tamper proof, self-reseating internal high pressure safety valve
Gas / Gas Service Argon
Helium
Nitrogen
Gauges 2.5 in. Brass dual scale (psi/bar)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 5/8 in. - 18 RH (F)
Pressure Regulation PSIG/100 PSIG 0.03
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4000

Warranty

Warranty 7 Years
