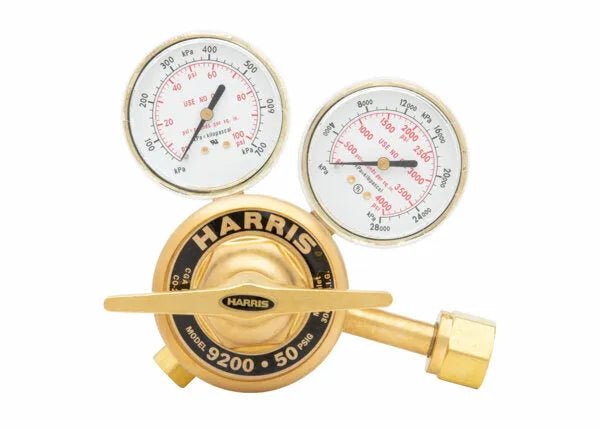

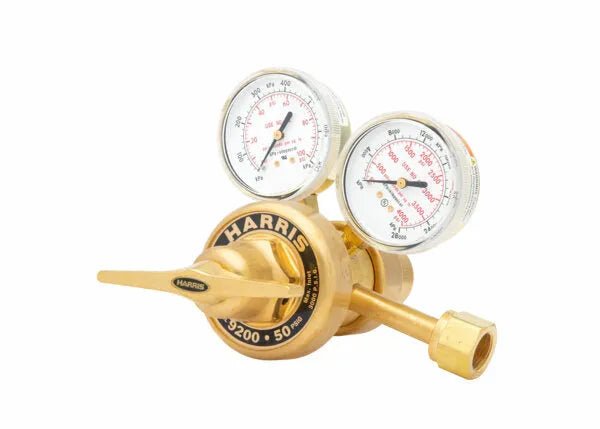

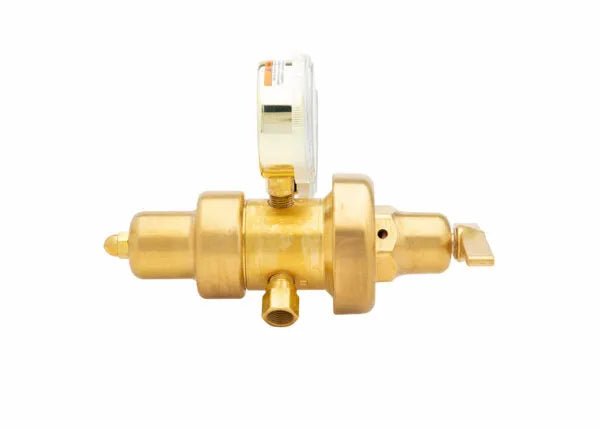

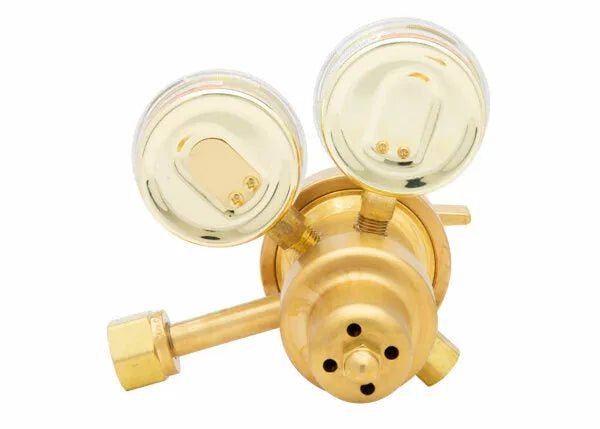

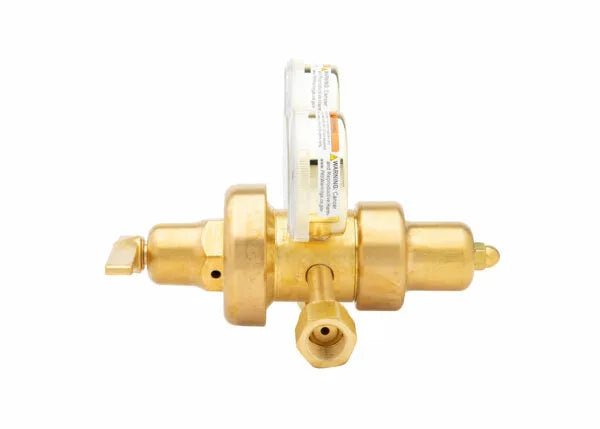

Harris 9200-50-320 Two Stage Carbon dioxide Regulator - 3302273
Model 9200 is a standard for general purpose laboratory, industrial and welding applications. This heavy duty model is designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. Model 9200 features a neoprene diaphragm, self-reseating relief valve, one-piece encapsulated seat design with internal filter and Teflon seat and "T" adjustment screw bar handle.
Features
- Standard heavy duty, Two Stage Regulator for general purpose laboratory, industrial and welding applications
- Designed for use when constant delivery pressure is required over a wide range of inlet pressures
- Brass body and bonnet for longer service life
- Easy-to-operate brass "T" screw bar handle
- 2.5" Brass dual scale (psi/bar) easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Neoprene diaphragm for better pressure control
- Use for welding applications where neoprene diaphragms are acceptable
- Equipped with tamper proof, self-reseating, internal safety relief valve
Specifications
Equipment
| Adjusting Screw | Brass ""T"" screw bar |
| Body | Brass |
| Bonnet | Brass |
| Certification | CGA E-4 |
| Cv | 0.37 |
| Delivery Pressure Gauge (PSIG) | 100 |
| Delivery Pressure Range (PSIG) | 0-50 |
| Duty | Heavy |
| Equipped With | Tamper proof, self-reseating internal high pressure safety valve |
| Gas / Gas Service | Carbon dioxide |
| Gauges | 2.5"" Brass dual scale (psi/bar) |
| Inlet Connection | CGA 320 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Outlet Connection | 5/8"" - 18 RH (F) |
| Pressure Regulation PSIG/100 PSIG | 0.03 |
| Seat | PTFE Teflon® |
| Supply Pressure Gauge (PSIG) | 4000 |
Warranty
| Warranty | 7 Years |
